Installation - Assembly Procedures
Install Endcaps
NOTE: This unit comes with a foot end
body fan. Instructions for installing the fan
are included with the body fan kit. Follow
those instructions to install the body fan.

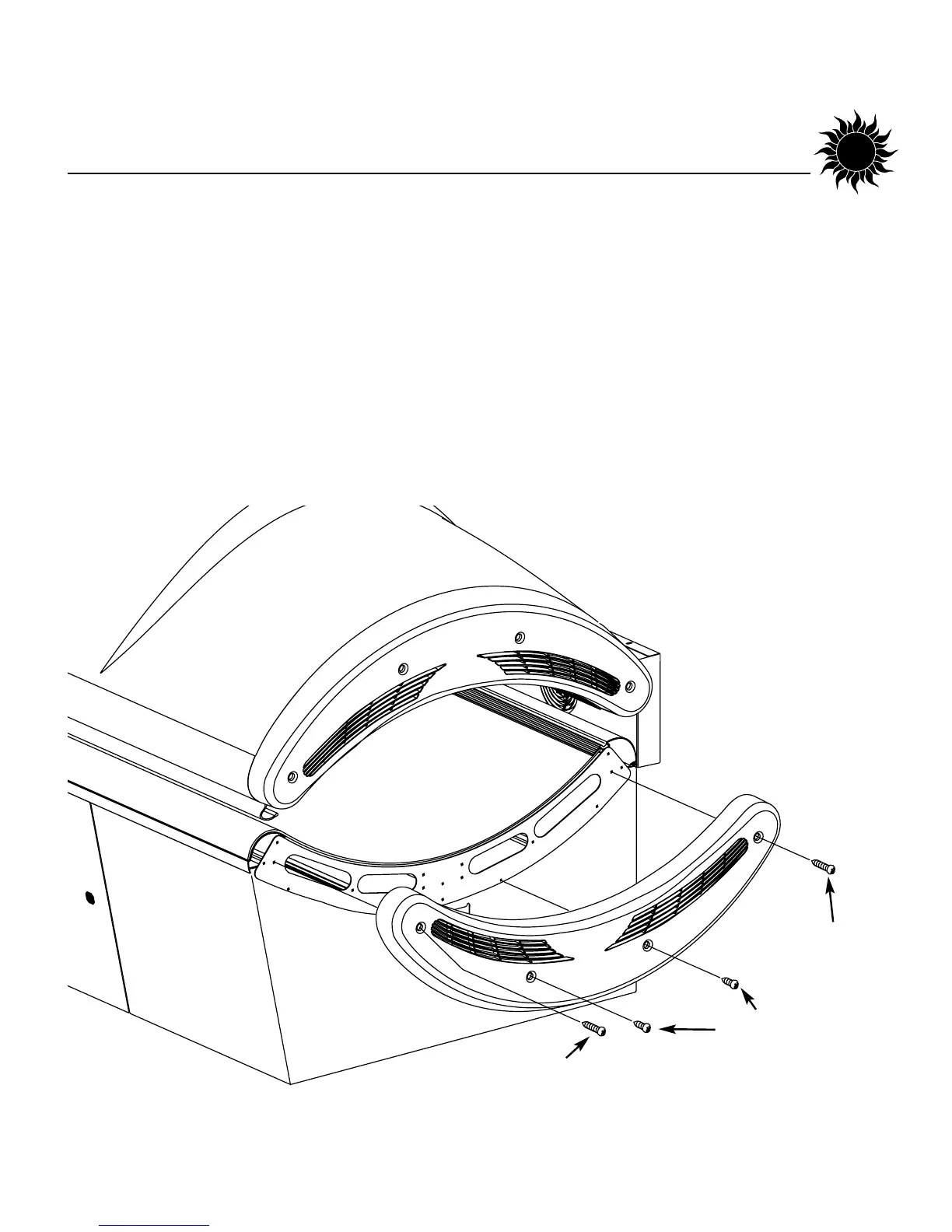

Put the head end endcap (the one without
slots on top) in place and secure with two
#10 x 1/2” screws in the two middle
holes. Use two #10 x 1” screws in the two
outer holes.
1/2” SCREWS
1” SCREW
1” SCREW
