Operating Instructions
Non-Contact Safety System CES-A-AEA-02B/CES-A-AEA-04B
26
(translation of the original operating instructions) 2084606-19-09/17

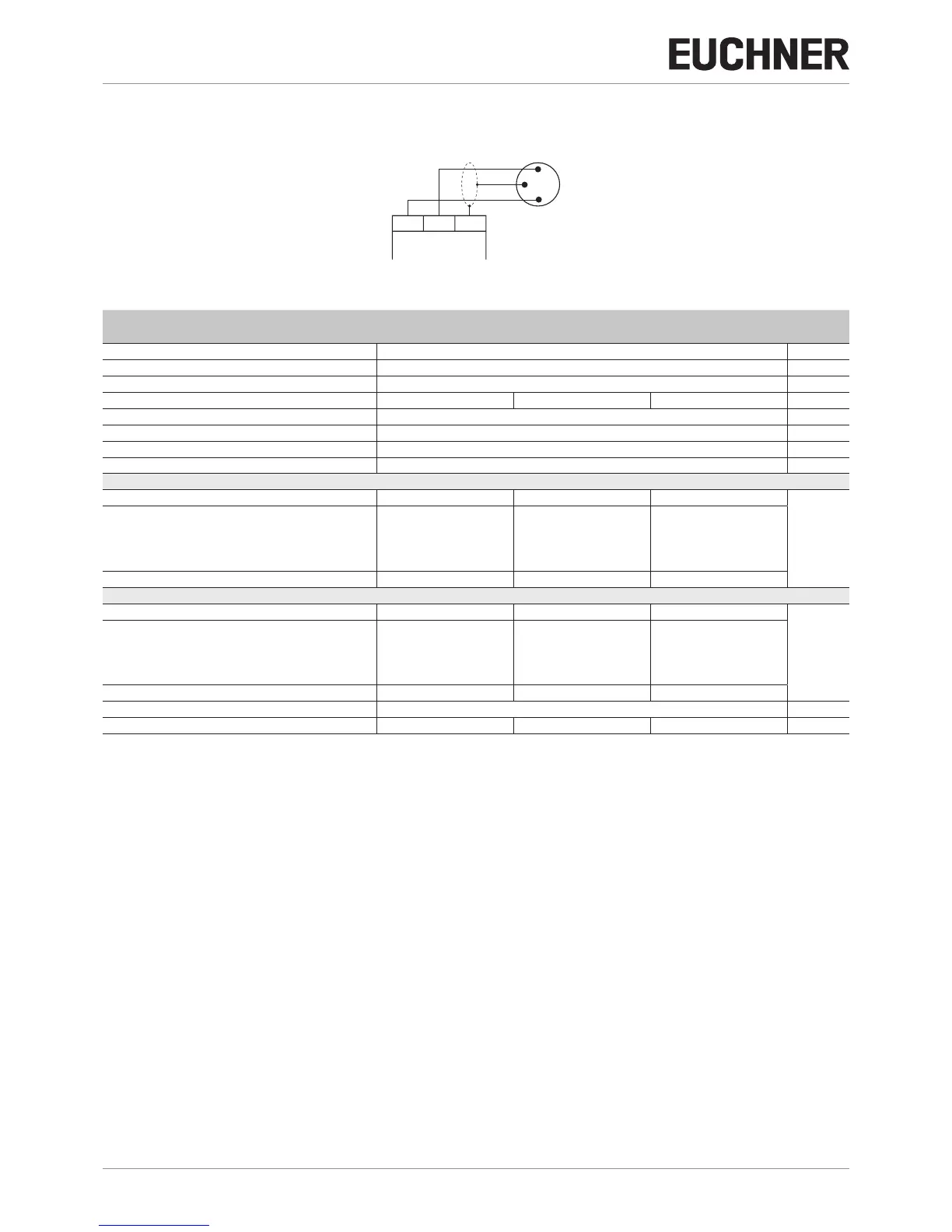

Terminal assignment
Read head with plug connector
H11H12 SH1
1
3
4
BN
WH
Shield
View on the plug
connector of the
read head
Evaluation unit
CES-A-AEA-…
Technical data
Parameter Value Unit
min. typ. max.
Housing material Fortron, reinforced thermoplastic, fully encapsulated
Dimensions 42x25x12 mm
Weight (incl. 10 m cable) 0.3 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67/IP69K
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
In combination with actuator CES-A-BBA on evaluation unit CES-A-AEA-…
Assured switch-off distance S
ar
- - 32
mm
Operating distance for center offset m=0
1)
- Switch-on distance - 15 -
- Assured switch-on distance S
ao
10 - -
- Switching hysteresis 0.5 2 -
Minimum distance s for side approach direction - 3 -
In combination with actuator CES-A-BDA on evaluation unit CES-A-AEA-…
Assured switch-off distance S
ar
- - 33
mm
Operating distance for center offset m=0
2)
- Switch-on distance - 16 -
- Assured switch-on distance S
ao
11 - -
- Switching hysteresis 0.5 2 -
Minimum distance s for side approach direction - 4 -
Connection M8 plug connector (snap-action and screw terminals), 3-pin
Connection cable - - 25 m
1) These values apply to surface installation of the read head and the actuator.
2) These values apply to non-metallic surrounding material. Other materials on request.
