2084606-19-09/17 (translation of the original operating instructions)
Operating Instructions
Non-Contact Safety System CES-A-AEA-02B/CES-A-AEA-04B
EN
11.2. Evaluation unit CES-A-AEA-04B
Ì Housing for rail mounting, IP20
Ì Relay output
Ì Four read heads can be connected

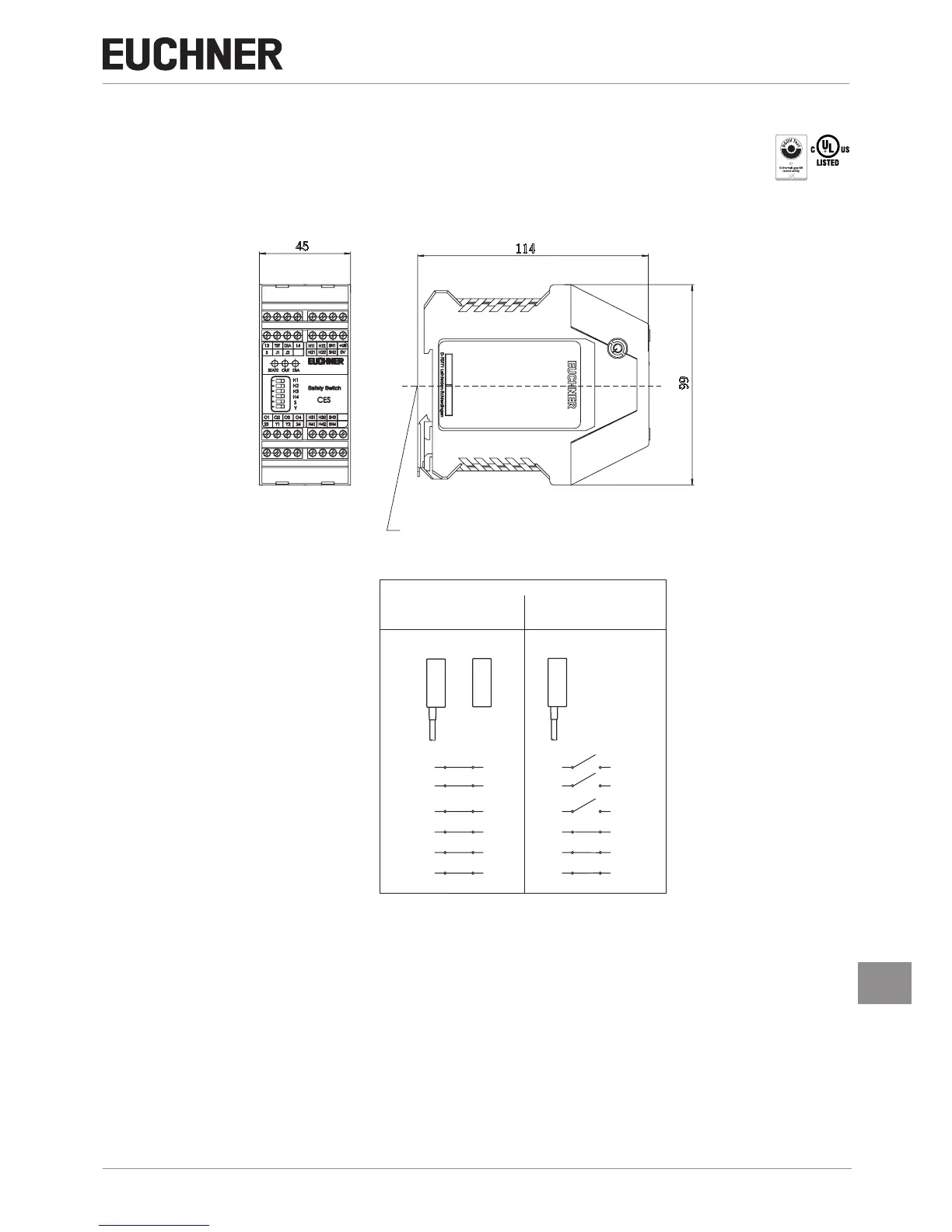

Dimension drawing
45
99
114
Suitable for 35mm mounting rail according to EN60715
Switching characteristics
Ì Two safety outputs
(relay outputs)
Ì Four door monitoring outputs
(semiconductor outputs, not
safety outputs)
Approvals
Safety guard
closed
(all actuators detected)
open
(e.g. actuator 1 not in the operating
distance)
Read head 1 Actuator 1 Read head 1
13
14
23
24
24 VO1
13
14
23
24
24
VO
1
24 VO2 24
VO
2
24 VO3 24
VO
3
24 VO4 24
VO
4
