11.8. Actuator CES-A-BBA/CES-A-BCA
Ì Cube-shaped design 42x25mm
Ì CES-A-BCA suitable for use in aggressive media (e.g. acids, alkalis)
Ì In combination with read head CES-A-LNA…/CES-A-LCA…

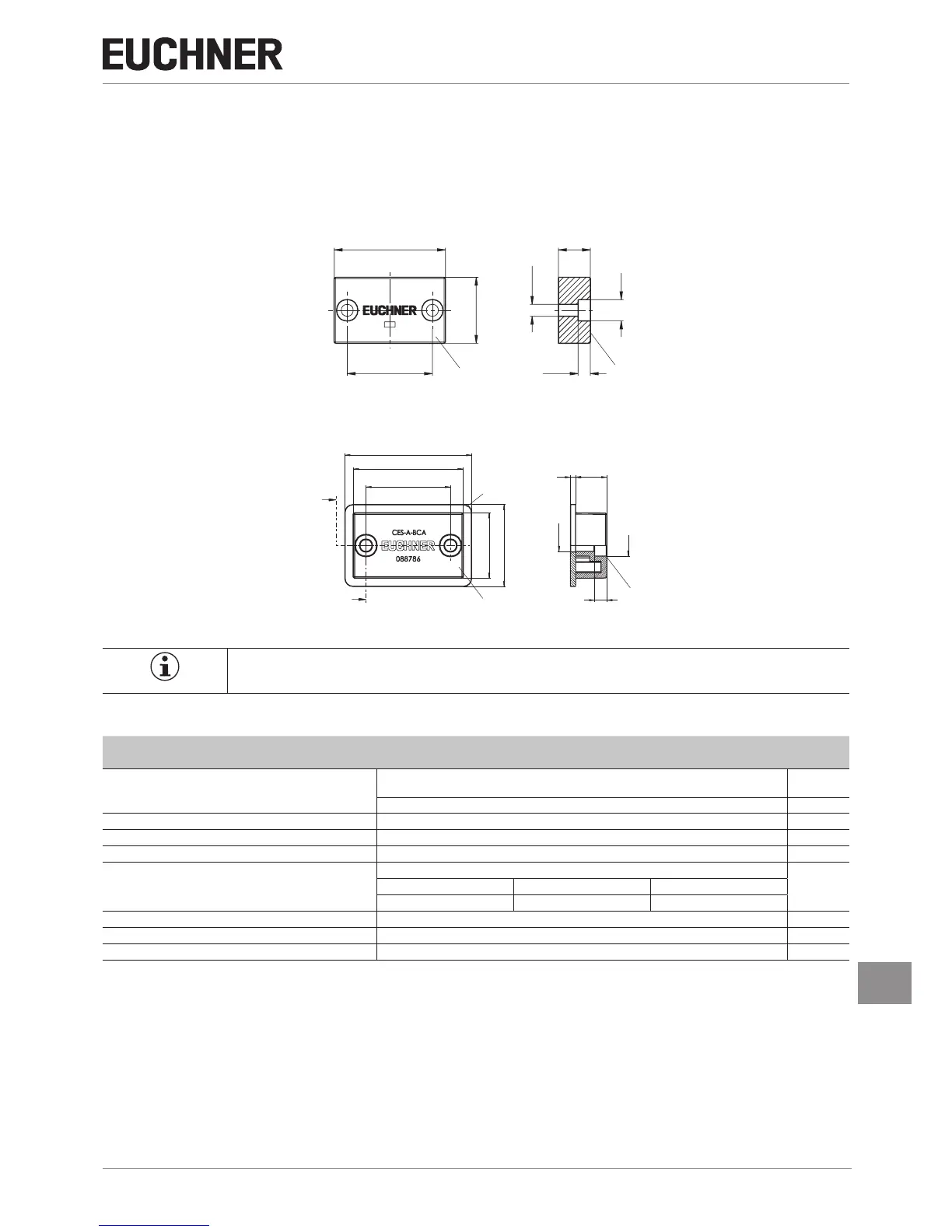

Dimension drawing for CES-A-BBA
CES-A-B 071840
25
ø8
ø4,5
42
32
±0,1
12
4,6
Active face
Active face
Two M4x14 safety screws
included
Dimension drawing for CES-A-BCA
42
32
± 0,10
25
31
48
∅ 4,5
∅
8
212
4,6
Active face
Active face
Two M4x14 safety screws
included
Flat seal
NOTICE
CES-A-BCA: The at seal provided must be used during assembly.
Technical data
Parameter
Value
Unit
min. typ. max.
Housing material
- CES-A-BBA Fortron, reinforced thermoplastic, fully encapsulated
- CES-A-BCA PE-HD plastic without reinforcement, fully encapsulated
Flat seal material (CES-A-BCA only) Fluororubber 75 FPM 4100
Dimensions 42x25x12 mm
Weight 0.02 kg
Ambient temperature
°C
- CES-A-BBA -25 - +70
- CES-A-BCA -25 - +50
Degree of protection IP67/IP69K
Installation position Active face opposite read head
Power supply Inductive via read head
