Operating Instructions Safety Systems
MGB-L1…-AR.-… / MGB-L2…-AR.-… and MGB-L1…-AP.-… / MGB-L2…-AP.-…
22
(Translation of the original operating instructions) 2119167-06-10/20
3 mm
9
10
11
OPEN
CLOSED
9
Remove cover and undo hexagon socket screw.
AT
Change door handle by 90° in clockwise direction and re-t.
A
Tighten hexagon socket head screw to 3 Nm.
AL
State after repositioning.

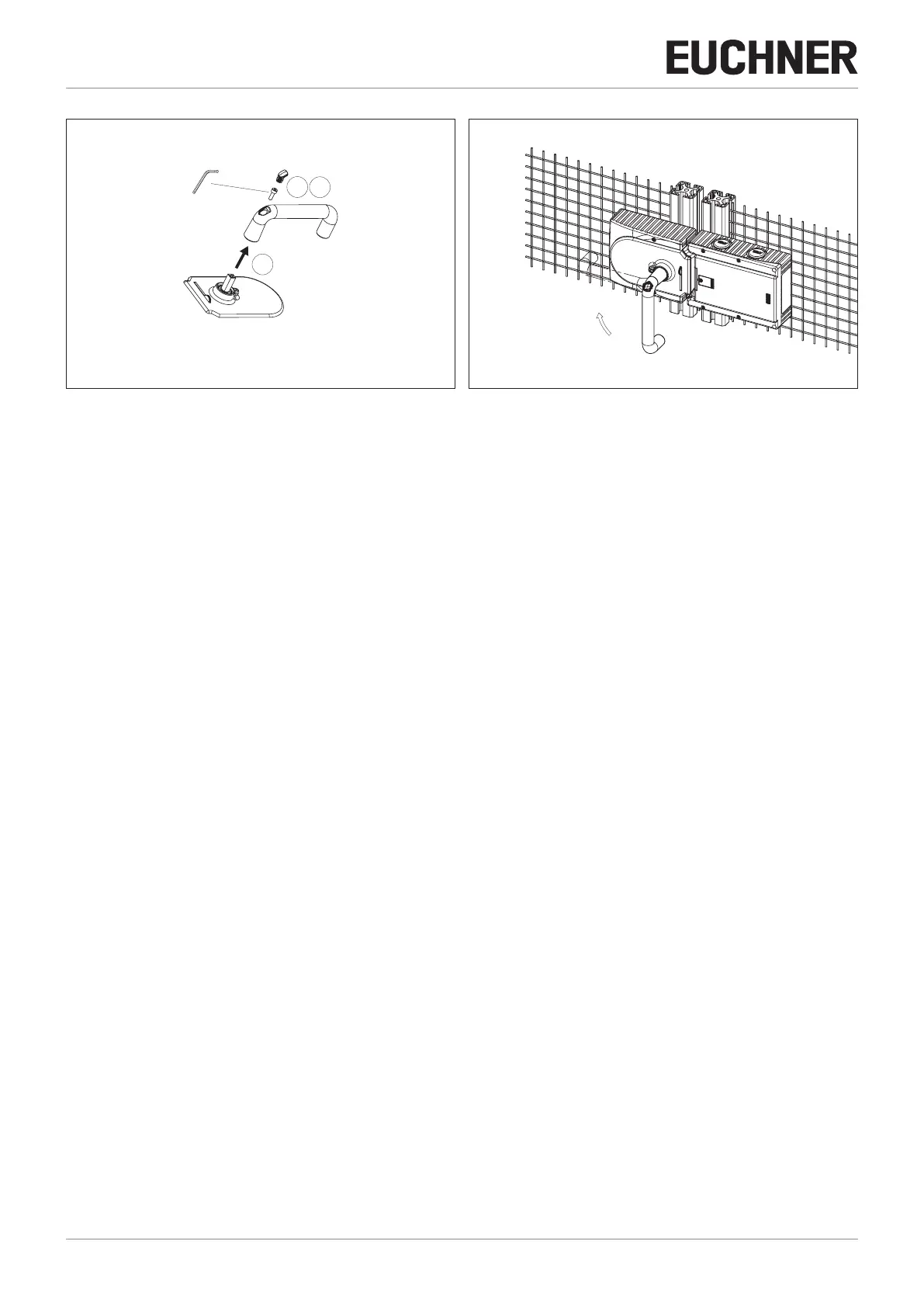

Figure 13: Changing actuating direction, steps
9
and
A
Figure 14: Changing actuating direction, nal state
11. Protection against environmental effects
Lasting and correct safety function requires that the system must be protected against foreign bodies such as swarf, sand,
blasting shot, etc., which can become lodged in the locking and handle modules. For this purpose a suitable installation
position should be selected.
Cover device during painting work!
