EUCHNER MGB-L1-APA-AP4A1-S1-R-158117 User Manual

31
2119167-06-10/20 (Translation of the original operating instructions)
Operating Instructions Safety Systems
MGB-L1…-AR.-… / MGB-L2…-AR.-… and MGB-L1…-AP.-… / MGB-L2…-AP.-…
EN
12.10. Operation as separate device
GND
+24 V DC
Connected
load
Guard locking
Controller
Safety
Outputs Monitoring Outputs
Safety
Inputs
Guard Locking
||
FI1B
X4:2
IMP1
X3:7
FO1B
X4:5
UA
X3:4
OI
X5:4
IMP2
X3:6
FI1A
X4:1
NC
X3:8
FO1A
X4:4
OD
X5:1
RST
X4:6
OT
X5:2
OL
X5:3
UB
X5:6
0V
X5:5
0V
X3:5
MGB
-F1 -F2
-S1

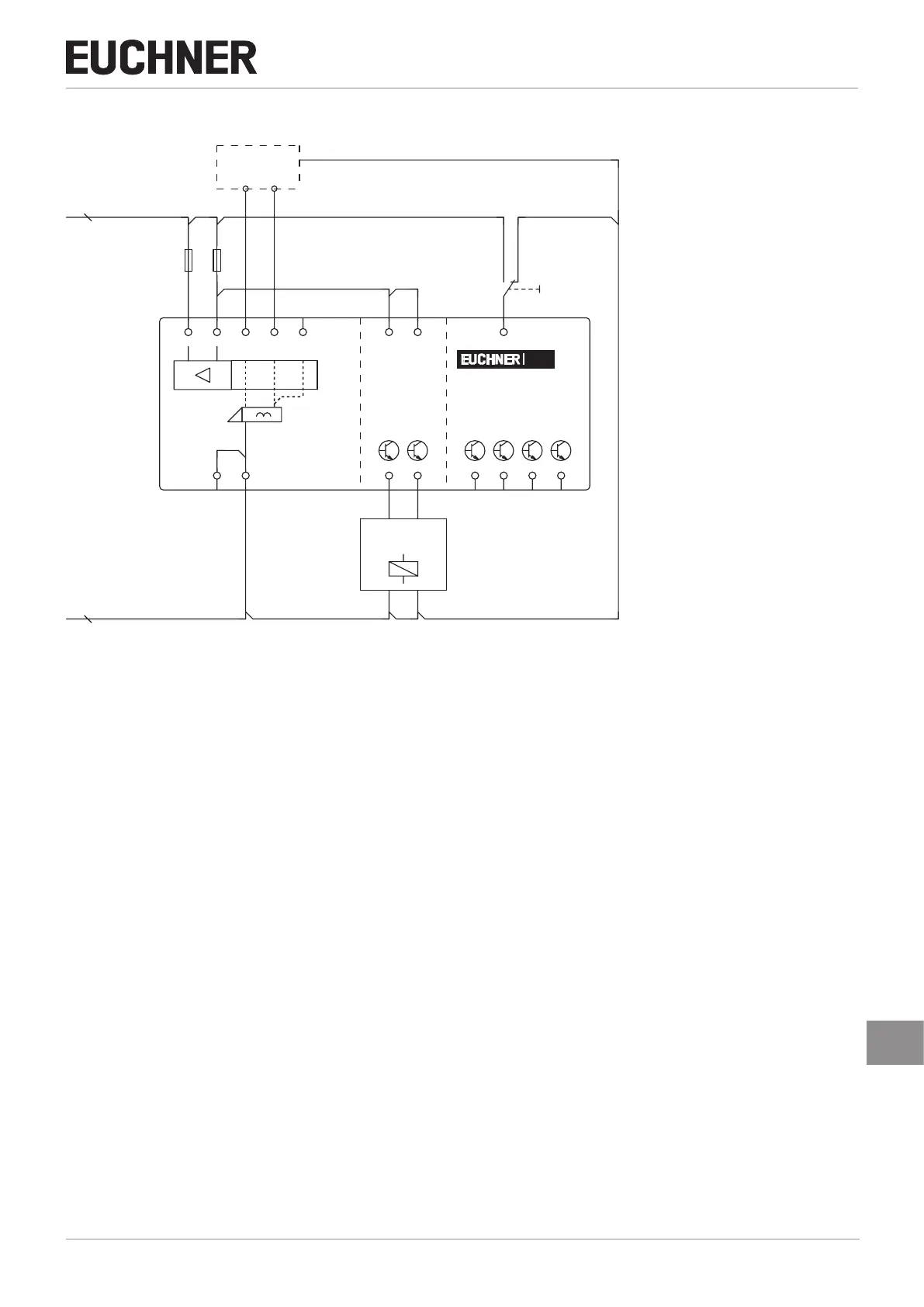

Figure 18: Connection example for separate operation
The switches can be reset via the RST input. To do this, a voltage of 24V is applied to the RST input for at least 3 seconds.
The supply voltage to the switches is interrupted during this time. The RST input must be connected to 0V if it is not used.
