12.8. Connection of guard locking control
MGB
O1
IMP1 IMP2 IMM
MGB
O1
IMP1 IMP2 IMM
O2
MGB
PLC PLC PLC
O1
IMP1 IMP2 IMM
O2
Jumper (default)
1-channel control
1xp-switching
2-channel control
2xp-switching
2-channel control
1xp-switching
1xn-switching

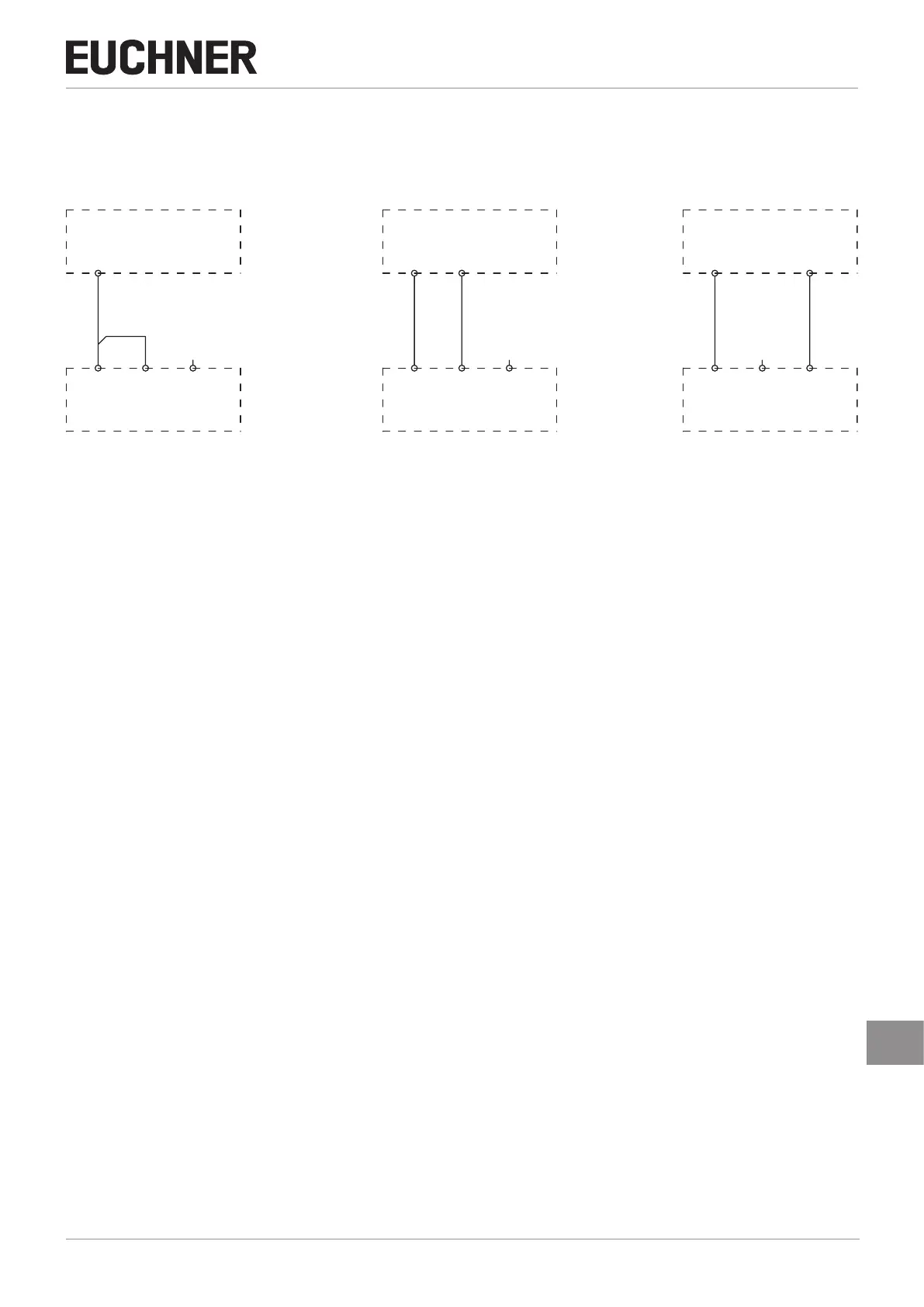

Fig. 16: Connection options for guard locking control
With 2-channel control, the jumper between IMP1 and IMP2 must be removed. Connection as shown above. Further adapta-
tions may be required for some device versions with plug connector M23 (RC18) (see associated data sheet).
