System 5 Digital Audio Mixing System Operation Manual Channels and Strips
105
Select/Punch Keys
There are several Select/Punch keys on a Strip that operate on different levels:
• At the top of the strip (see Figure 8-6), the Knobset Select/Punch key selects
or punches all knobset parameters for the currently selected function, including
knobs and switches.
• The upper switch to the left of the knob is the Select/Punch key for the On/Off
switch below it. When the transport is moving, it is the punch-in/out key for the
On/Off switch. This key is also used to select the On/Off switch for inclusion
in a Snapshot and pages to a second knob function, if it exists.
• Each knob has a center switch that punches the knob in/out during automation. It
also selects that knob for inclusion in a Snapshot. When not in automation, tap-
ping the knob switch shows the value in the display instead of the function name.
8.2.4 Touch-Sensitive Fader and Controls
Each Strip has a touch-sensitive fader that moves automatically in response to recorded
automation. When the fader is touched, the Fader touch-sensor LED lights and automat-
ically punches it into automation (the Select/Punch key also punches the fader in/out).
The Fader Automation Status LEDs show the automation mode status for the fader.

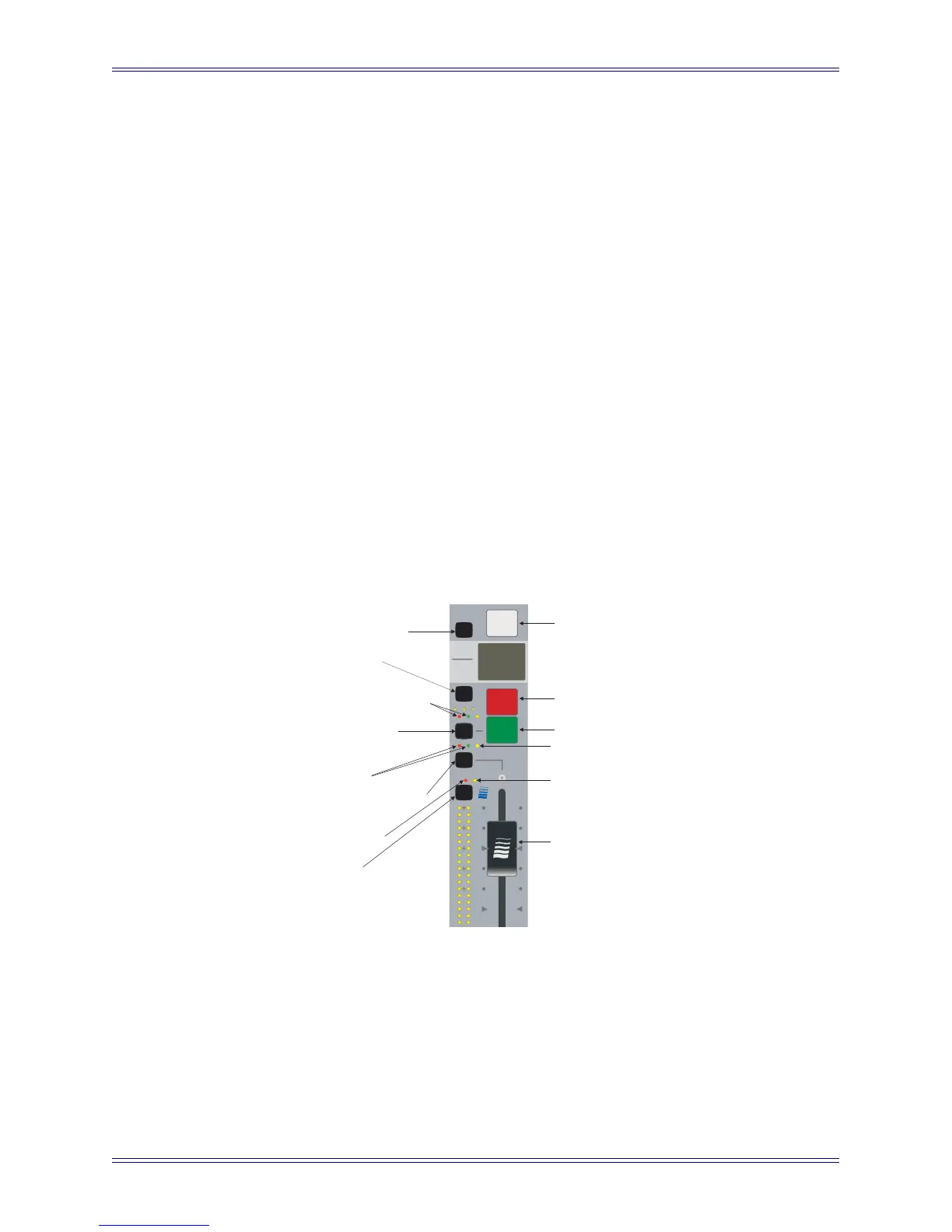

Figure 8-7 Fader Controls
MSL
12
6
0
6
12
18
0
swap
Solo
on
C25
C1
All
knobs
Chan
Select
Fader Automation
Status LEDs
Fader Select/Punch key
Fader touch-
sensor LED
Touch-sensitive
fader
Auto-glide LED
Select/Punch key
Channel On
Channel On
Automation status
LEDs
Strip Lock
LED
Wave
key
Channel Select
key
Swap channel
key
All Funcs
key
Channel On key
Solo
key
To Next Page
