Metering Display

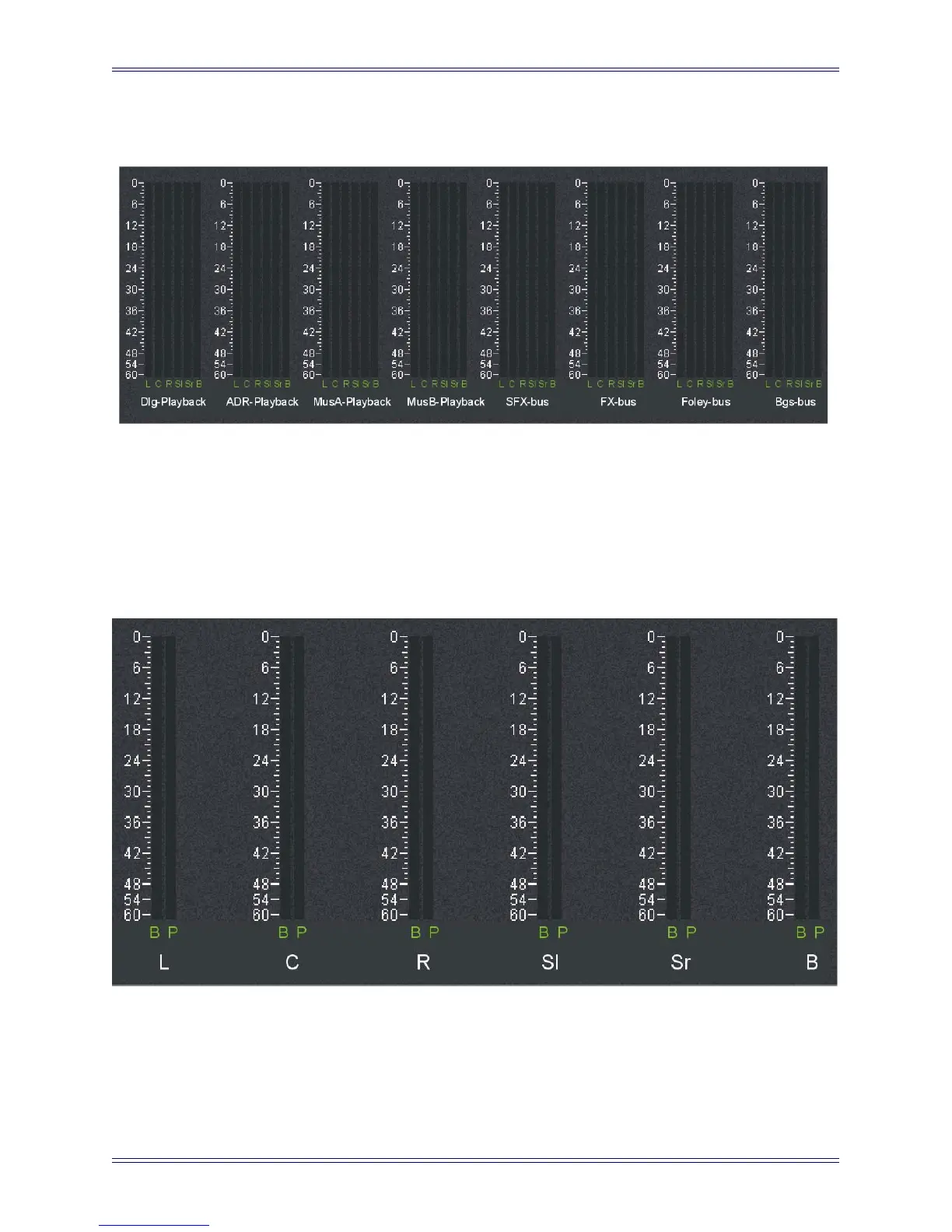

Figure 15-7 Top Level Metering Display
The meters track whatever is currently assigned to the paddles. The send and return for
each bus are displayed on separate meters.
At the top level, where the paddles are assigned to the bus sections, eight meters can be
displayed for each of the mix busses within the section.
Figure 15-8 Bus Level Metering Display
Bus/Track and Monitor Assignments Display
The lower half of the screen displays 48 mix busses across the top, the first eight bus
sections down the side, and the eight speaker (main monitor bus) outputs.
