8.4.5 Pan
System 5 is not limited to a single pan format and one pan control per channel imposed
by the traditional analog console. System 5 allows the following pan formats (also
called pan laws): mono, stereo, LCR, LCRS, 5.1, 6.1, and 7.1.
A single panner can control several different Mix or Group busses at once, each with dif-
ferent formats. See Section 7.3 - Mix and Group Bus Setup to learn how to assign Mix
and Group Bus formats.
Pan Knobsets
Press the Pan function key to assign the Pan parameters to the knobset (Figure 8-16).
See Section 8.5.1 - Group Bus Routing and/or Section 8.5.2 - Mix Bus Routing to review
how to use the Pan to: switch to insert Pan.

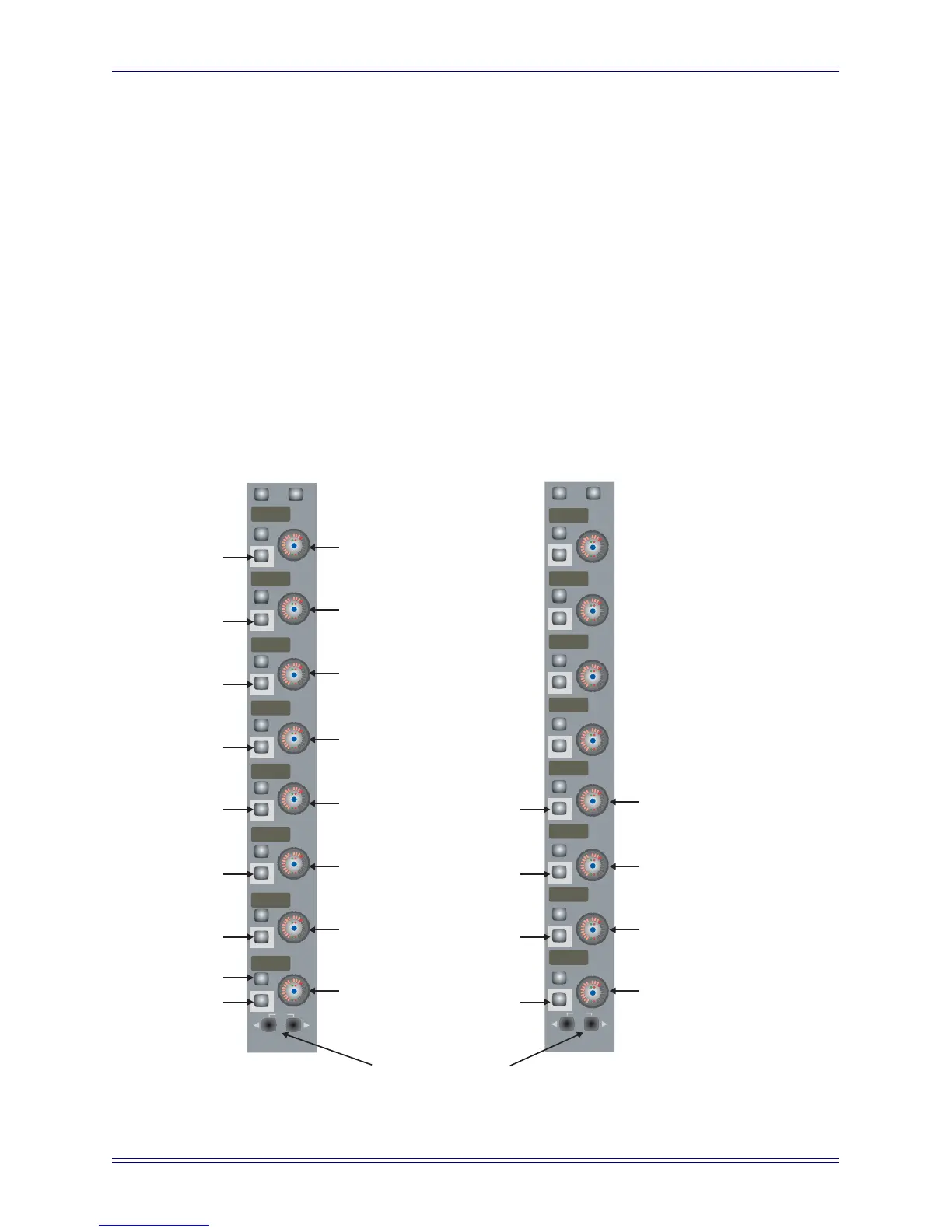

Figure 8-16 Pan Knobsets
cfg
Boom
PanR
DivF
FocF
Srnd
PanF
Page keys display
other Pan pages
Pan (page 1) Pan (page 2)
non-Boom level
on/off
Boom level
Pan rear
Divergence front
Focus front
Front:Surround Pan
Pan front
cfg
DivS
FocS
DivR
FocR
Divergence Surround
Focus Surround
Divergence Rear
Focus Rear
on/off
in/out
in/out
in/out
in/out
in/out
in/out
in/out
in/out
in/out
Width
Rot8
Rotate
NonB
on/off
