Euphonix System 5 Operation Manual

System 5 Digital Audio Mixing System Operation Manual CM403 Film/Post Module
210
15.2 The Film Panel

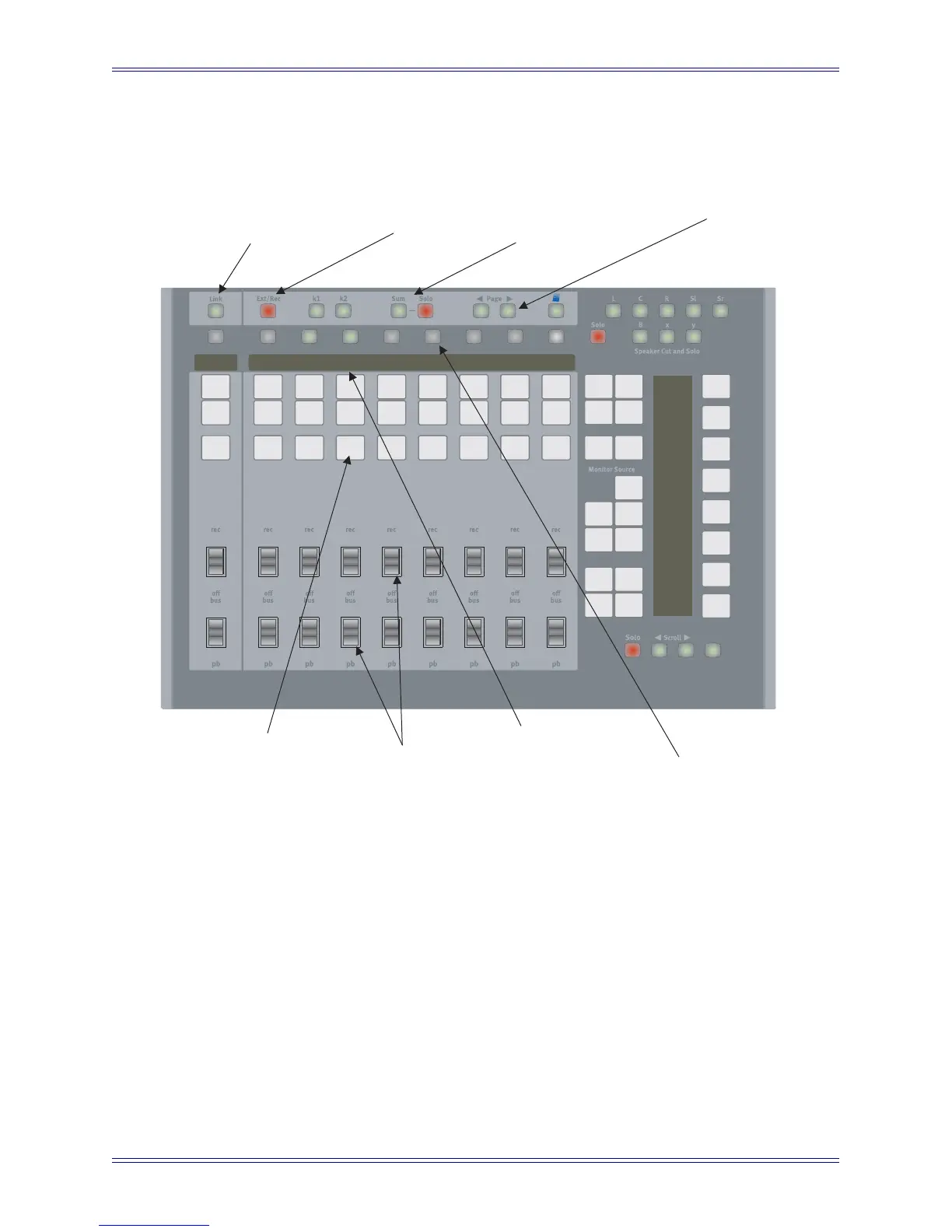

Figure 15-1 Post Panel Interface
The Film Panel is divided into two distinct parts: the traditional PEC/DIR panel on the
left, and an additional utility panel to the right. The right panel duplicates most of the
CM401’s monitoring and setup functions.
MSTR
Ext's
Cut
Dim
Alt 1
Spkrs
Main
Spkrs
Alt 2
Spkrs
Monitor
Insert
Spkr
Asgn
Panel
Lock
Fold
Down
Solo
Ctrl
Rec's
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Solo
ON
Ready
Dia Mus FX
Dia
Mus
FX
Talk
8 plus master RECORD
ON/OFF and BUS/PB
(playback) paddles.
Ready switch enables
Record On for selected
bus(es). Solo and On
switches for monitor inputs
assigned to selected paddle
Link allows the user
to select which bus
sections/legs are
under the control of
the master.
Ext/Rec switch
enables external GPI
to trigger record.
Sum switch is reserved for future
use. Solo switch lights when a
monitor matrix solo is active and
hitting the switch clears all solos.
At the top level the
displays represent the
section currently assigned
to the corresponding
paddles and switches.
A single section can be
expanded on to the
switches and paddles by
hitting the corresponding
Exp/Sel switch.
Allows paging for more
than 8 sections (or busses-
if the section is expanded).
