8.3.2 Channel Processor Order
Enter the configuration mode as described in Section 8.3 on page 108. Press the cfg X
key to display the processor order page. The current order is indicated by the knob dis-
play (top = first). To change the order:
1. Press the knob switch for the processor to re-order.
The knob LED flashes and the processor order is displayed on the TFT screen
above the Strip. The fader, which becomes the controller to select the order,
jumps to a position that reflects the current order.
2. Move the fader up/down to select that processor’s new position.
The screen changes to reflect the new order.

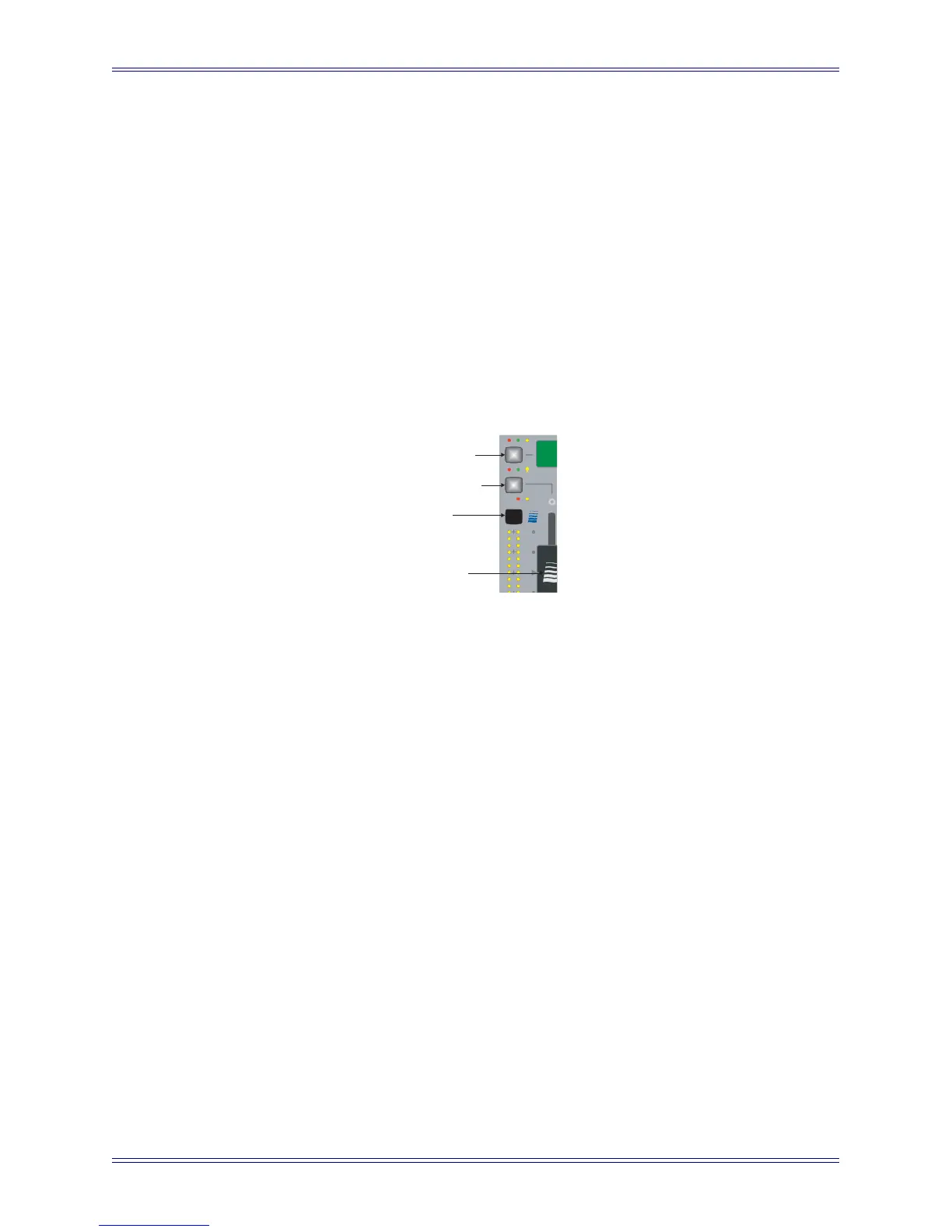

Figure 8-9 Changing processor order
3. When that processor’s position is correct, press the fader Select/Punch key
(above the Wave key) to accept the new order.
The knob display changes only after pressing the Select/Punch key.
Press the switch next to the Channel On key to abort the selection.
8.3.3 Insert Point
Each channel can have an insert point with a send and return that can be patched with
PatchNet. The insert point can be anywhere among the six processors (Delay, Metering,
EQ, Filters, Dynamics, and Fader) and can be considered as another processor.
The insert point can be switched in/out using the Ins In key next to the Strip’s function
keys or from the third Input knobset page.
12
6
0
6
on
A
bort selection
A
ccept selection
Wave key
Fader scrolls
through list
