Euphonix System 5 Operation Manual

System 5 Digital Audio Mixing System Operation Manual CM401 Master Section
65

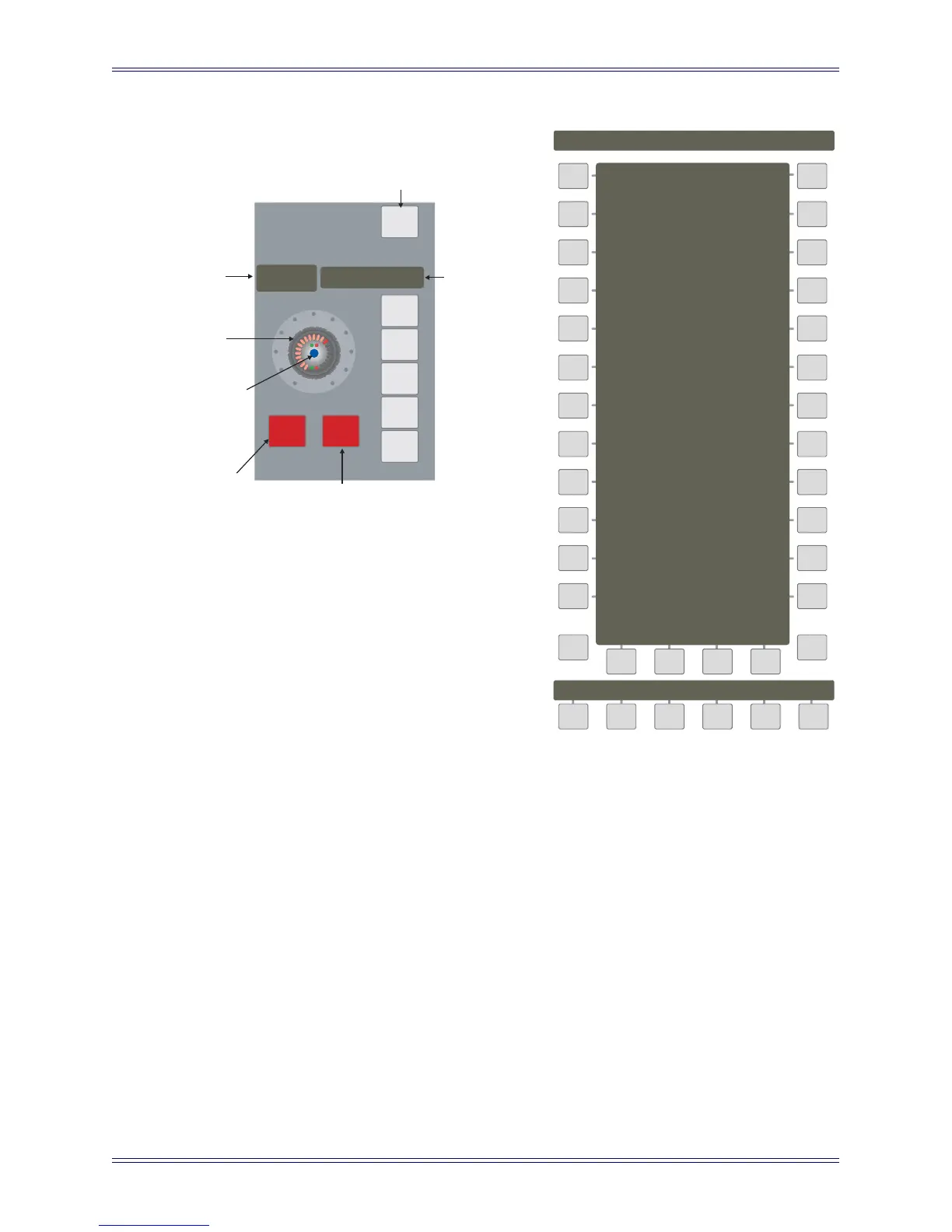

Figure 5-4 CR Output controls and Control Room Output Panel
Dim and Cut
The Dim level can be set in the Control Room Output Panel by pressing the Dim key
on the panel viewer and using the Spin Knob to adjust the level. This is the reduction
in level (dB) that occurs when the Dim switch is active.
The Control Room Monitors may be switched off/on by pressing the output level
knob’s center switch or the Cut switch.
Monitors A-D may be switched off/on by pressing the output level knob’s center
switch; they are off when their output level knob’s center LED is not lit.
Main
Panel
Info
Control Room Output
Dim -10
Mon Cal
ROn
Sl On
Sr On
XOn
YOn
Mono
Cal -12.2
dBSPL 85
Stereo
LCRS
5.1
7.1
LR Phase
LOn
COn
Bm On
YXL C R Sl Sr B
LR phase
Control Room
Alt2
Spkrs
Alt1
Spkrs
Main
Spkrs
CR
Source
Dim Cut
CR
Output
Mix 1
085
Output
Level (dB)
Dim Switch
drops the level by
the amount indicated
in CR Output Panel
Cut Switch turns
CR Output On/Off
Press to display
Control Room
Output Panel
CR Source
Output
Level Knob
Center Switch
turns CR Output
On/Off
CR
Insert
