Eurotech PROTEUS - Block Diagram

Hardware implementation
Issue C
29
Block diagram
Type 1 COM Express implementation

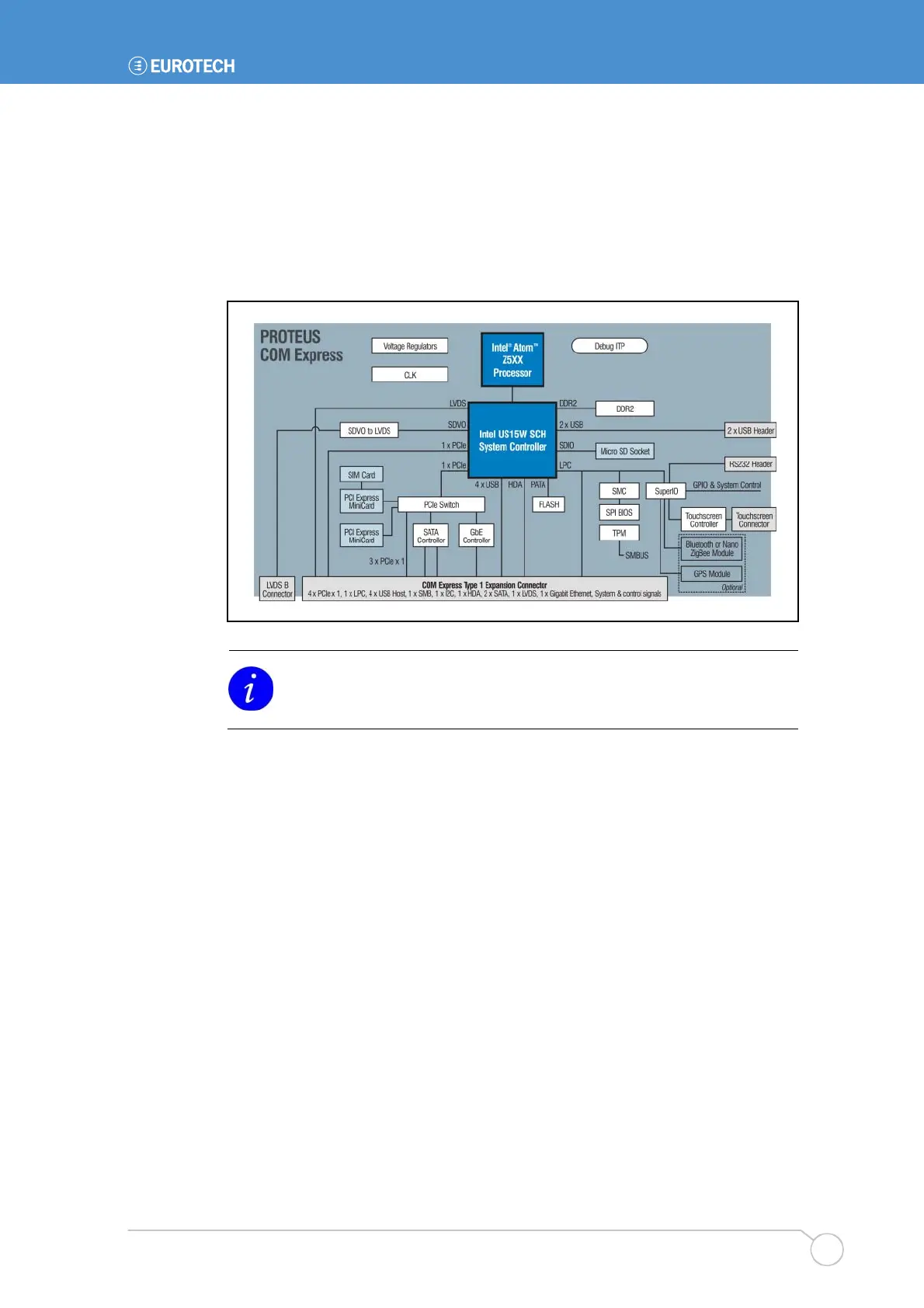

The following block diagram shows the COM Express Type 1 extended module
implementation of the PROTEUS with connections to the COM Express board-to-board
connector:
For PROTEUS V1I1 is LVDS interface from LVDS B connected as second
LVDS interface on COM express connector. LVDS B is not fitted in this
version.
