Connectors and LEDs
Issue C
65
LEDs

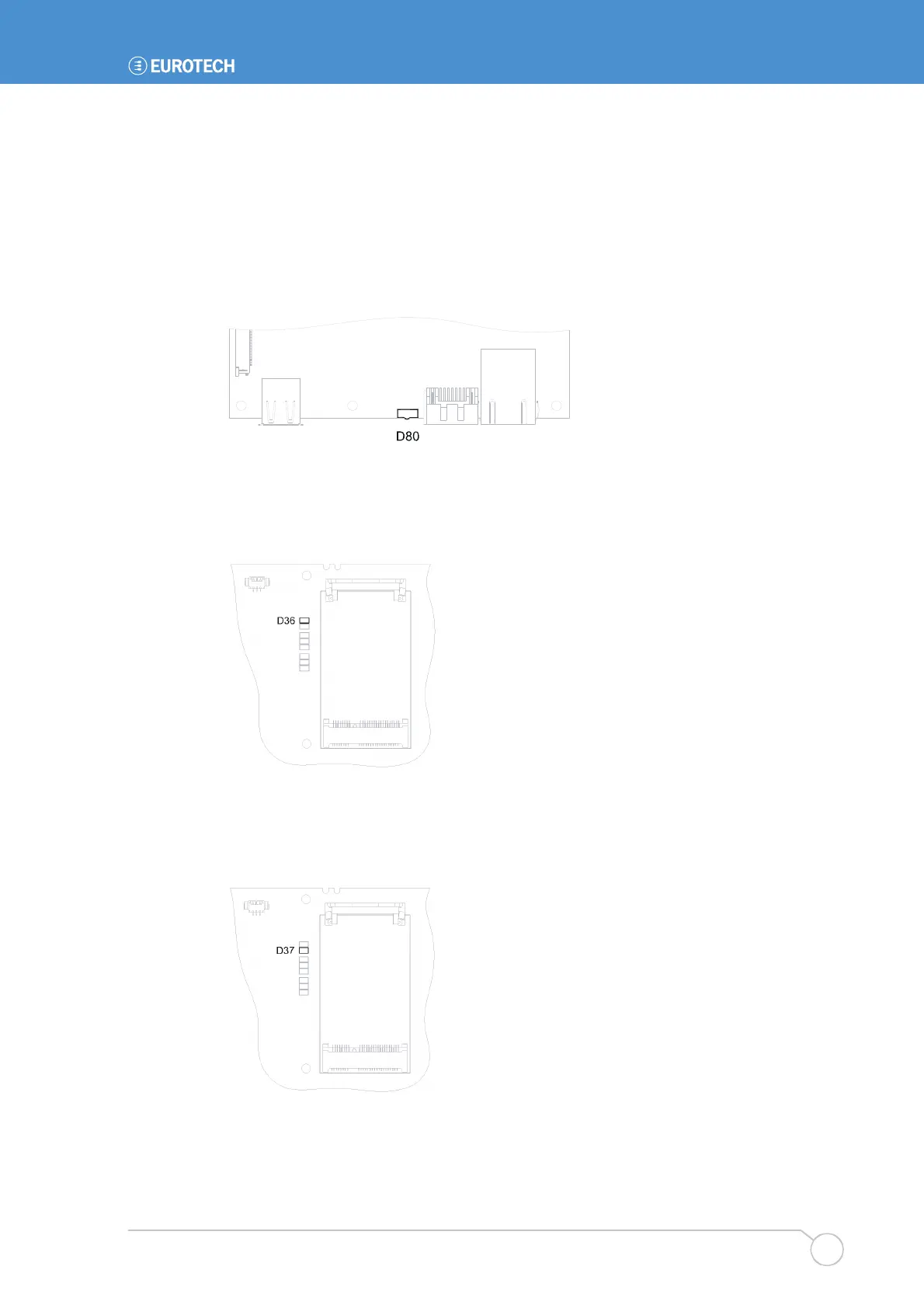

D80 - Power / Sleep LED
D80 is dual colour LED:
• Green colour indicates S0 state. in this state the board is fully running.
• Orange colour indicates S3 state. in this state the board is in sleep mode.
D36 - PCIe Minicard slot 0 activity
D36 indicates PCIe Minicard slot 0 activity. This signal is AND of WPAN, WLAN and
WWAN signals coming from PCIE minicard 0 and depends on card setting.
D37 - PCIe Minicard slot 1 activity
D37 indicates PCIe Minicard slot 1 activity. This signal is AND of WPAN, WLAN and
WWAN signals coming from PCIE minicard 1and depends on card setting.
