PROTEUS user manual
Issue C
64

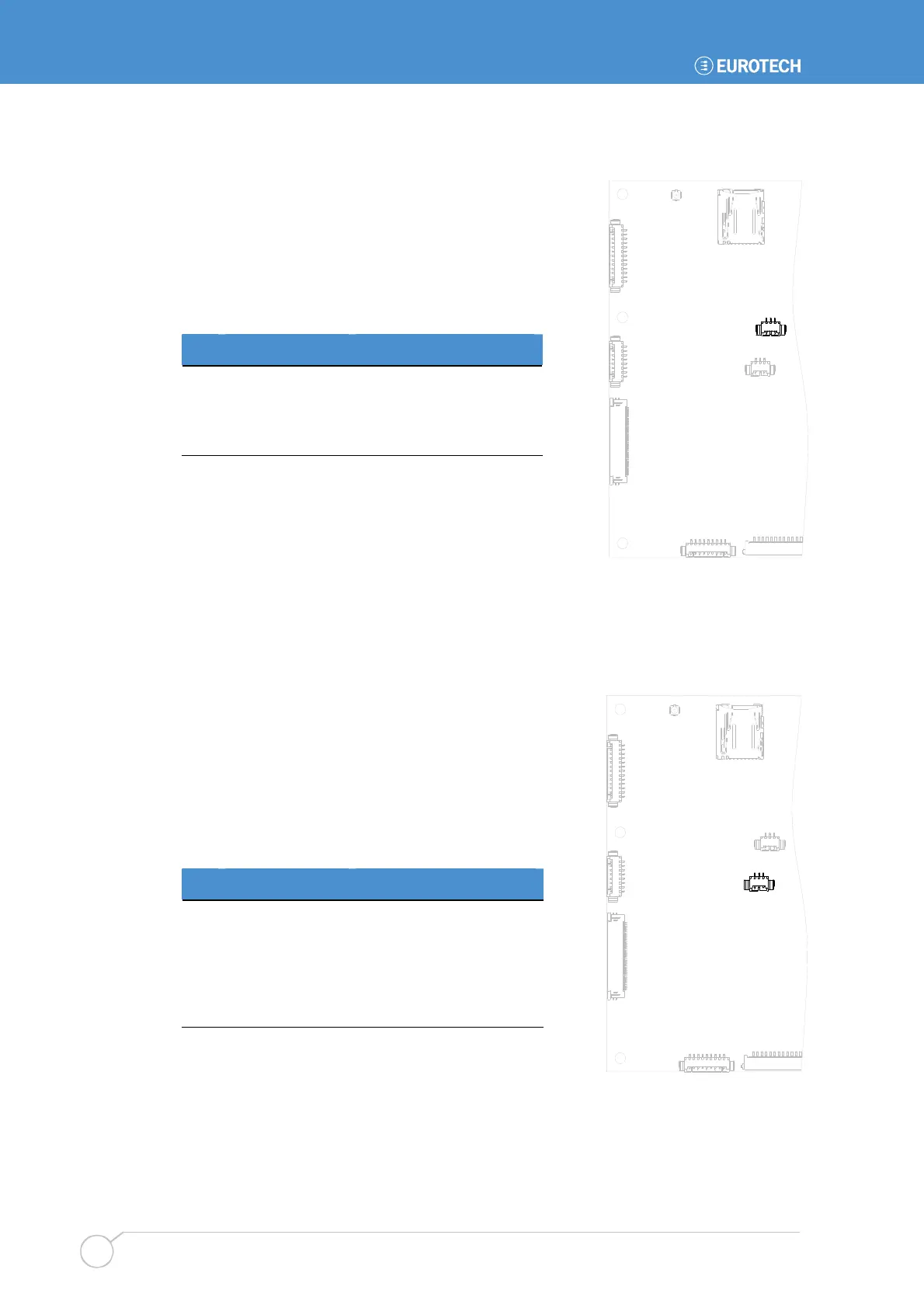

J26 - FAN 2 connector (optional)
J26 is connected to Super IO FAN 2 control pins.
Connector: MOLEX 53261-0371.
Housing: 3Way MOLEX Housing (51021-0300) or
equivalent.
Crimps: Crimps for MOLEX Housing (50058-8000) or
equivalent.
Pin Signal name Description
1 FANTACH2 (in) RPM input from FAN2
2 +5V FAN2 power
3 GND (PWM) FAN2 ground
J27 - EC serial debug output (for debugging purpose only)
J27 is connected to Embedded controller serial line
interface.
Connector: MOLEX 53261-0371.
Housing: 3Way MOLEX Housing (51021-0300) or
equivalent.
Crimps: Crimps for MOLEX Housing (50058-8000) or
equivalent.
Pin Signal name Description
1 EC_RX (in)
Embedded controller RX
signal
2 EC_TX (out)
Embedded controller TX
signal
3 GND Ground
J26
1
J27
1
