Connectors and LEDs
Issue C
63

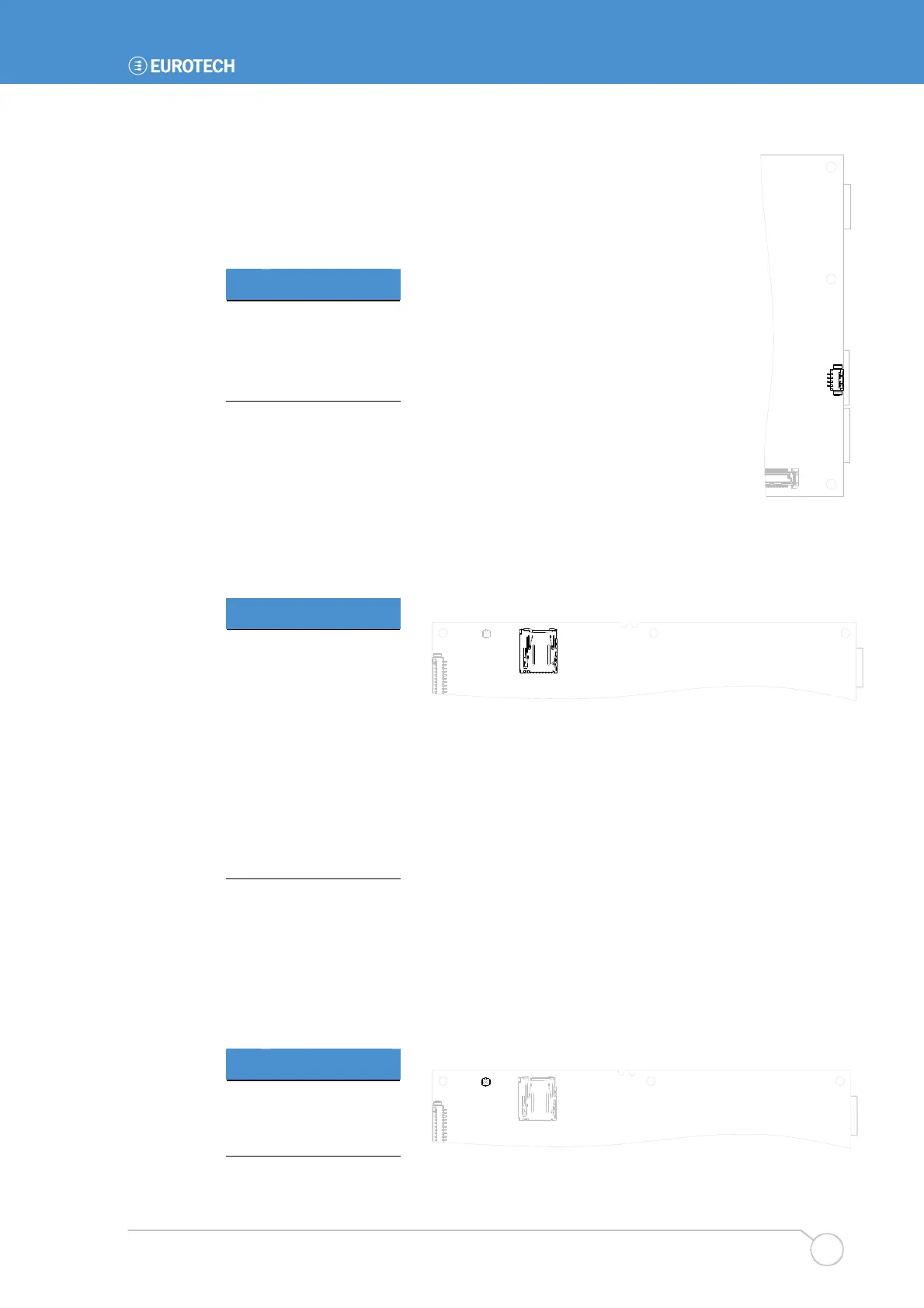

J23 - SATA power connector (stand alone only)
Connector: MOLEX 53261-0471.
Housing: 3Way MOLEX Housing (51021-0400) or equivalent.
Crimps: Crimps for MOLEX Housing (50058-8000) or equivalent.
Pin Pin name
1 +5V
2 GND
3 GND
4 +5V
J24 - Micro SD slot
J24 is connected to SCH SDIO slot 1.
Connector: HIROSE DM3AT-SF-PEJ.
Pin
Pin name
1 DAT2
2 CD/DAT3
3 CMD
4 VDD
5 CLK
6 VSS
7 DAT0
8 DAT1
9 SW1 (CD#)
10 GND
J25 - GPS antenna
J25 is connected to GPS module.
Connector: HIROSE U.FL-R-SMT.
Mating sockets: HIROSE U.FL-LP-040 or U.FL-LP-066 or U.FL-LP-062 or U.FL-LP-088
or equivalent.
Pin Pin name
1 GPS RF IN (in)
2 GND
3 GND
1
J23
1
J24
1
J25
