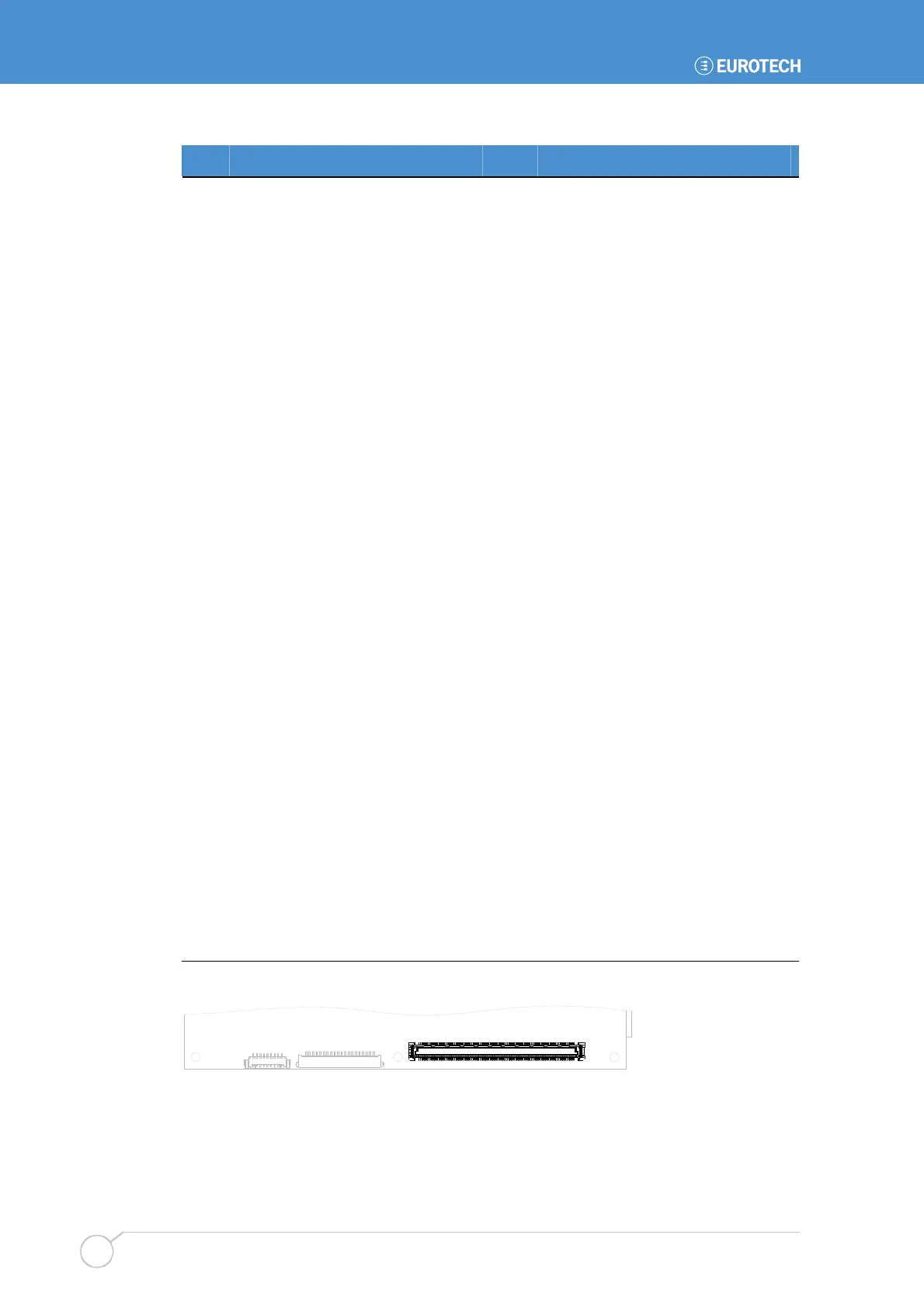

Pin Signal name Pin Signal name
A85 GPI3 (SuperIO: GP54) B85
VCC_5V_SBY (+5V standby
power)
A86 NC B86
VCC_5V_SBY (+5V standby
power)
A87 NC B87
VCC_5V_SBY (+5V standby
power)
A88 PCIE0_CK_REF+ (out) B88 NC
A89 PCIE0_CK_REF- (out) B89 NC
A90 GND B90 GND
A91 NC B91 NC
A92 NC B92 NC
A93 GPO0 (SuperIO: GP56) B93 NC
A94 NC B94 NC
A95 NC B95 NC
A96 GND B96 NC
A97 VCC_12V (input power +12V) B97 NC
A98 VCC_12V (input power +12V) B98 NC
A99 VCC_12V (input power +12V) B99 NC
A100 GND B100 GND
A101 VCC_12V (input power +12V) B101 VCC_12V (input power +12V)
A102 VCC_12V (input power +12V) B102 VCC_12V (input power +12V)
A103 VCC_12V (input power +12V) B103 VCC_12V (input power +12V)
A104 VCC_12V (input power +12V) B104 VCC_12V (input power +12V)
A105 VCC_12V (input power +12V) B105 VCC_12V (input power +12V)
A106 VCC_12V (input power +12V) B106 VCC_12V (input power +12V)
A107 VCC_12V (input power +12V) B107 VCC_12V (input power +12V)
A108 VCC_12V (input power +12V) B108 VCC_12V (input power +12V)
A109 VCC_12V (input power +12V) B109 VCC_12V (input power +12V)
A110 GND B110 GND
1
J22
