Eurotech PROTEUS - Connectors

Connectors and LEDs
Issue C
43

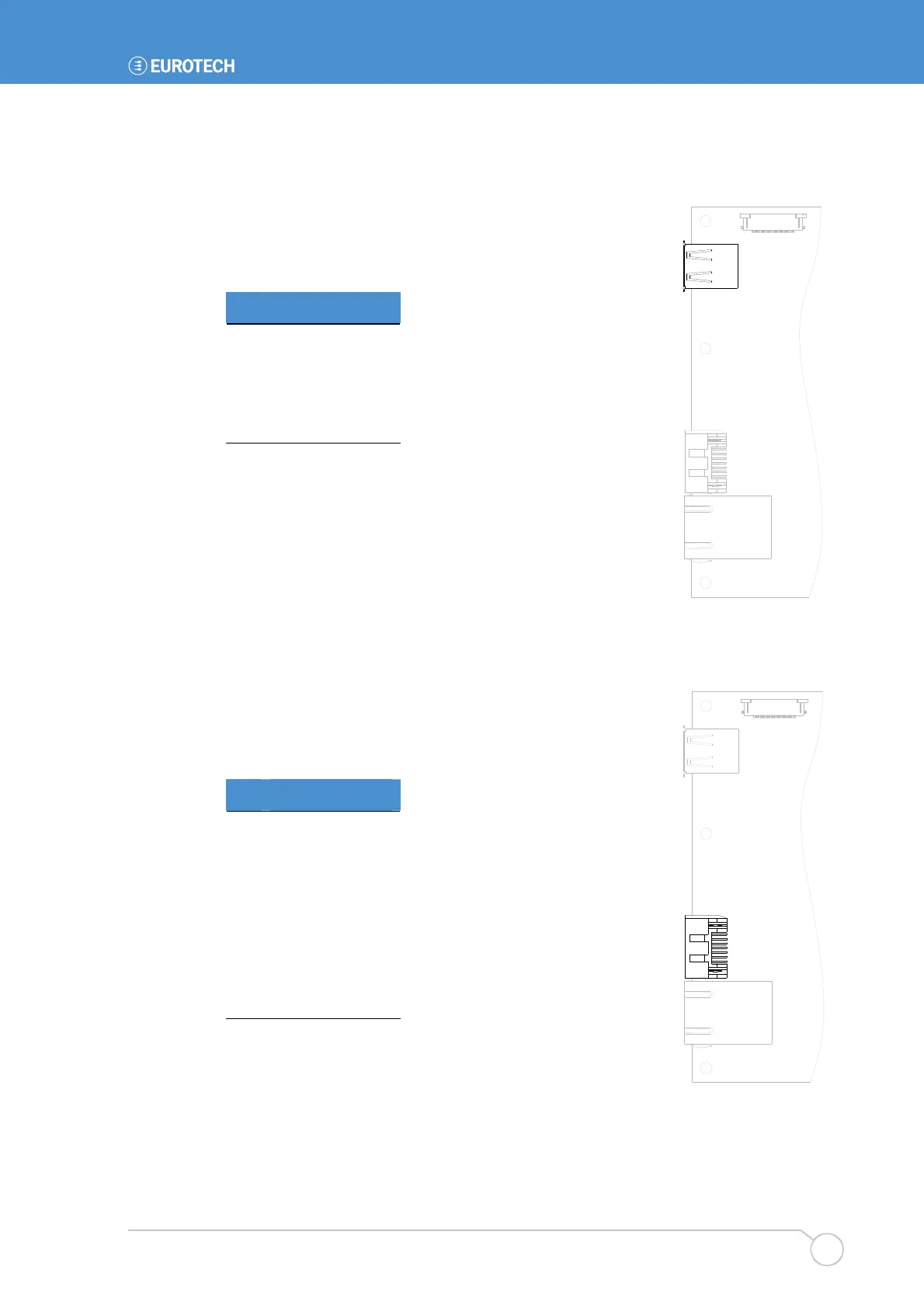

Connectors
J1 - USB Type A connector (stand alone only)
J1 is connected to SCH USB port 1.
Connector: EDAC 690-004-621-013.
Pin Signal name
1 +5V
2 D- (USB port 1)
3 D+ (USB port 1)
4 GND
J2 - SATA connector (stand alone only)
J2 is connected to channel 1 of SATA controller.
Connector: MOLEX 470804001.
Pin Signal name
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
J1
J2
