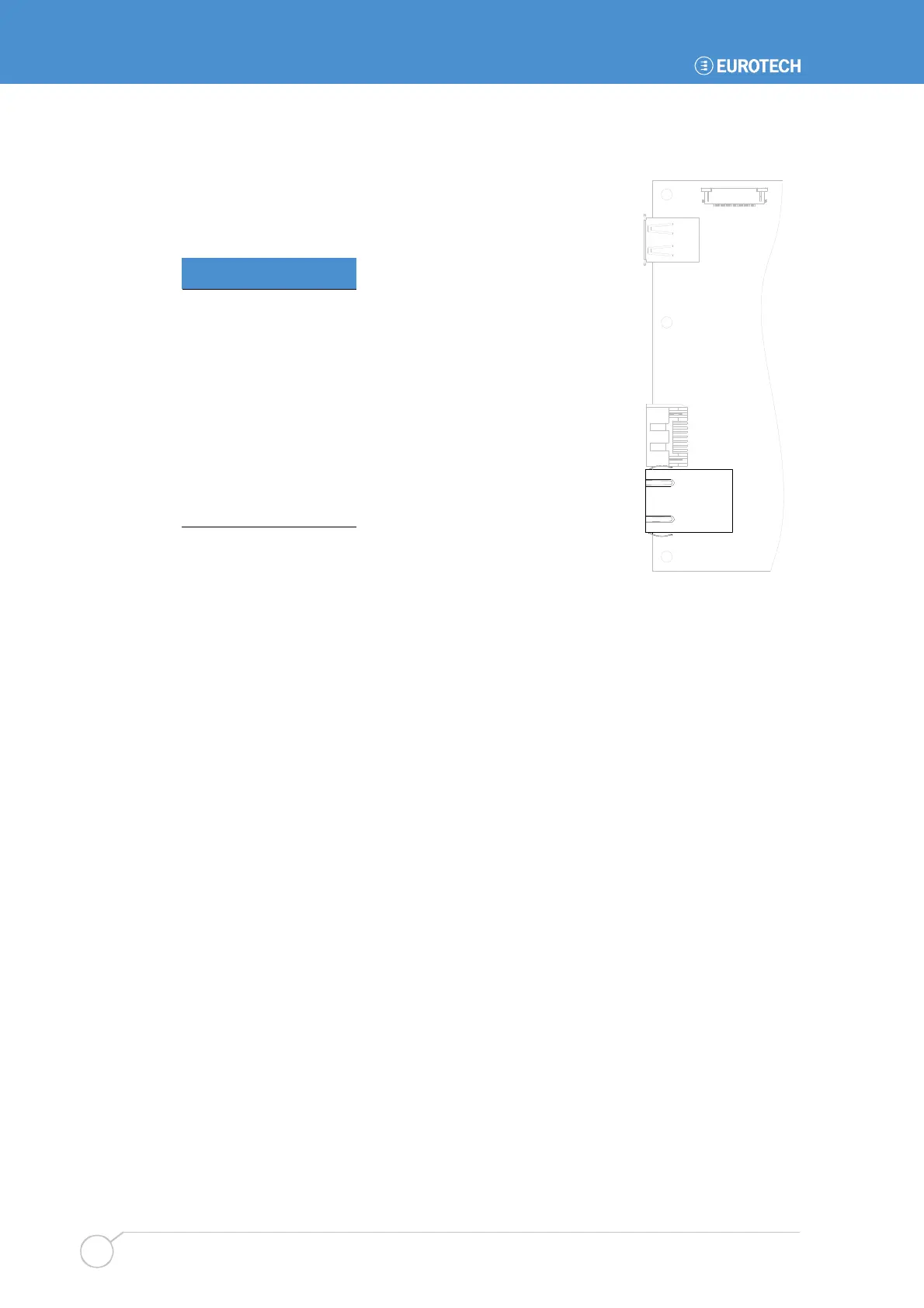

J3 - Gb Ethernet connector (stand alone only)
J3 is connected to GBe controller.
Connector: L829-1J1T-43 Gigabit Ethernet Ultra Low
Profile Single Port MagJack
®
with LEDs.
Pin Signal name
1 TRP1+
2 TRP1-
3 TRP2+
4 TRP3+
5 TRP3-
6 TRP2-
7 TRP4+
8 TRP4-
LED1 (orange):
• OFF: Not connected.
• ON: Link.
• BLINKING: Activity.
LED2 (orange/green):
• OFF: 10Mb.
• Green: 100Mb.
• Orange: 1Gb.
J3
