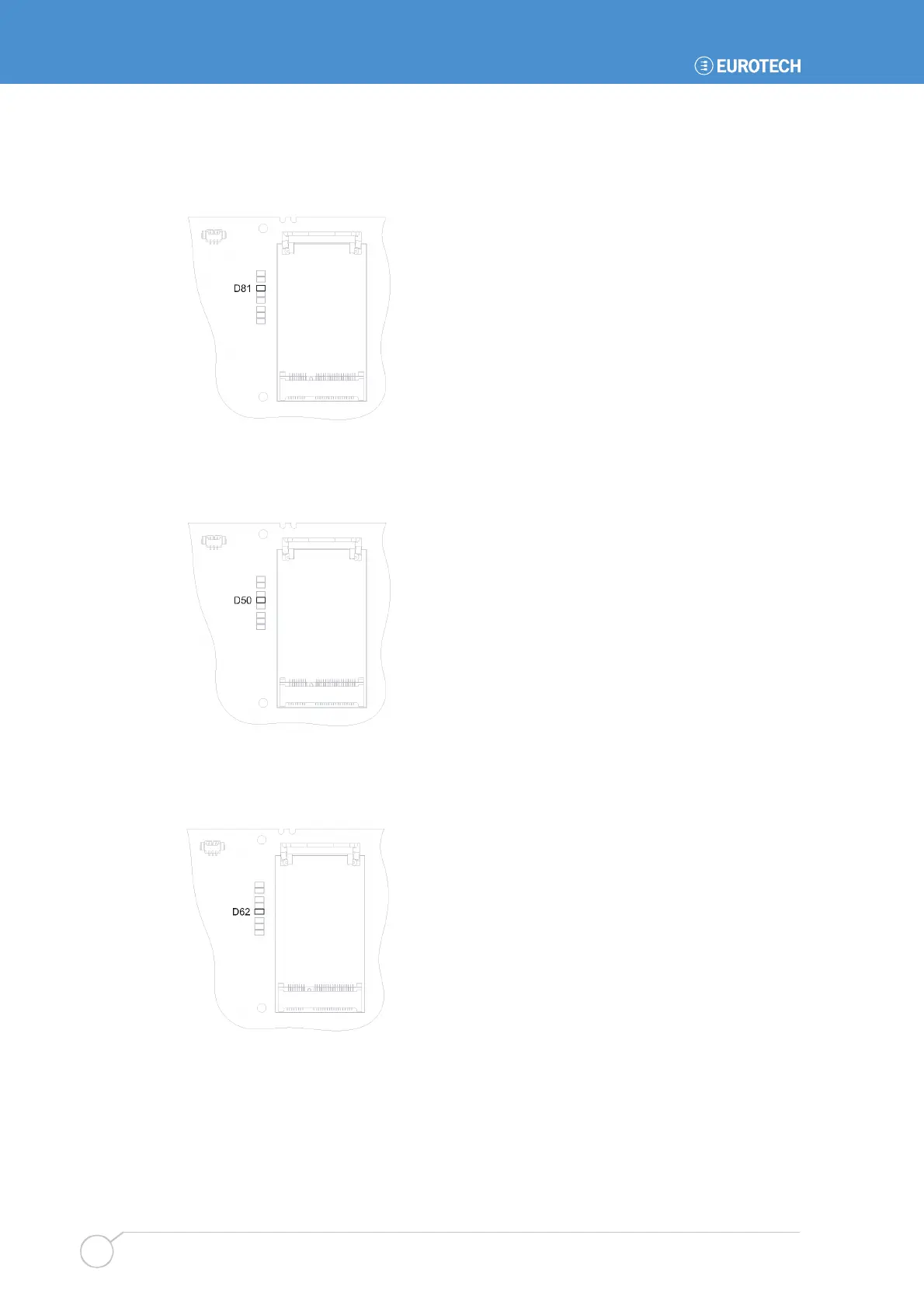

D81 - Thunderbolt / SATA activity
D81 indicates access to Thunderbolt or SATA drive.
D50 - Bluetooth activity
D50 indicates Bluetooth activity and depends on WT11 module settings.
D62 - Micro SD card activity
D62 indicates access to micro SD card.
