J12 - SIM card socket
J12 is a SIM card socket connected to J13 PCIe Minicard slot 0.
Connector: JAE SF7W008S1AE900.
Pin Signal name
C1 VCC (out)
C2 RESET (out)
C3 CLK (out)
C5 GND
C6 VPP (out)
C7 IO (in/out)
S1 CD1 (default NC)
S2 CD2 (default NC)

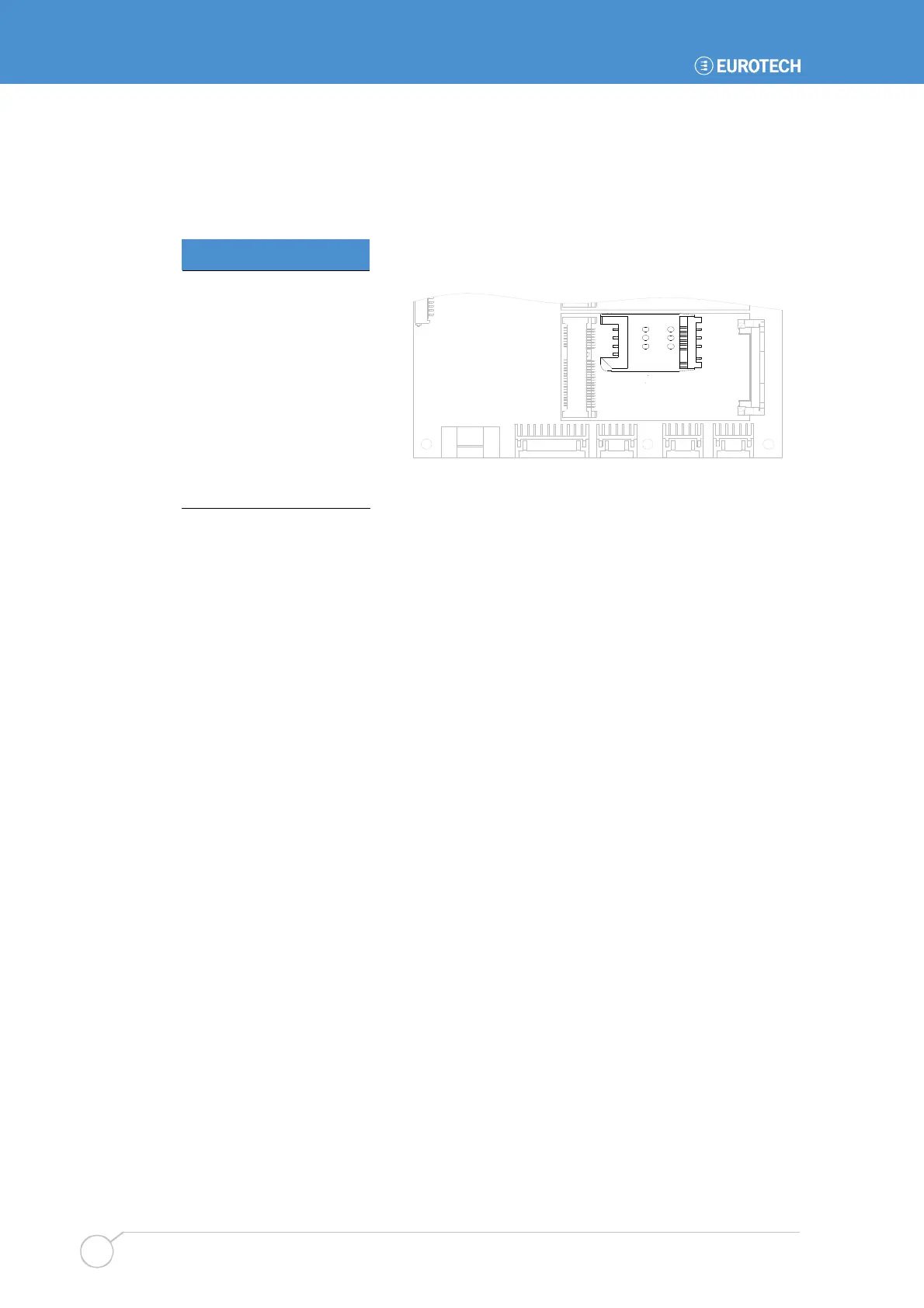

J12
