PROTEUS user manual
Issue C
54

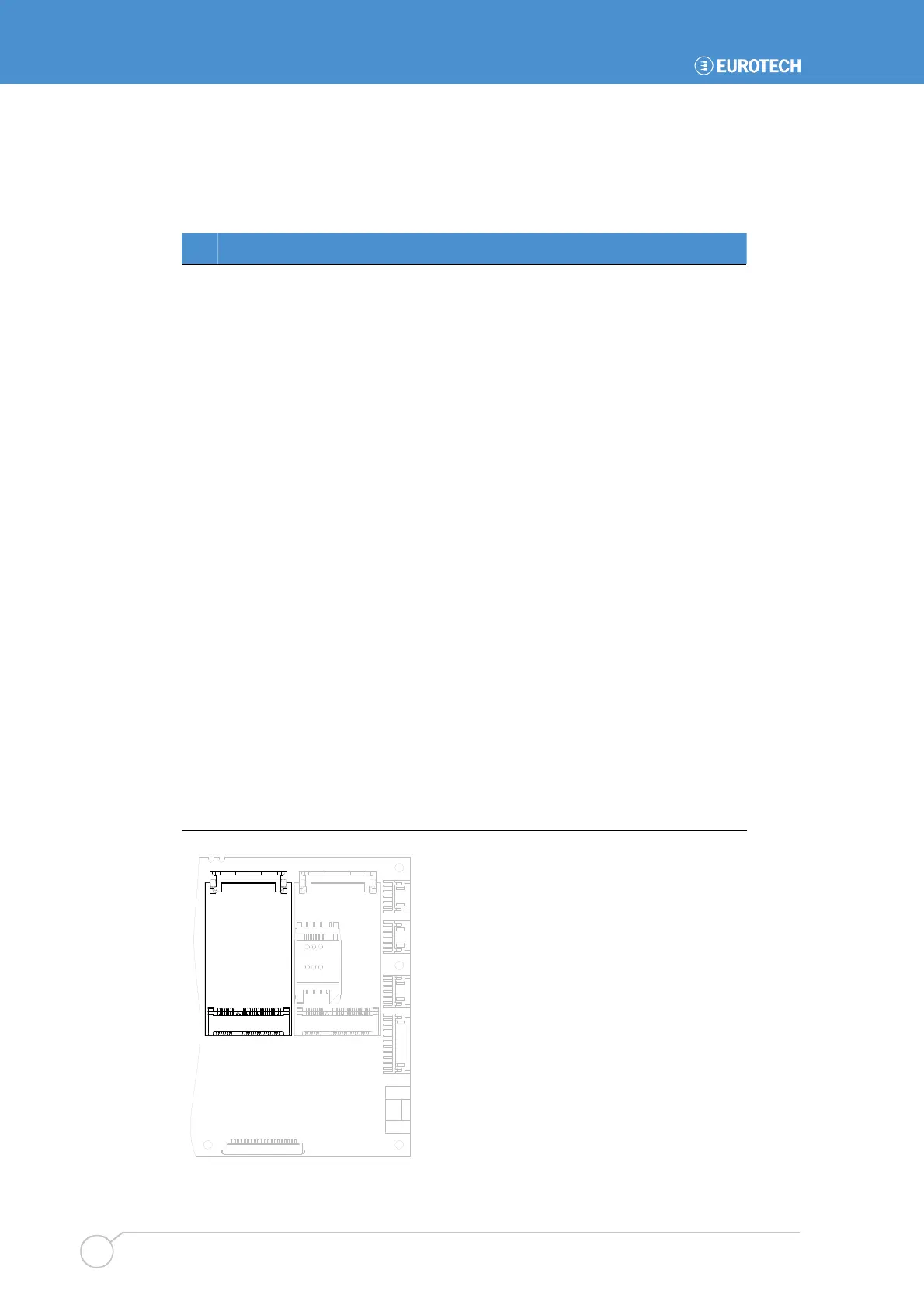

J14 - PCI Express Mini Card slot 1
J14 is connected to PCI Express switch port 4.
Connector: FOXCONN AS0B226-S68N-7F, MINIPCI express, 52.SMT, 0.7, 6.8mm, STD, 25.
Pin Signal name Pin Signal name
1 WAKE# (in) 2 +3.3V
3 N.C. 4 GND
5 N.C. 6 +1.5V
7 CLKREQ# (in) 8 N.C.
9 GND 10 N.C.
11 REFCLK- (out) 12 N.C.
13 REFCLK+ (out) 14 N.C.
15 GND 16 N.C.
17 N.C. 18 GND
19 N.C. 20 W_DIS# (out)
21 GND 22 PERST# (out)
23 PCIE_RXD2- (in) 24 +3.3Vaux (default S3 / optional S5)
25 PCIE_RXD2+ (in) 26 GND
27 GND 28 +1.5V
29 GND 30 SMB_CLK (out)
31 PCIE_TXD2- (out) 32 SMB_DATA (in/out)
33 PCIE_TXD2+ (out) 34 GND
35 GND 36 USB_D7- (in/out)
37 N.C. 38 USB_D7+ (in/out)
39 N.C. 40 GND
41 N.C. 42 LED_WWAN# (in)
43 N.C. 44 LED_WLAN# (in)
45 N.C. 46 LED_WPAN# (in)
47 N.C. 48 +1.5V
49 N.C. 50 GND
51 N.C. 52 +3.3V
1
J14
SLOT1
