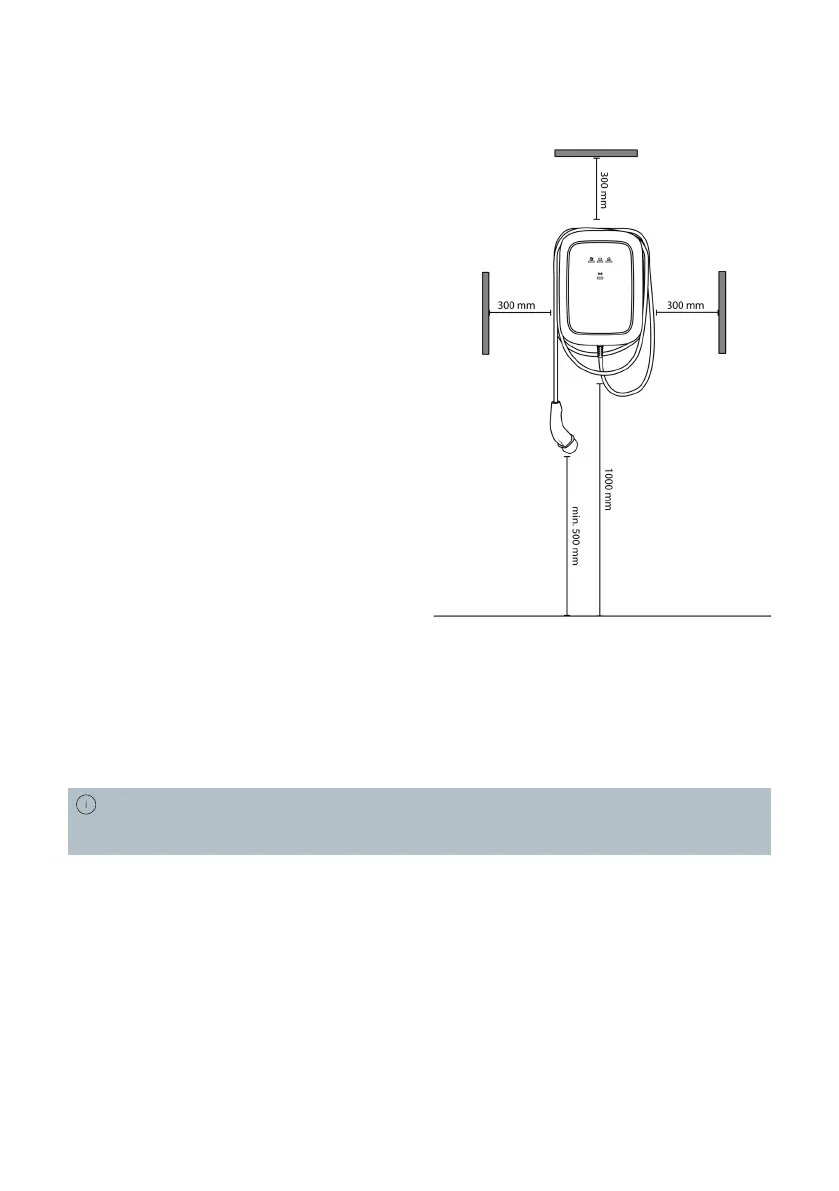

The above illustration above indicates a standard installation height. Observe and comply
with the local accessibility regulations. A drilling template for mounting can be found at
https://www.elli.eco/downloads/
Pre-installation checklist
› The local installation regulations are identi-
fied and are followed.
› A miniature circuit breaker (MCB) and resi-
dual current device (RCD) must be installed
upstream and have ratings that correspond
to the local power supply as well as to the
required charging power.
› The following installation instructions are
obeyed.
› The recommended tools (additional tools
needed) are available on site. See chapter
Tools and material needed for more infor-
mation.
› The plugs, screws, and drill bits to be used
for mounting the wall bracket are suita-
ble for the wall structure at the place of
installation.
› The configuration of the supply cable,
Ethernet cable (optional) and CT coils (op-
tional) is determined.
› The Set DIP-switches chapter is consulted
for the list of supported CT coils.
› A single multi-core cable must be used for
connecting multiple CT coils for overload
protection. See chapter Overload Protec-
tion for more information.
