37

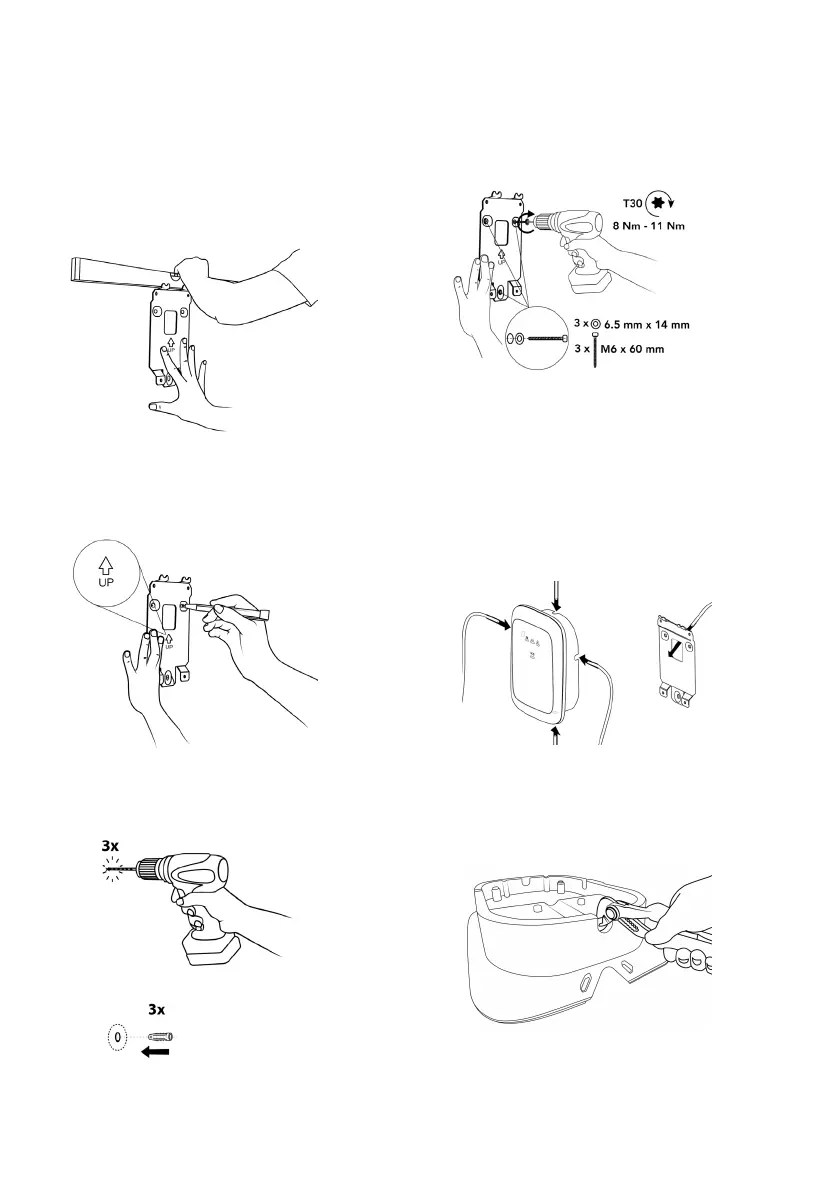

Install wall bracket
Place the wall bracket on the wall and use a
bubble level to align it. Make sure that the
UP arrow on the bracket points upwards.
1. Mark the positions of the three attach-
ment holes on the wall.
2. Prepare the attachment holes.
a. Drill the three attachment holes.
b. Insert wall plugs
3. Mount the wall bracket on the wall using
the three screws M6 x 60 mm and three
washers 6.5 mm x 14 mm.
Prepare main assembly
for installation
1. Prepare main assembly for cable
installation.
a. Choose the suitable routing method for
the supply cables.
b. If using on-wall wiring, remove one of
the four break-out tabs using a set of
pliers.
