48
English

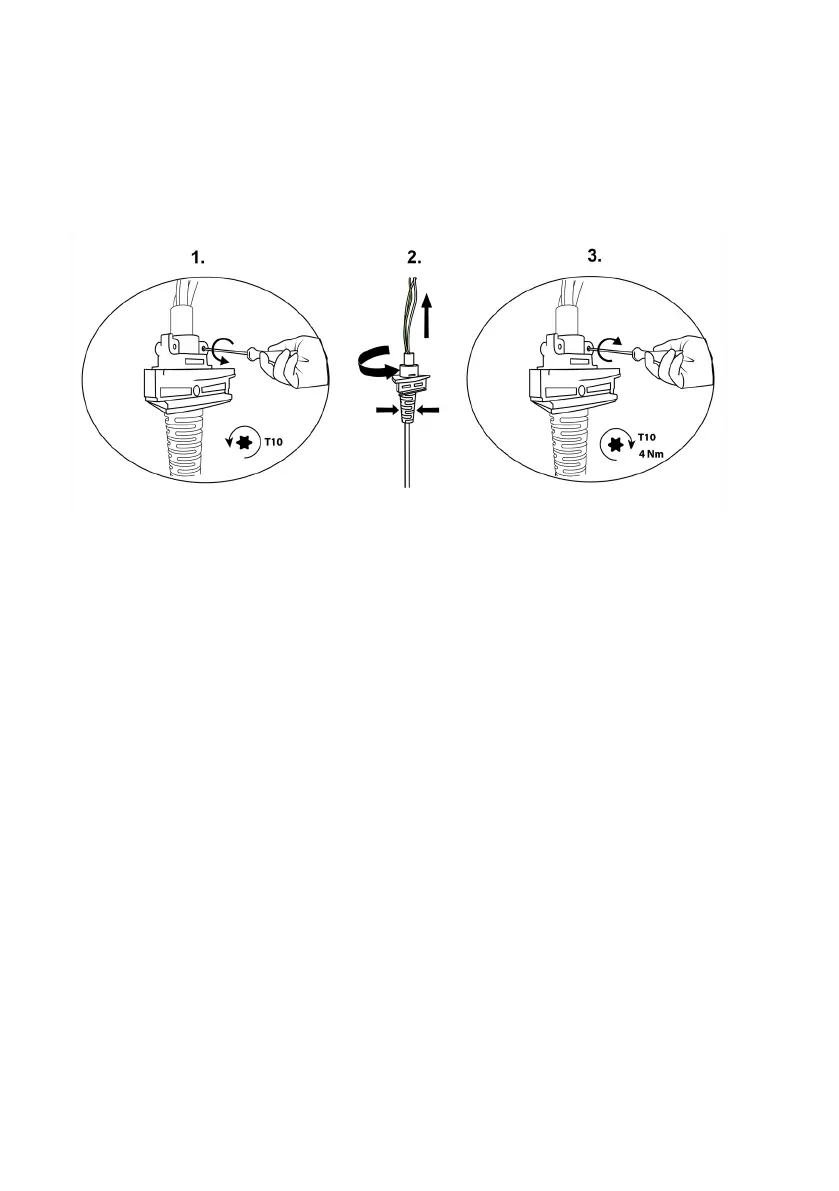

Adjust the length of the charging cable
1. Loosen the two screws of the charging cable strain relief with a Torx 10 screwdriver.
2. Hold the cable and adjust the position of the charging cable holder by turning it counterc-
lockwise.
3. When the desired length is reached, adjust the orientation of the charging cable holder
and tighten the two screws of the strain relief with a torque value of 4 Nm.
4. Adjust the length of the wires as required.
