B. Provided materials

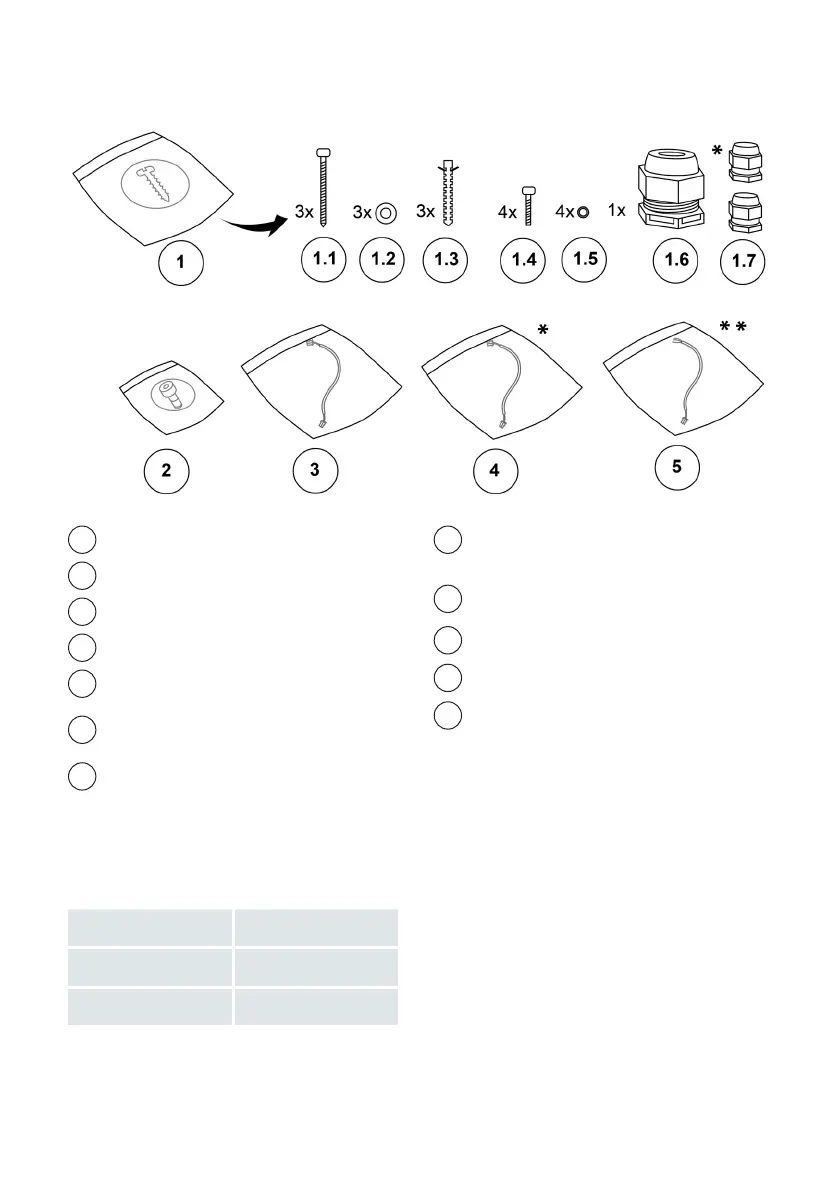

Fastening kit for main assembly
Screws M6 x 60 mm
Plain washers 6.5 mm x 14 mm
Wall plugs 8 mm x 50 mm
Torx screws M6 x 16 mm
Bonded washers
6.6 mm x 11 mm
Cable gland M25
Cable gland M12 (for CT coil cable)
Cable gland M12 (for Ethernet cable)*
Torx screws M4 x 10 mm
for front assembly
HMI cable
RFID cable*
RS485 cable**
1
1.1
1.2
1.3
1.4
1.7
2
3
4
5
1.5
1.6
* For Audi Wallbox plus and Audi Wallbox pro only.
** For Audi Wallbox pro only.
The following table shows the torque values required for installation.
Screw type Torque value
M4 x 10 mm
2.3 - 2.7 Nm
M6 x 16 mm
7.3 - 8.6 Nm
M6 x 60 mm
8 - 11 Nm
