4. Installation instructions
4.1. Prepare for installation
4.1.1. Plan for installation
The following recommendations are a guide to help you plan the installation of the charging station.
Choose location
• Position the charging station, where possible, in a location where it is not exposed to sunlight and
vulnerable to external damage.
• The wall must have a flat structure and must be able to hold a load of at least 100 kg.
• The minimum free space around the charging station is 300 mm.
• The location must allow the charging cable to remain within its bending tolerance.
Note:

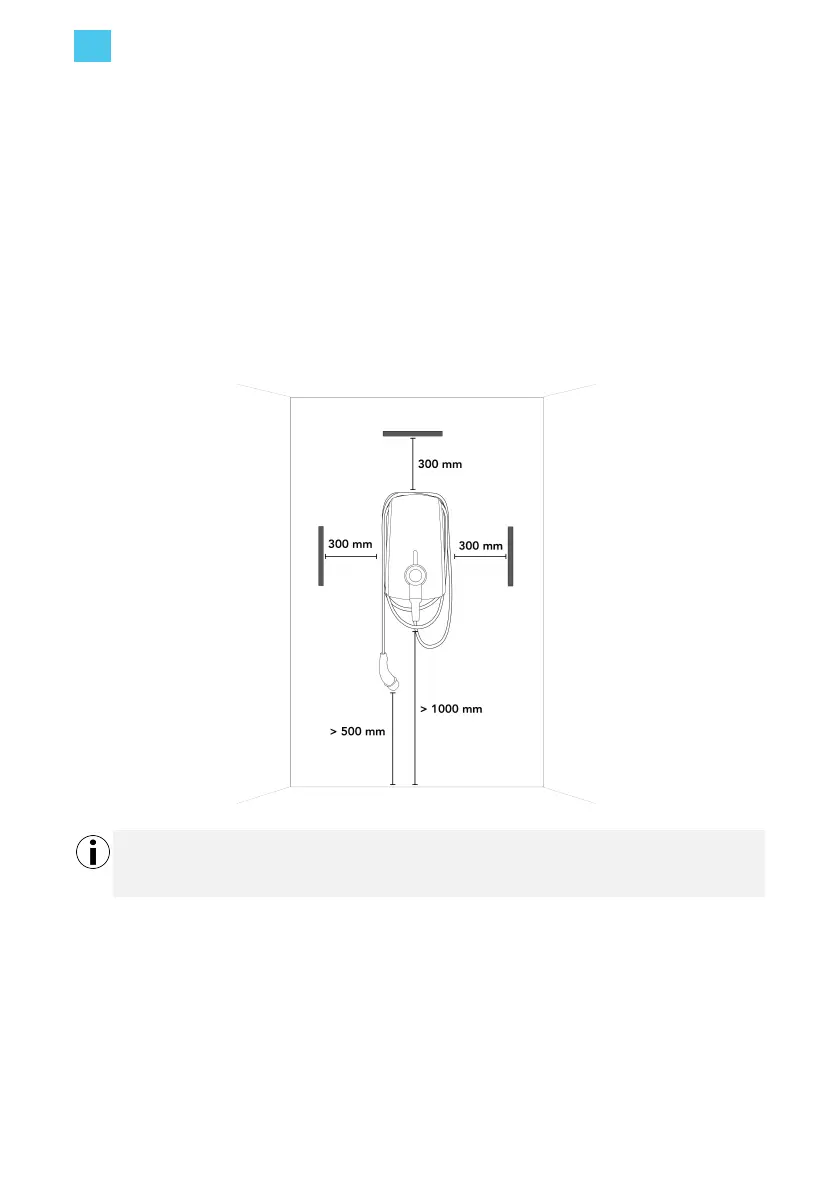

The above illustration indicates a standard installation height. Observe and comply with the local
accessibility regulations.
Pre-installation checklist
• The local installation regulations are identified and are followed.
• All necessary permits are obtained from the local authority that has jurisdiction.
• The existing electrical load has been calculated to find the maximum operating current for the
charging station installation.
• A miniature circuit breaker (MCB) and residual current device (RCD) are installed upstream and
have ratings that correspond to the local power supply as well as to the required charging power.
• All cables match the specifications for the charging station that you are going to install.
• The correct specification of power supply cable has been routed to the installation area, and there
