is sufficient cable length to strip and connect the wires.
• The power supply cable remains within its bending tolerance during and after installation.
• The recommended tools are available on site. See chapter Tools and material required on page
13.
• The plugs, screws, and drill bit used for installing the charging station are suitable for the wall
structure.
• The power supply cable, the optional Smart Charging network cable and the optional EV Ready
cable comply with the specifications for the charging station that you are going to install.

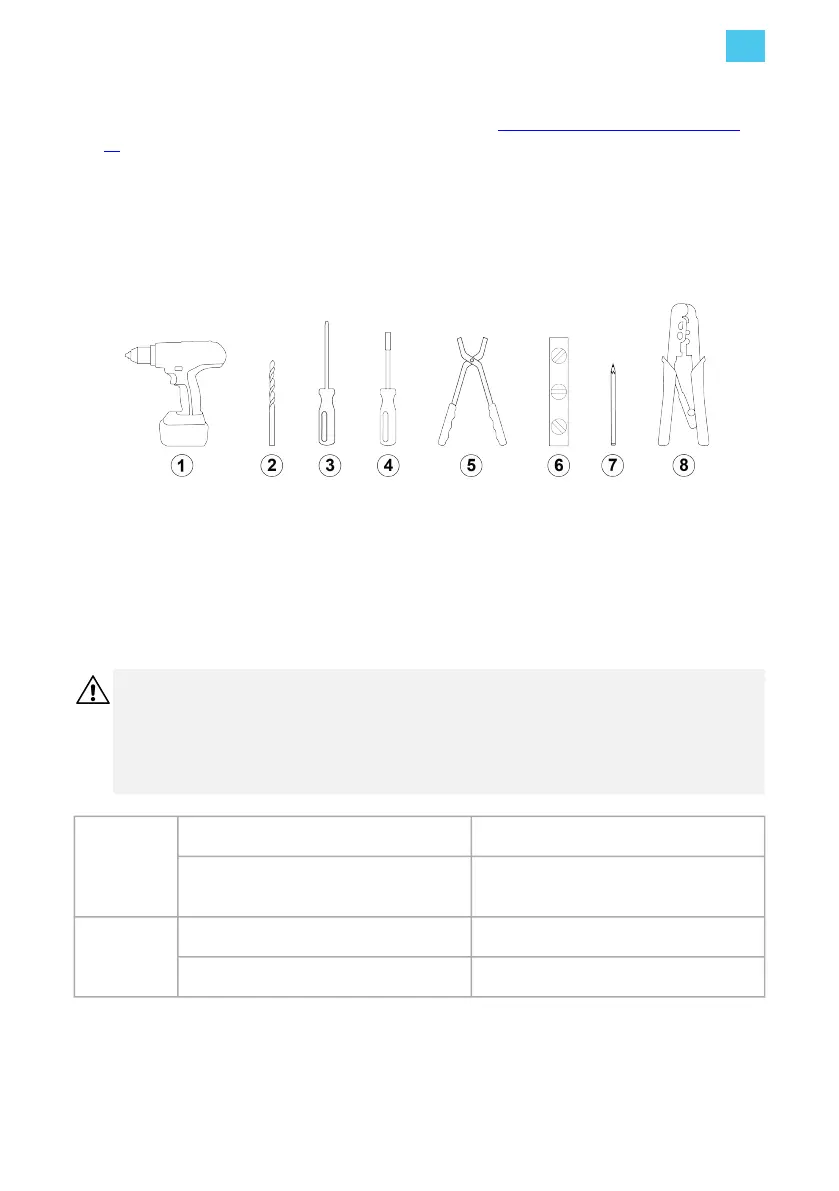

4.1.2. Tools and material required
1. Drill. 5. Wire stripper (power cable).
2. Drill bit 8 mm. 6. Spirit level.
3. Screwdriver (slotted). 7. Pencil.
4. Screwdriver with adapter for Torx bit. 8.
Wire stripper (network cable) (only required
for a Smart Charging connection).
4.1.3. Power supply requirements
DANGER:
Connecting Elvi to the power supply other than as specified in this section can result in
incompatibility of the installation as well as the risk of electric shock, and thus cause damage to
Elvi, and injury or death.
• Only connect Elvi to a power supply in a configuration that is specified in this section.
Earthing
system
TN-system PE-cable
TT-system
IT-system
Earth electrode installed separately (self-
installed)
Power input
(phase)
1-phase 230 V ±10% 50/60 Hz
3-phase 400 V ± 10% 50/60 Hz
4. Installation instructions
EN
13
