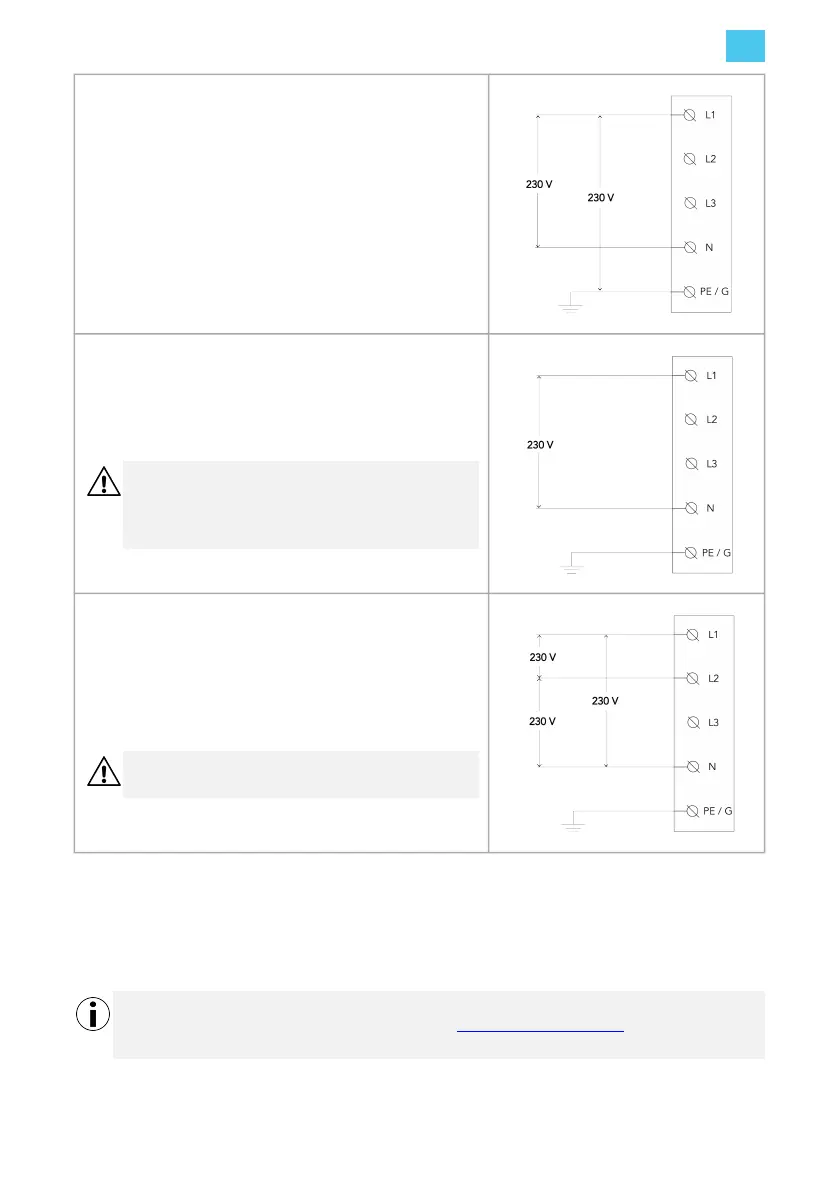

Option 2: 230 V 1-phase with neutral
For 1-phase use of a Wye-connected secondary, only a
single phase (L1 or L2 or L3) and neutral on the grid must
be connected to the L1 and N on the terminal block of the
charging station. This phase voltage must measure 230 V
between line and neutral.
Option 3: 230 V 1-phase without neutral
In this configuration (without neutral and 230 V from line to
line), connect any two lines (L1, L2 or L3) of the grid to L1
and N on the terminal block of the charging station.
WARNING:
In this configuration, the charging station operates
only from a single phase (L1). Do not connect the
remaining phases L2 and L3.
Option 4: 230 V 3-phase without neutral
In this configuration (without a neutral and 230 V from line
to line), connect two lines (L1 and L2) to L1 and L2
positions on the terminal block. Connect L3 to the neutral
position on the terminal block.
CAUTION:
This option is not compatible with all vehicles.
4.1.4. Phase rotation
For charging stations that connect to a 3 phase supply in a Hub-Satellite installation, to avoid
overloading the first phase with one-phase electric vehicles we recommend rotating the phases as
shown below.
Note:
If phase rotation is used you must inform EVBox at www.evbox.com/support so the support
team can update the backend system data.
