*Quick Connector
Using the Internal
5-pt Harness
If the child weighs more than 29.4 kg (65 lbs) or
their shoulders are above the highest harness level,
you MUST use this child restraint as a Booster.
*
To determine which Lower Anchors are on your child
restraint, go to page 17.
WARNING
Child Requirements
Weight: 10 – 29.4 kg (22 – 65 lbs)
Height: 71 – 127 cm (28 – 50 in.)
AND the tops of the child’s ears are at,
or below, the top of child restraint headrest.
Age: At least one year old

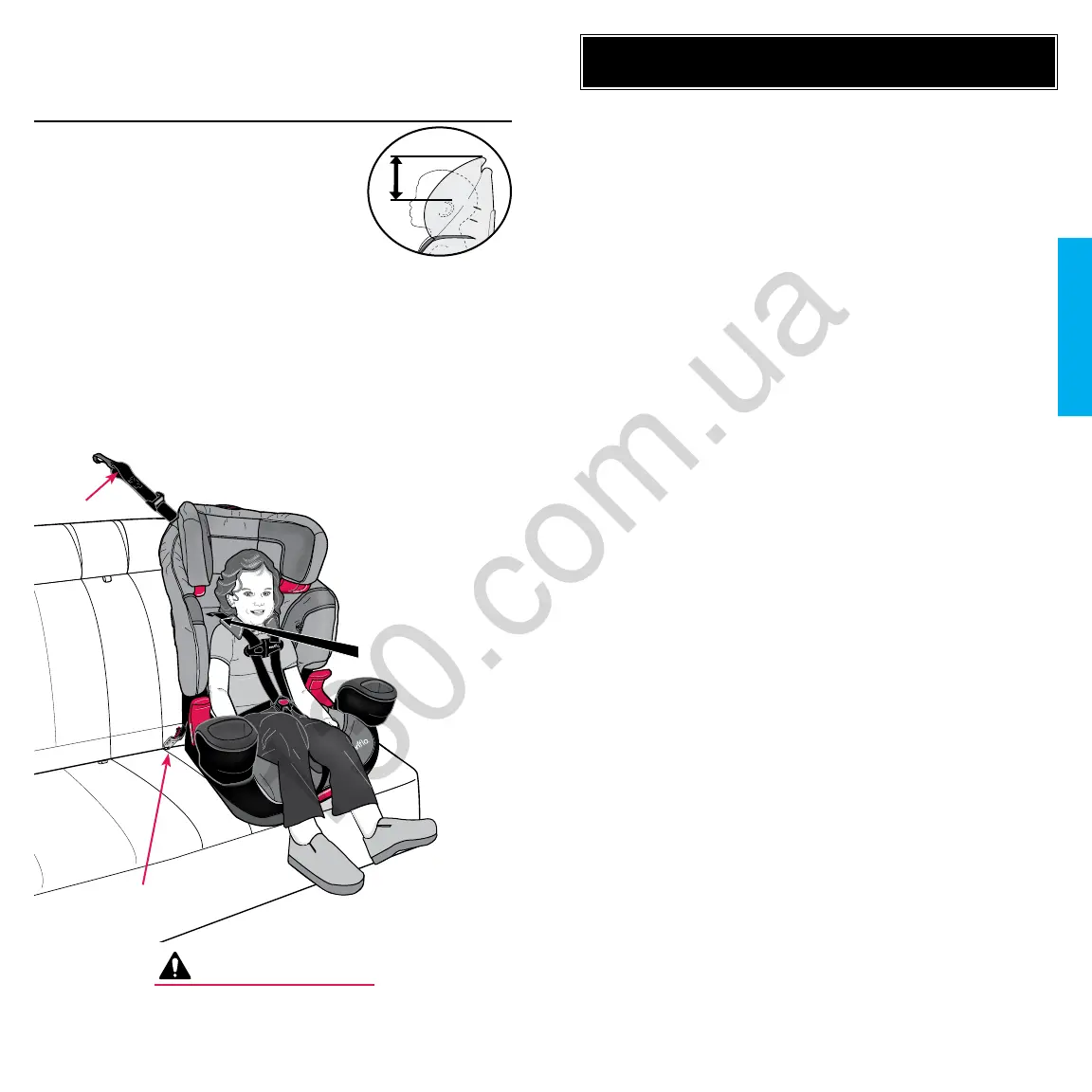

Installation Checklist
1. Secure child restraint to the vehicle seat.
aThe recline stand MUST be used for children
weighing less than 18 kg (40 lbs)
(p. 52).
aChild restraint base sits flat on vehicle seat.
aLocking clip is installed, if necessary (p. 24).
aIf the child weighs 20.4 kg (45 lbs) or LESS,
the child restraint is securely installed with one
of the following methods through the upper
belt path:
• Lower Anchor Hooks* (p. 17)
• Quick Connectors* (shown at left) (p. 20)
• Vehicle Seat Belt (p. 23)
aIf the child weighs MORE than 20.4 kg
(45 lbs), the child restraint is securely installed
with the VEHICLE SEAT BELT ONLY (not Lower
Anchors) through the upper belt path (p. 23).
aTether strap is attached and tightened (p. 19, 22,
or 25).
aHarness Covers are installed if the child weighs
18 kg (40 lbs) or less (p. 54).
2. Place the child in the child restraint.
aThe child’s back and bottom are flat against the
back and bottom surfaces of the child restraint.
aThe tops of the child’s ears MUST be at, or below,
the top of the child restraint headrest.
3. Make necessary adjustments.
aCrotch strap is properly positioned (p. 33).
aHeadrest is adjusted so its bottom is above the
harness. (p. 52).
4. Fasten both buckle tongues. Refer to page 26.
5. Tighten Harness - Position and connect
chest clip.
aHarness covers are installed if the child weighs
18 kg (40 lbs) or less (p. 54).
aHarness straps are snug against the child’s
shoulders, with no slack (p. 27).
aChest clip MUST be at armpit level (p. 27).
6. Check your work.
aTo properly protect the child, the child restraint
MUST NOT move more than 25 mm (1 inch)
from side to side or from front to back at the
upper belt path.
IMPORTANT
When installing this child restraint with LATCH or
the vehicle seat belt, always use the top anchorage
(tether) strap, if a tether anchor is available.
With 5-Point Harness
