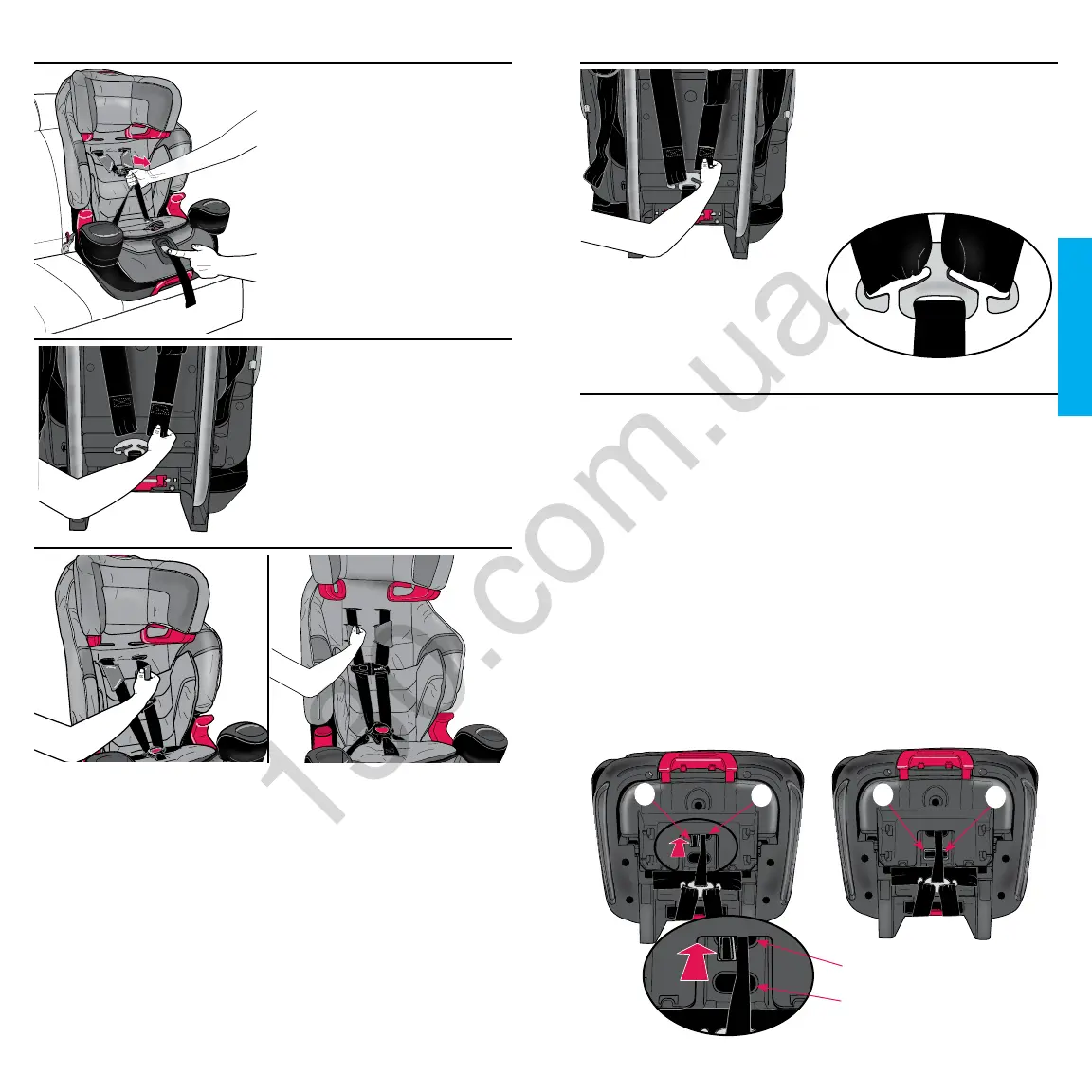

Positioning the Harness Straps
1. Loosen harness
straps.
Actuate the harness
release lever on the front
of the seat while pulling
the harness straps.
buckle
storage
2. Remove both
harness straps from
the splitter plate
on the back of the
child restraint.
4.
Attach harness
straps to splitter
plate.
Attach the loop at the
end of each harness strap
onto the splitter plate.
Positioning the Harness Straps
Positioning the Crotch Strap
IMPORTANT: Make sure
both harness straps are
installed completely on the
splitter plate, as shown.
With 5-Point Harness
3.
Move harness straps.
Remove both harness straps from the slots and feed
them into the new slot, as shown.
Pull the harness straps to the back of the child
restraint.
Note: Straps must be positioned at the child’s shoulder
level or slightly above. Harness Covers MUST be
installed when using the 5-point harness for children
weighing 18 kg (40 lbs) or less (see page 54).
IMPORTANT: When inserting harness straps through the
slots in the seat pad, make sure you route them correctly
through their corresponding slots in the seat shell.
To reposition the crotch strap, first turn the child
restraint upside down. Turn the crotch strap harness
anchor
A
sideways and push it through the slot in the
bottom of the seat shell
B
.
Reposition the harness anchor into the other slot. Make
certain the harness anchor is properly seated against the
seat shell
B
.
Note: The crotch strap should be snug against the child.
Choose the slot that is closest to the child AND the most
comfortable for the child but NEVER under the child’s
bottom.
IMPORTANT: When inserting the crotch strap harness
anchor through the slot in the seat pad, make sure you
route it correctly through its corresponding slot in the seat
shell.
Front slot
Rear slot
B
B
A
A
