20 21
IMPORTANT:
• Some vehicle manufacturers have lower maximum
weight ratings for LATCH anchors. Consult your vehicle
owner’s manual, or call the vehicle manufacturer, to
confirm the limits on your vehicle’s LATCH anchors.
• If you are using the vehicle seat belt to secure the
child restraint, DO NOT use the Quick Connectors.
• Install this child restraint with the vehicle seat belt
(NOT Quick Connectors) if the child weighs more
than 20.4 kg (45 lbs).

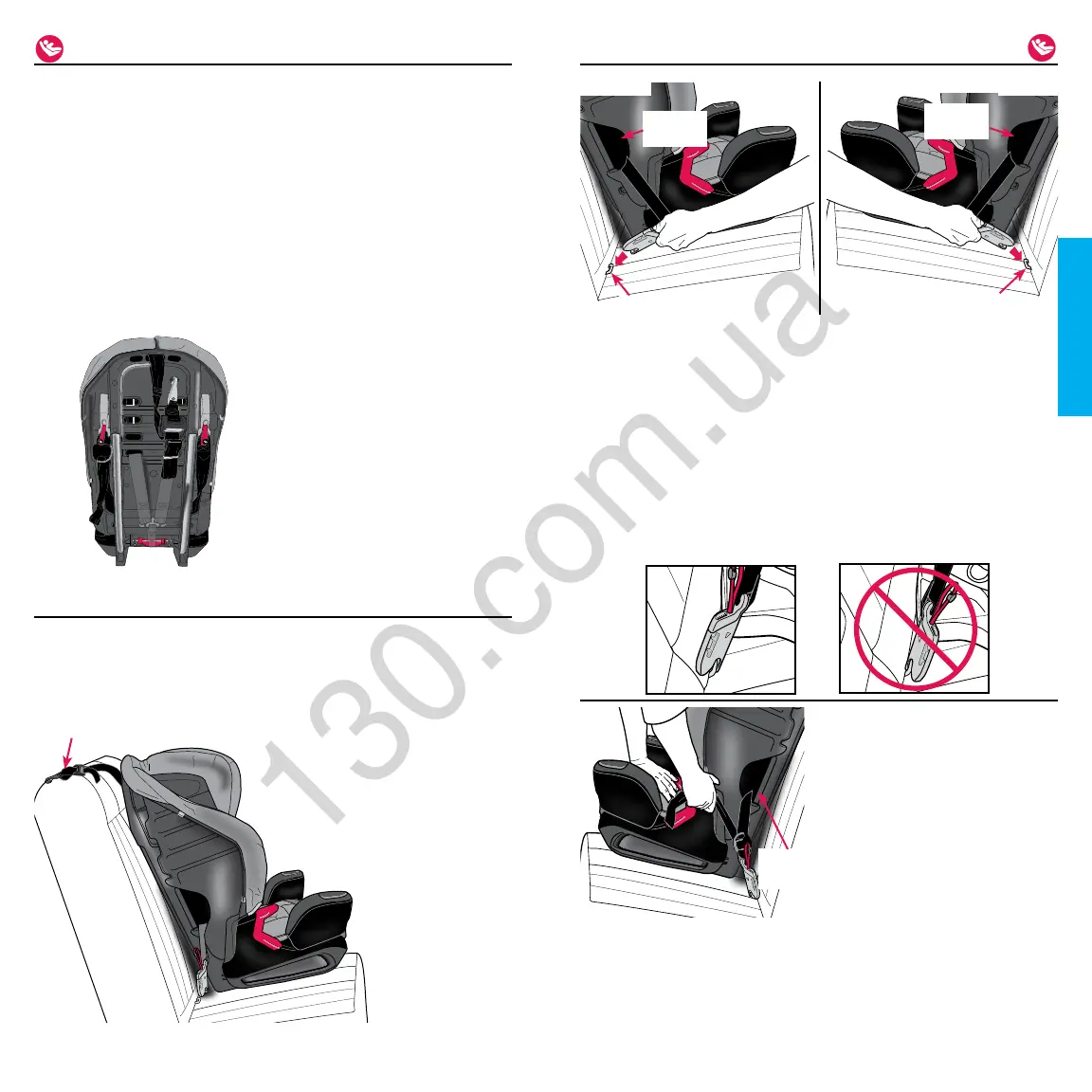

1.
Disconnect Tether
Hook and Quick
Connectors from the
back of the child
restraint.
2.
Place the child
restraint in position.
Set child restraint on
vehicle seat in forward-
facing position. ALWAYS
make sure bottom of
child restraint sits flat
on vehicle seat and
positioned, as shown. Lay
the Tether Strap over the
back of the vehicle seat.
Tether
Strap
Installation with Quick Connectors
With 5-Point Harness
Installation with Quick Connectors
Lower Anchor Bar
Lower Anchor Bar
Near Side
3. Attach Quick Connectors.
With the Quick Connector harness through the upper
belt path, as shown above, push a Quick Connector
onto the Lower Anchor Bar on each side of the child
restraint.
Note: You may need to vary the angle of the Quick
C
onnectors, as shown above, to attach to the anchor.
IMPORTANT: Make sure both Quick Connectors are
facing upward, as shown, and the straps are not
twisted.
Far side
4. Secure the child
restraint.
Using your full weight,
push the child restraint
firmly into the vehicle seat
while pulling up on the
Quick Connector Strap to
tighten.
Upper
Belt Path
IMPORTANT: To properly secure this child restraint, it
MUST NOT move more than 25 mm (1 inch) from side to
side or from front to back at the upper belt path. If you
can not tightly secure the child restraint, try again, move it
to another location, or install with vehicle seat belt.
Upper
Belt Path
Upper
Belt Path
Correct Incorrect
