Evenflo Evolve - Restraint Adjustments and Component Removal; Adjusting Headrest and Recline Position

52 53
To recline the base, tilt the child restraint back, then pull
the recline handle
A
to release the recline stand
B
.
buckle
storage

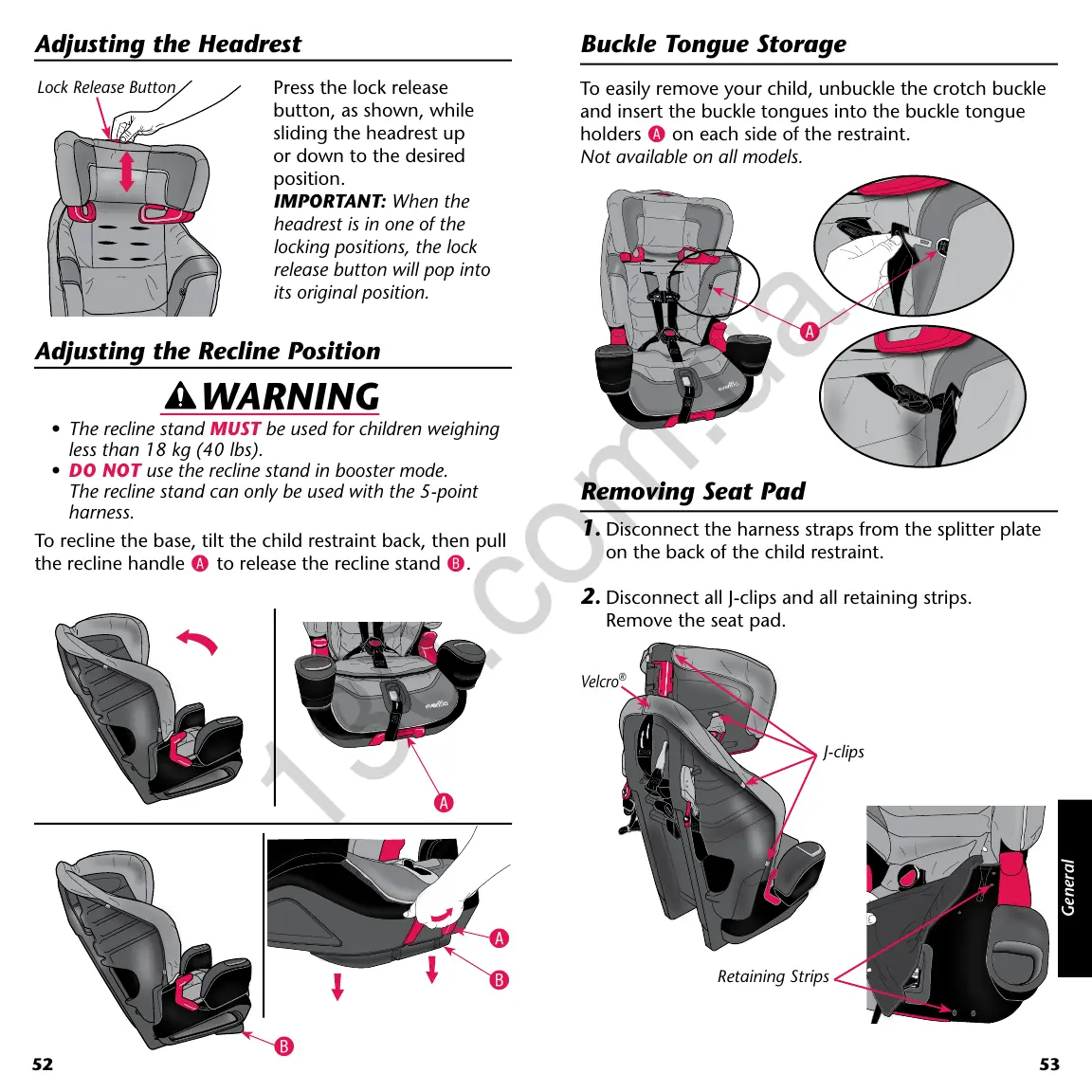

Adjusting the Headrest
Lock Release Button
Press the lock release
button, as shown, while
sliding the headrest up
or down to the desired
position.
IMPORTANT: When the
headrest is in one of the
locking positions, the lock
release button will pop into
its original position.
Adjusting the Recline Position
General
A
A
B
WARNING
• The recline stand MUST be used for children weighing
less than 18 kg (40 lbs).
• DO NOT use the recline stand in booster mode.
The recline stand can only be used with the 5-point
harness.
B
1. Disconnect the harness straps from the splitter plate
on the back of the child restraint.
2. Disconnect all J-clips and all retaining strips.
Remove the seat pad.
Retaining Strips
J-clips
Velcro
®
buckle
storage
Buckle Tongue Storage
Removing Seat Pad
Storage
Buckle
To easily remove your child, unbuckle the crotch buckle
and insert the buckle tongues into the buckle tongue
holders
A
on each side of the restraint.
Not available on all models.
A
