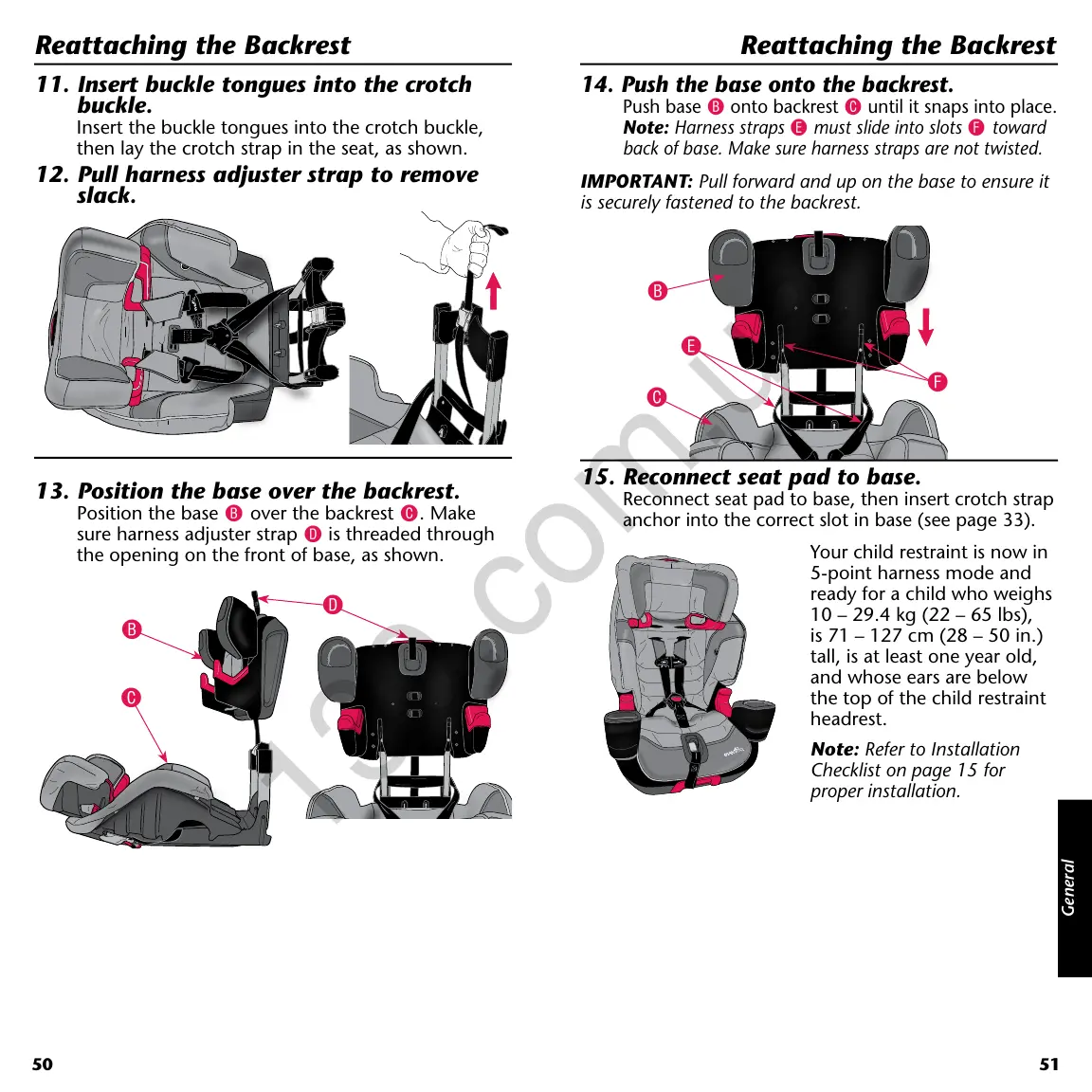

11. Insert buckle tongues into the crotch
buckle.
Insert the buckle tongues into the crotch buckle,
then lay the crotch strap in the seat, as shown.
12. Pull harness adjuster strap to remove
slack.
13. Position the base over the backrest.
Position the base
B
over the backrest
C
. Make
sure harness adjuster strap
D
is threaded through
the opening on the front of base, as shown.
14. Push the base onto the backrest.
Push base
B
onto backrest
C
until it snaps into place.
Note: Harness straps
E
must slide into slots
F
toward
back of base. Make sure harness straps are not twisted.
15. Reconnect seat pad to base.
Reconnect seat pad to base, then insert crotch strap
anchor into the correct slot in base (see page 33).
Reattaching the Backrest Reattaching the Backrest
B
C
General
D
E
F
B
C
Your child restraint is now in
5-point harness mode and
ready for a child who weighs
10 – 29.4 kg (22 – 65 lbs),
is 71 – 127 cm (28 – 50 in.)
tall, is at least one year old,
and whose ears are below
the top of the child restraint
headrest.
Note: Refer to Installation
Checklist on page 15 for
proper installation.
IMPORTANT: Pull forward and up on the base to ensure it
is securely fastened to the backrest.
