Shallow Well Installation (continued)
5

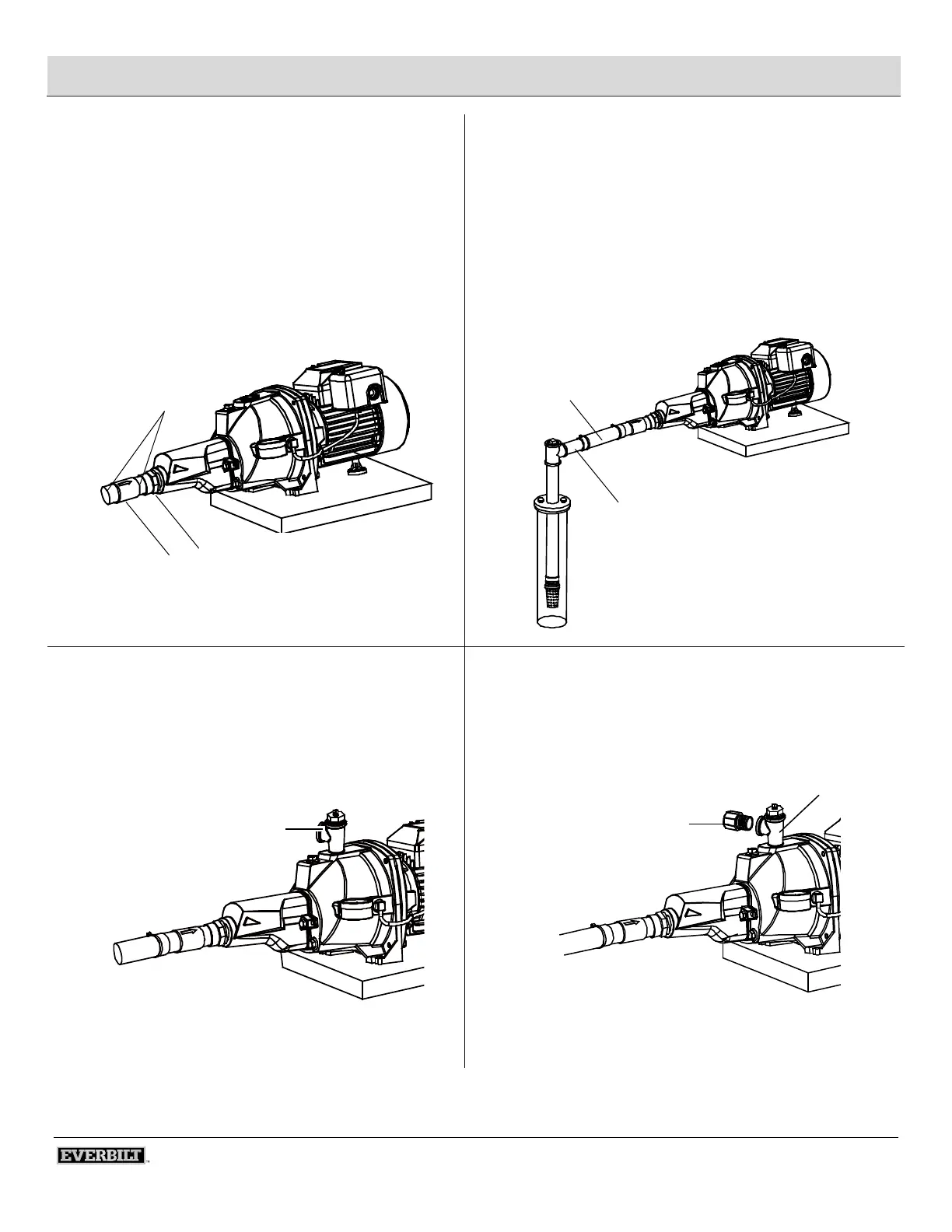

Connect the (E) PVC or flexible pipe to
the pump inlet 6
Connecting the PVC Pipe from the pump
to the PVC Pipe coming from the well.

Position the pump as close to the well as possible.
 Connect a section of 1-1/4 in. PVC or Flexible pipe to the pump
inlet.
 Attach a (J) 1-1/4 in. check valve (sold separately) to the other
end of the PVC or Flexible pipe.
 Attach another section of 1-1/4 in. PVC or flexible pipe to the
other end of the check valve.
 Measure the distance from the PVC pipe extended from the check
valve off the pump to the PVC pipe extending from the priming tee
from the well. This will be the length of PVC or flexible pipe
needed to connect the pump to the well.
 Using (I) Flexible PVC couplings, connect both ends of the PVC pipe
to the pump and well end.
 Tighten the flexible pipe with clamps on each end.
 Ensure that the PVC or Flexible pipe slopes slightly downward
toward the well to prevent air trapping in the pipe.
7
Connecting a (K ) 1 in. discharge tee
(sold separately) to the pump outlet 8
Connecting a (L) 1 in. male PVC adaptor
to the discharge tee on the pump outlet
 Wrap thread tape around threads of a 1 in. discharge tee (sold
separately).
 Using a pipe wrench, thread the 1 in. discharge tee into the
discharge hole on the top of the pump.
 Wrap thread tape around the threads of a 1 in. male PVC adapter
(sold separately).
 Thread the adapter into the discharge tee.
(P) 1 1/4 in. Male Adapter
(E) PVC
(J) Check valve
(E) PVC or Flexible pipe to connect
pump piping to well piping
(I) Flexible Couplings
(K) 1 in. discharge tee
(L) 1 in. male PVC adaptor
(K) 1 in. discharge tee
