6. REPEAT ALL OF THE ABOVE STEPS FOR THE LEFT HAND SERVERY WITH WOK BURNER.
5. AFTER ATTACHING, FULLY TIGHTEN ALL FOUR OF THE SCREWS.
WITH TWO MORE M5 SCREWS (PART 14).
4. ALIGN THE REMAINING TWO HOLES WITH THE NUTSERTS IN THE BARBECUE CARCASS. ATTACH
3. REPEAT THIS STEP FOR THE TOP HOLE AT THE REAR END OF THE SERVERY.
AND SCREW IT INTO THE NUTSERT. DO NOT FULLY TIGHTEN.
2. PLACE 1 x M5 SCREW (PART 14) THROUGH THE TOP HOLE AT THE FRONT OF THE SERVERY,
SEE ENLARGED VIEW.
1. ALIGN THE HOLES IN THE SERVERY (PART 5) WITH THE NUTSERTS IN THE BARBECUE CARCASS.

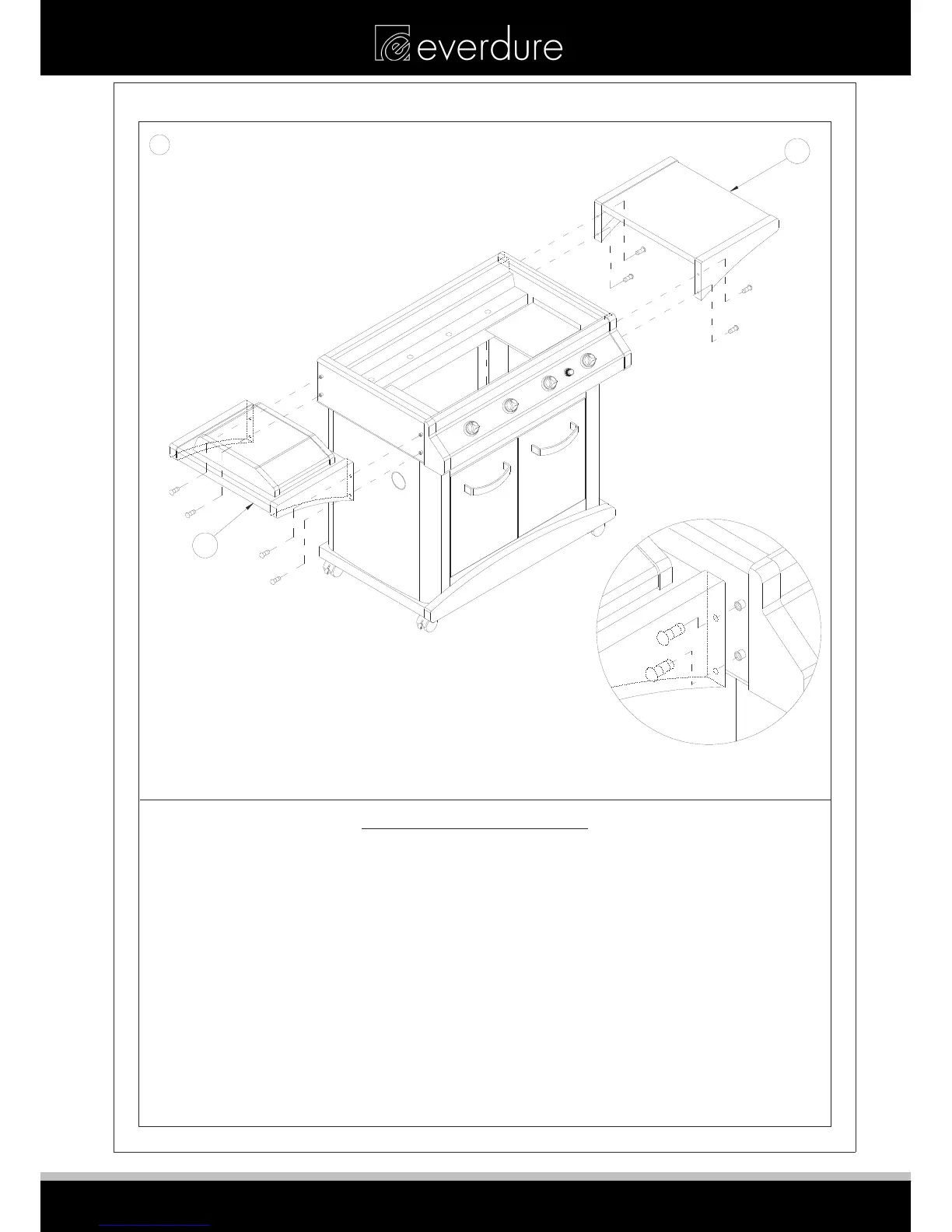

FITTING OF THE SERVERIES
FLINDERS, NORFOLK, DAINTREE & KIMBERLEY TROLLEY ASSEMBLY
J
THE BARBECUE CARCASS
FITTING OF SERVERIES TO
14
6
14
14
14
5
NOTE: FOLLOW THE INSTRUCTIONS SUPPLIED WITH THE WOK BURNER AND INSTRUCTION K
FOR GAS CONNECTION AND TESTING.
23
