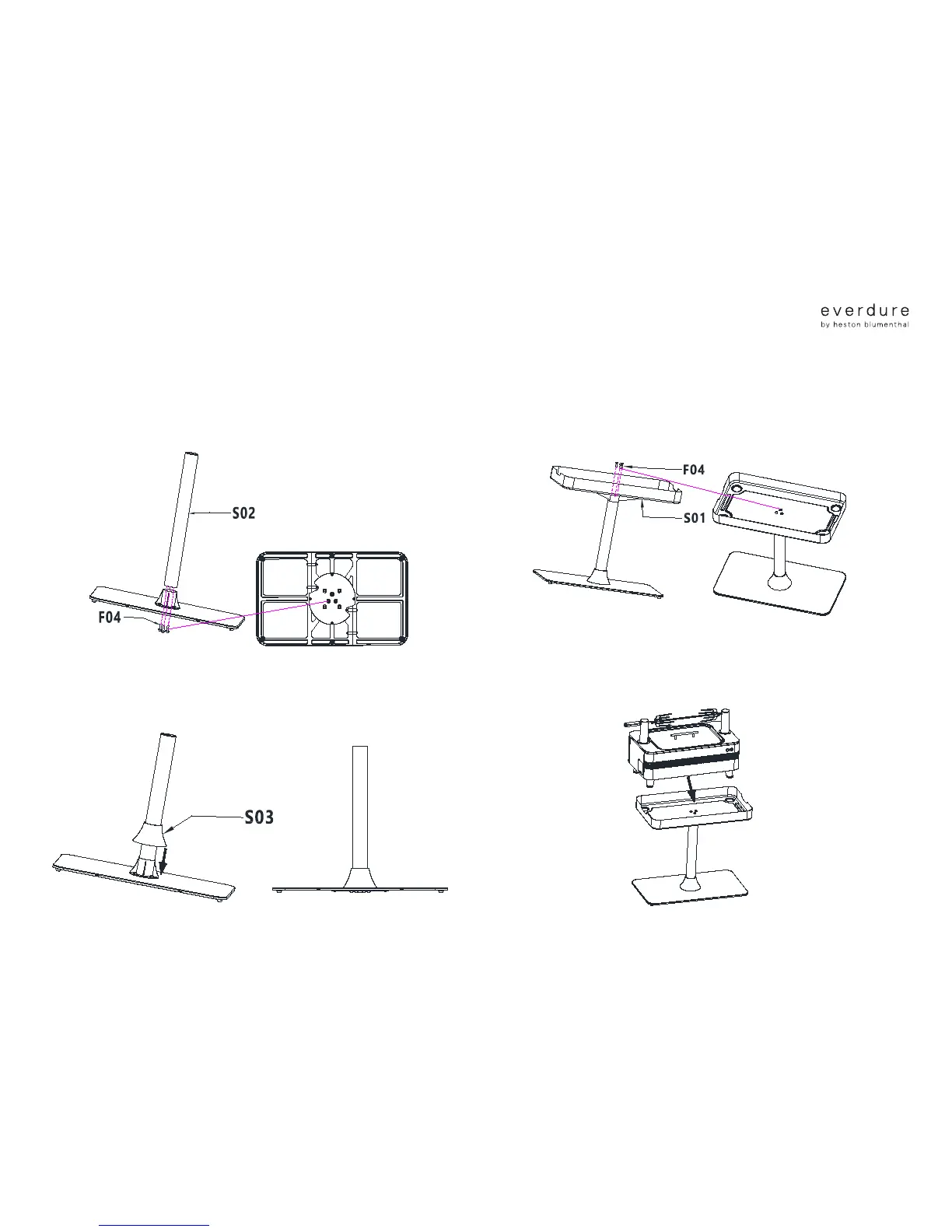

STEP 10
/ Place the pedestal pole (S02) into the pole support. Align the three inner holes and x together
using three M8x1in (25mm) screws (F04). Fully tighten.
STEP 11
/ Place the pedestal pole cover (S03) over the pole and place on the pole support.
STEP 12
/ Place the pedestal top (S01) over the pole. Adjust the position of the pedestal top so it is
directly over the pedestal base, align the three holes and x together using three M8x1in
(25mm) screws. Leave slightly loose.
STEP 13
/ To place the barbeque on the pedestal (when supplied), pick it up from the centre of the
bottom of the shorter sides, so that when placed on the pedestal top, hands are positioned in
the slots at the pedestal top sides. Always take care not to trap ngers under the barbeque. Do
not do when the barbeque is hot.
