Assembly, Operation & Maintenance Instructions
STEP 06

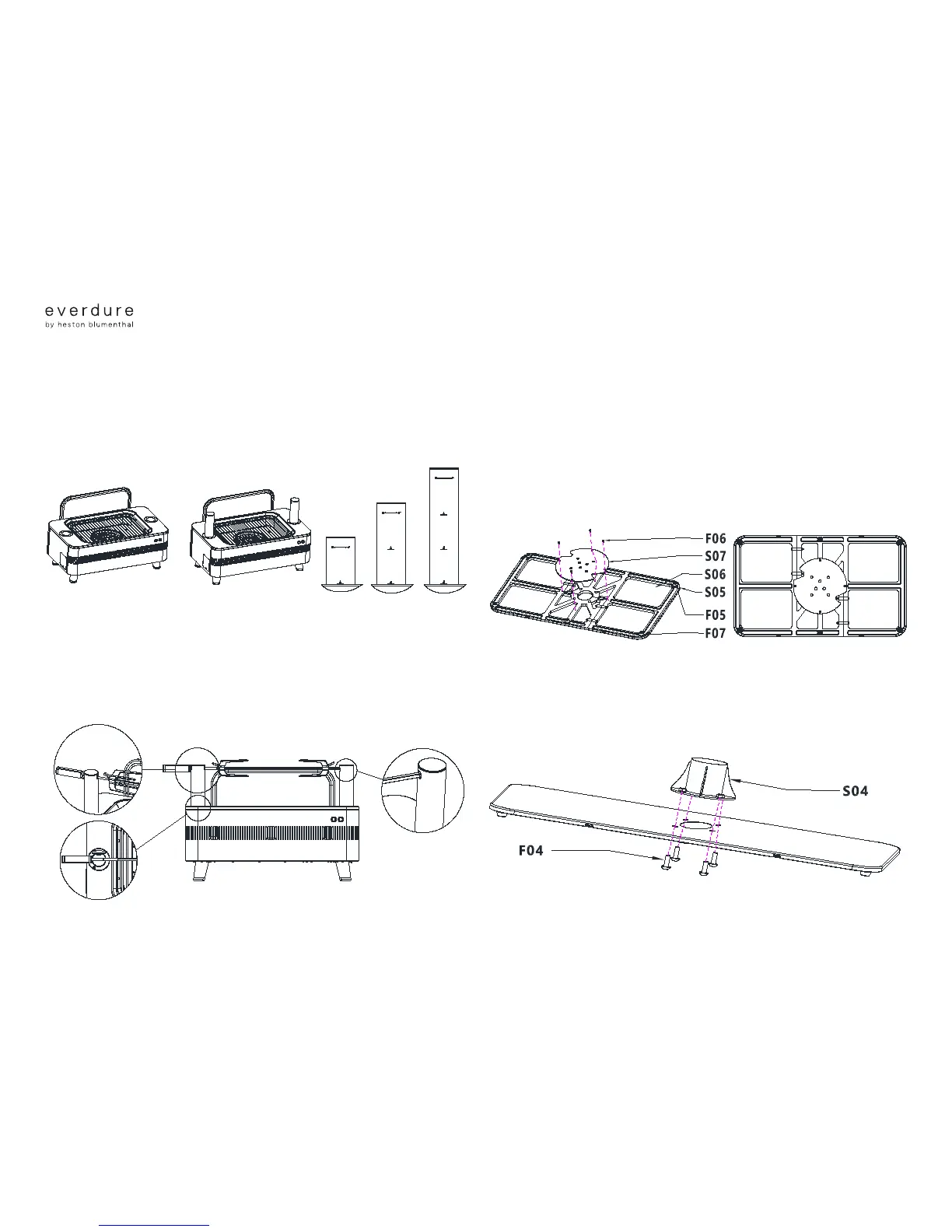

/ To extend the rotisserie poles, rst press and release them so the rst section pops out from
the barbeque. Pull the poles up and rotate clockwise to allocate the poles in one of the 3 height
settings. The pole to the right contains the rotisserie motor.
STEP 07
/ Take the rotisserie rod with the food attached and place the pointed end in the motor hole at
the top of the right hand side pole. Lever the handle side of the rod down into the slot of the
left hand pole (take care the slot in the rod allocates to the keyway) and close the pole cover.
Pedestal Assembly (HBCE1BS)
STEP 08
/ Place the pedestal base cover (S05) face down on a at, clean surface and place the pedestal
base (S06) inside. If not already tted, attach the six rubber feet (F07) onto the pedestal
base with six M3x0.4 (10mm) screws (F05). Place the pedestal support bracket (S07) onto
the bottom of the pedestal base (centred on the pole hole). Align the four outer holes and x
together using four M4x0.3in (8mm) screws (F06). Tighten fully.
STEP 09
/ Place the pole support on top of the pedestal base (centred on the pole hole). Centre over the
pole hole and align the 4 central holes. Fix together using four M8x1in (25mm) screws. Tighten
fully.
