Interior Equipment
A hinged door below the sink provides access to
the forward shbox macerator pump, the over-
board discharge macerator pump and thru-hull
valves for the forward hatch drains, shbox mac-
erator and head discharge system.
12.2 Marine Head System
Your boat is equipped with an electric marine toilet
(head) and holding tank as standard equipment.
A momentary rocker switch in the panel on the
head compartment bulkhead controls the lling
and ushing of the toilet. Flush water is supplied
by the freshwater system. Before using, make
sure the freshwater system is activated and press
the ush button briey to wet the inside of the
bowl. After use, activate the pump to discharge
the waste to the holding tank and empty the bowl.
Refer to the toilet manufacturer owner’s manual
for more information on the operation and main-
tenance of the marine head.
Holding Tank and Optional Overboard Dis-
charge Pump
The holding tank is located in the bilge. You should
monitor the uid level in the tank and do not ush
the toilet when the tank is full. The holding tank
must either be pumped out by an approved waste
dumping station through the waste deck tting or
be pumped overboard with the optional macerator
discharge pump, when legal to do so.
A switch with a key activated lockout is located in
the head switch panel. The overboard macerator
discharge pump is in the forward bilge below the
sink. The discharge valve is in the bilge near the
pump. The pump discharges holding tank waste to
a thru-hull tting in the hull below the waterline.
To operate the overboard discharge pump, make
sure the thru-hull valve is open. Then turn the
key switch in the panel to the ON position. Press
and hold the momentary button starboard of the
key switch to activate the pump.
Monitor the uid level in the holding tank as it is
pumped out. When pumping is complete, release
the button, close the pump out thru-hull valve and
turn the key switch o. Remove the key from the
switch and store in a safe location.

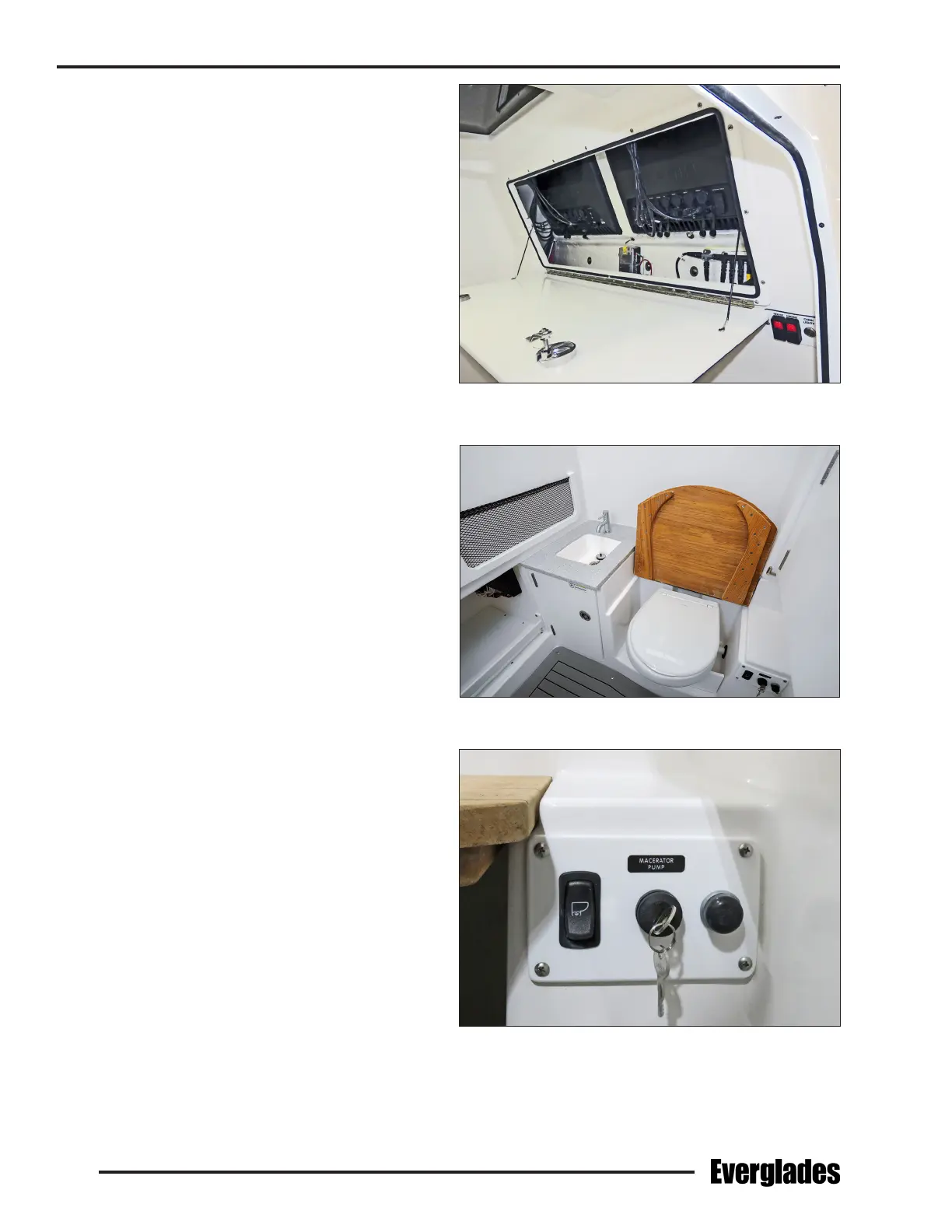

Marine Toilet
