Schematics

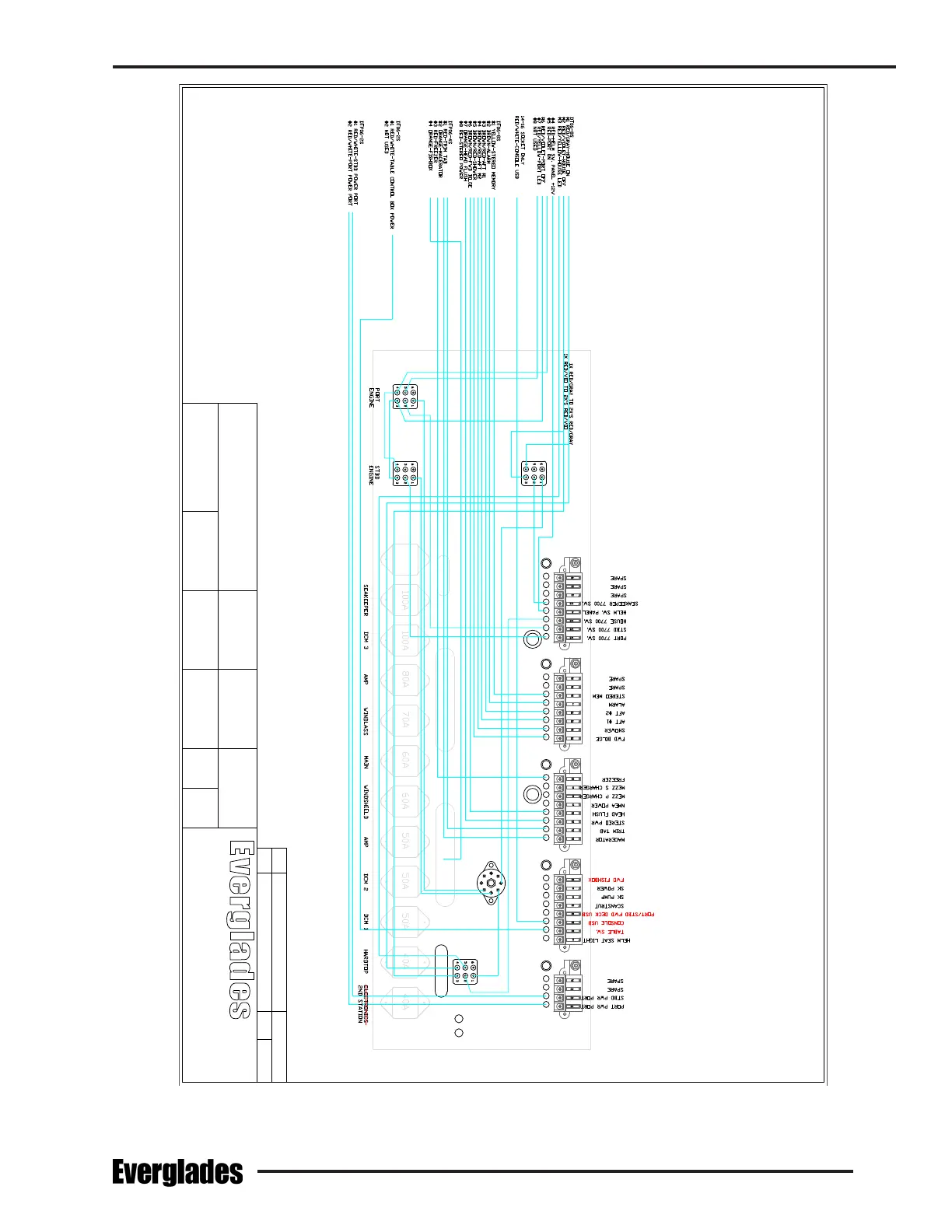

Board DCM Fwd Console Mercury Seakeeper MY24 335CC - 3
APPR BY
DESCRIPTION
DATE
Scale:
Drawn by:
Appr by: Chkd by:
Sheet:
Dwg No:
Date:
Title:
Model: Part No.
X
PP
X
REV
RJ Dougherty Associates
544 S Airpark rd.
Edgewater, FL 32132-3043
386-4092202
NTS
335CC
3 OF 3
A
ITEM DESCRIPTION
QTY
WIRE DESCRIPTION
FEET
800-10343-00 WIRE, 6AWG UL TINNED, RED
9
3
4
800-10342-00 WIRE, 6AWG UL TINNED, BLACK
800-10345-00 WIRE, 8AWG PRIMARY RED
800-10435-00 WIRE, CABLE BATTERY RED 2AWG
8
800-10506-00 LUG CLOSED END 6AWG 3/8"
4
4
2
800-10508-00
800-10475-00
800-10498-00 LUG CLOSED END 2AWG 3/8"
8
RING CLOSED END 8AWG 3/8"
LUG CLOSED END 6AWG 5/16"
Board, DCM Fwd Console, Mercury,
Seakeeper, MY24, 335CC
800-10830-00 CIRCUIT BREAKER, PANEL MOUNT, 40AMP
2
3
2
800-10837-00 CIRCUIT BREAKER, PANEL MOUNT, 50AMP
800-11179-00 CIRCUIT BREAKER, PANEL MOUNT, 60AMP
4
1
5
1
800-11178-00 FUSE BLOCK,ST BLADE COMPACT, 8 CIRCUITS
800-11322-00
800-10834-00 BUSS BAR, SINGLE POST, 3/8"
800-10835-00 BUSS BAR, SINGLE POST, W/8 POSITION 5/16"
1
810-10838-00 DCM 12V, 010-02219-03
1
810-10709-00 TERMINATOR MALE N2K
1
1
810-10853-00 GARMIN T CONNECTOR MULTI
810-10896-00 TERMINATOR FEMALE N2K
710-12342-00 BOARD ONLY, DCM FORWARD CONSOLE
1
1
400-10758-00 HARNESS PICO C4 MODULE WIRING
2
800-11460-00 MRBF TERMINAL FUSE 150A
2
800-10850-00 FUSE BLOCK TERMINAL 30-300A
FUSE BLOCK,ST BLADE COMPACT, 4 CIRCUITS
1
800-11108-00 BUSS BAR, 600A (4) 3/8", 16 STUDS
1
800-11487-00 CIRCUIT BREAKER, PANEL MOUNT, 70AMP
1
800-11336-00 CIRCUIT BREAKER, PANEL MOUNT, 80AMP
2
800-11180-00 CIRCUIT BREAKER, PANEL MOUNT, 100AMP
4
800-10828-00 BATTERY SWITCH MLB 7700
1
800-11068-00 SOLENOID 250VAC
2
800-11369-00 SI-ACR
1
810-10853-00 T-CONNECTOR NMEA
1
810-10660-00 NMEA N2K STARTER KIT
2
810-10855-00 DROP CABLE NMEA 2000 .5M 270300
1
800-11254-00 RELAY SPST 40A 12V
1
810-10897-00 CONNECT 50, 010-02225-10
410-50070-00
18" PIGTAIL FROM STBD SIDE OF DCM BOARD
18" PIGTAIL FROM STBD SIDE OF DCM BOARD
160" PIGTAIL FROM STBD SIDE OF DCM BOARD
160" PIGTAIL FROM STBD SIDE OF DCM BOARD
18" PIGTAIL FROM STBD SIDE OF DCM BOARD
18" PIGTAIL FROM STBD SIDE OF DCM BOARD
