Everglades 335 CC - Board DCM Fwd Console Yamaha MY24 335 CC - 1

192
Schematics

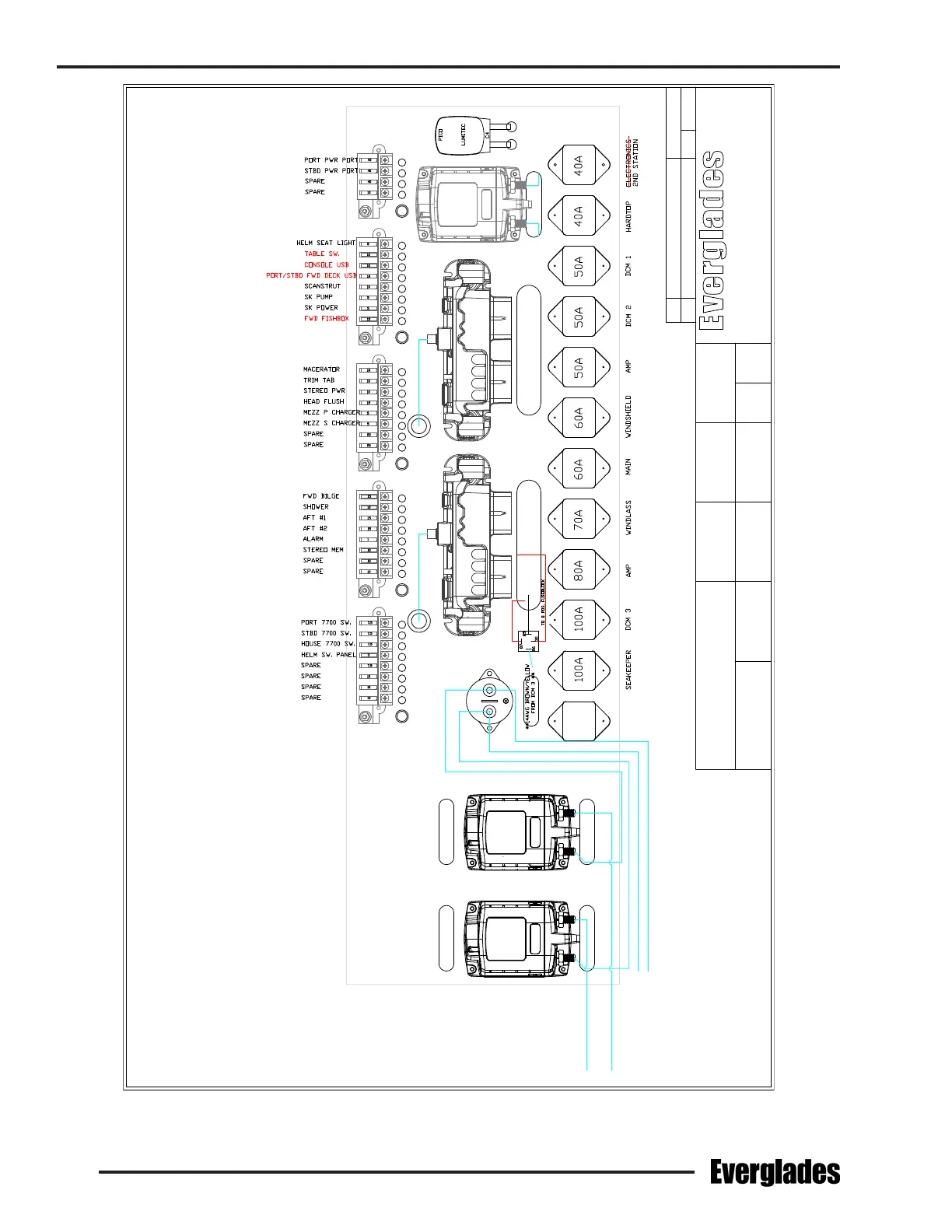

Board DCM Fwd Console Yamaha MY24 335CC - 1
Board, DCM Fwd Console, Yamaha, MY24, 335CC
12/4/2023
APPR BY
DESCRIPTION
DATE
Scale:
Drawn by:
Appr by: Chkd by:
Sheet:
Dwg No:
Date:
Title:
Model: Part No.
X
PP
X
REV
RJ Dougherty Associates
544 S Airpark rd.
Edgewater, FL 32132-3043
386-4092202
NTS
335CC
1 OF 3
A
STBD ENGINE
TO BATTERY
PORT ENGINE
TO BATTERY
HOUSE
3/8" EYE STBD START BATTERY (+)
DCM #001 DCM #003
3/8" EYE STBD ENGINE (+) 182" 1OT
3/8" EYE 3/8" EYE 3/8" EYE 3/8" EYE
3/8" EYE 3/8" EYE
24" 2AWG RED 18" 2AWG RED 24" 2AWG RED 24" 2AWG RED
3/8" EYE PORT START BATTERY (+)
3/8" EYE PORT ENGINE (+) 200" 1OT
ITEM DESCRIPTION
QTY
WIRE DESCRIPTION
FEET
800-10343-00 WIRE, 6AWG UL TINNED, RED
9 3
4
800-10342-00 WIRE, 6AWG UL TINNED, BLACK 800-10345-00 WIRE, 8AWG PRIMARY RED 800-10435-00 WIRE, CABLE BATTERY RED 2AWG
8
800-10506-00 LUG CLOSED END 6AWG 3/8"
4 4
2
800-10508-00 800-10475-00 800-10498-00 LUG CLOSED END 2AWG 3/8"
8
RING CLOSED END 8AWG 3/8"
LUG CLOSED END 6AWG 5/16"
410-50065-00
010-02225-10
800-10830-00 CIRCUIT BREAKER, PANEL MOUNT, 40AMP
2
3
2
800-10837-00 CIRCUIT BREAKER, PANEL MOUNT, 50AMP 800-11179-00 CIRCUIT BREAKER, PANEL MOUNT, 60AMP
4
1
5
1
800-11178-00 FUSE BLOCK,ST BLADE COMPACT, 8 CIRCUITS 800-11322-00 800-10834-00 BUSS BAR, SINGLE POST, 3/8" 800-10835-00 BUSS BAR, SINGLE POST, W/8 POSITION 5/16"
1
810-10838-00 DCM 12V, 010-02219-03
1
810-10709-00 TERMINATOR MALE N2K
1 1
810-10853-00 GARMIN T CONNECTOR MULTI 810-10896-00 TERMINATOR FEMALE N2K
710-12342-00 BOARD ONLY, DCM FORWARD CONSOLE
1 1
400-10758-00 HARNESS PICO C4 MODULE WIRING
FUSE BLOCK,ST BLADE COMPACT, 4 CIRCUITS
1
800-11108-00 BUSS BAR, 600A (4) 3/8", 16 STUDS
1
800-11487-00 CIRCUIT BREAKER, PANEL MOUNT, 70AMP
1
800-11336-00 CIRCUIT BREAKER, PANEL MOUNT, 80AMP
2
800-11180-00 CIRCUIT BREAKER, PANEL MOUNT, 100AMP
3
800-10828-00 BATTERY SWITCH MLB 7700
1
800-11068-00 SOLENOID 250VAC
1
810-10853-00 T-CONNECTOR NMEA
1
810-10660-00 NMEA N2K STARTER KIT
2
810-10855-00 DROP CABLE NMEA 2000 .5M 270300
1
800-11254-00 RELAY SPST 40A 12V
1
810-10897-00 CONNECT 50, 010-02225-10
