Electrical System
6.3 Batteries & Battery Switches
The DC electrical system on your boat is designed
for 12 volt AGM marine batteries only. The engine
batteries and house batteries are in the battery
compartment below the helm seats.
The batteries are accessed by opening the port stor-
age compartment door in the helm seat base. Then
remove the storage door retaining straps and fully
open the door to provide better access to the battery
compartment. Remove the access panel at the back
of the storage compartment to access the batteries.
Access to the fuse and breaker panel is through the
hinged access door on the front of the helm seat
base. To access the fuse and breaker panel, release
the two push to close latches and open the door.
Then Remove the quick release pins securing the
retaining straps on each side and fully open the door
to provide better access to the panel. For better
access, lift the door slightly and slide it starboard to
separate the quick release hinges. Then move the
door to a safe location.
When maintenance operations are complete, set
the door on the cockpit sole in front of the seat base
opening. Then slide the female side of the quick
release hinges on the door into the male side of
the hinges on the seat base. Then raise the door to
the normally open position and install the retaining
straps.

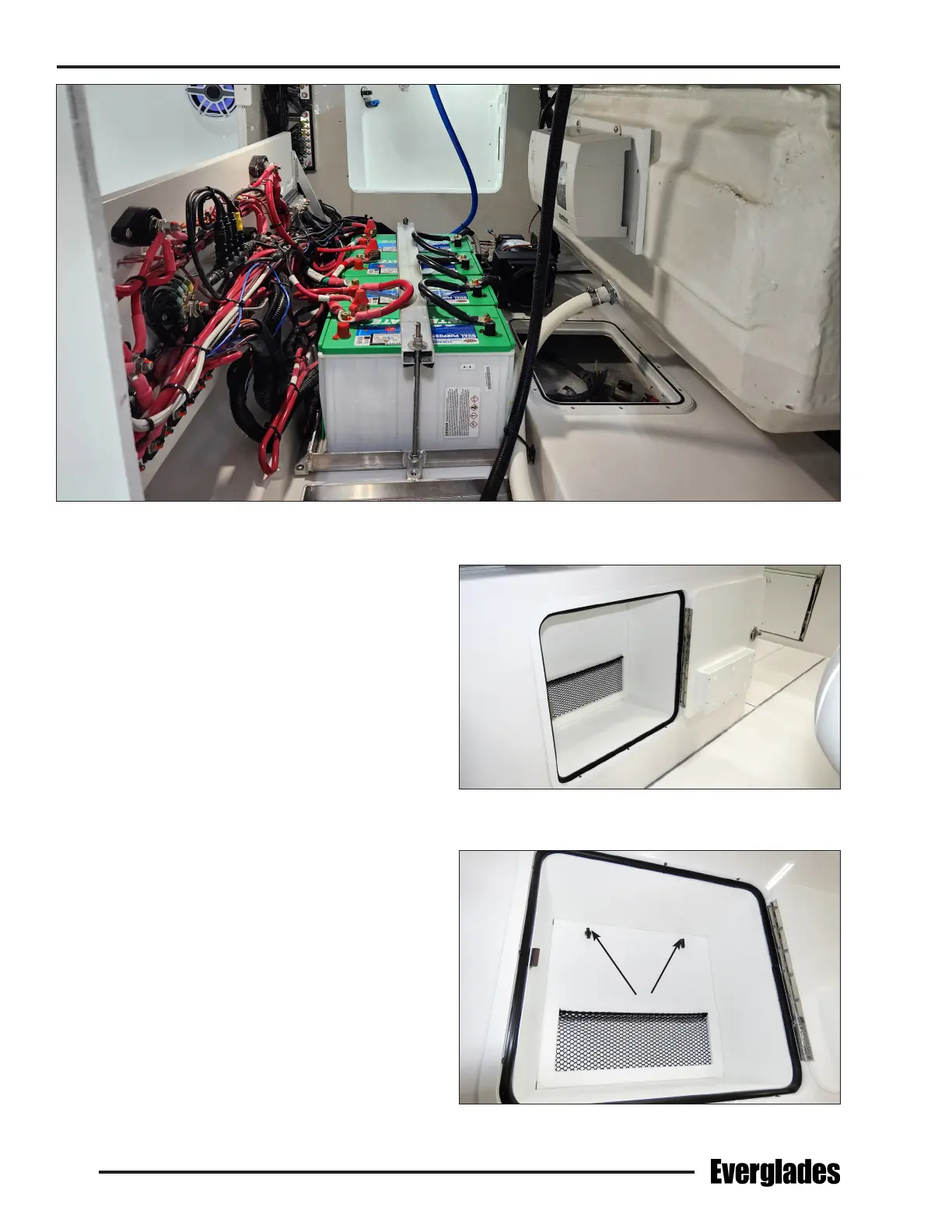

House & Engine Batteries In Compartment Below Helm Seats
Battery Compartment Access Panel & Cam Locks
Helm Seat Base Storage Compartment & Access Panel
