Everglades 335 CC - Board DCM Fwd Console Yamaha Seakeeper MY24 335 CC Sht 2

196
Schematics

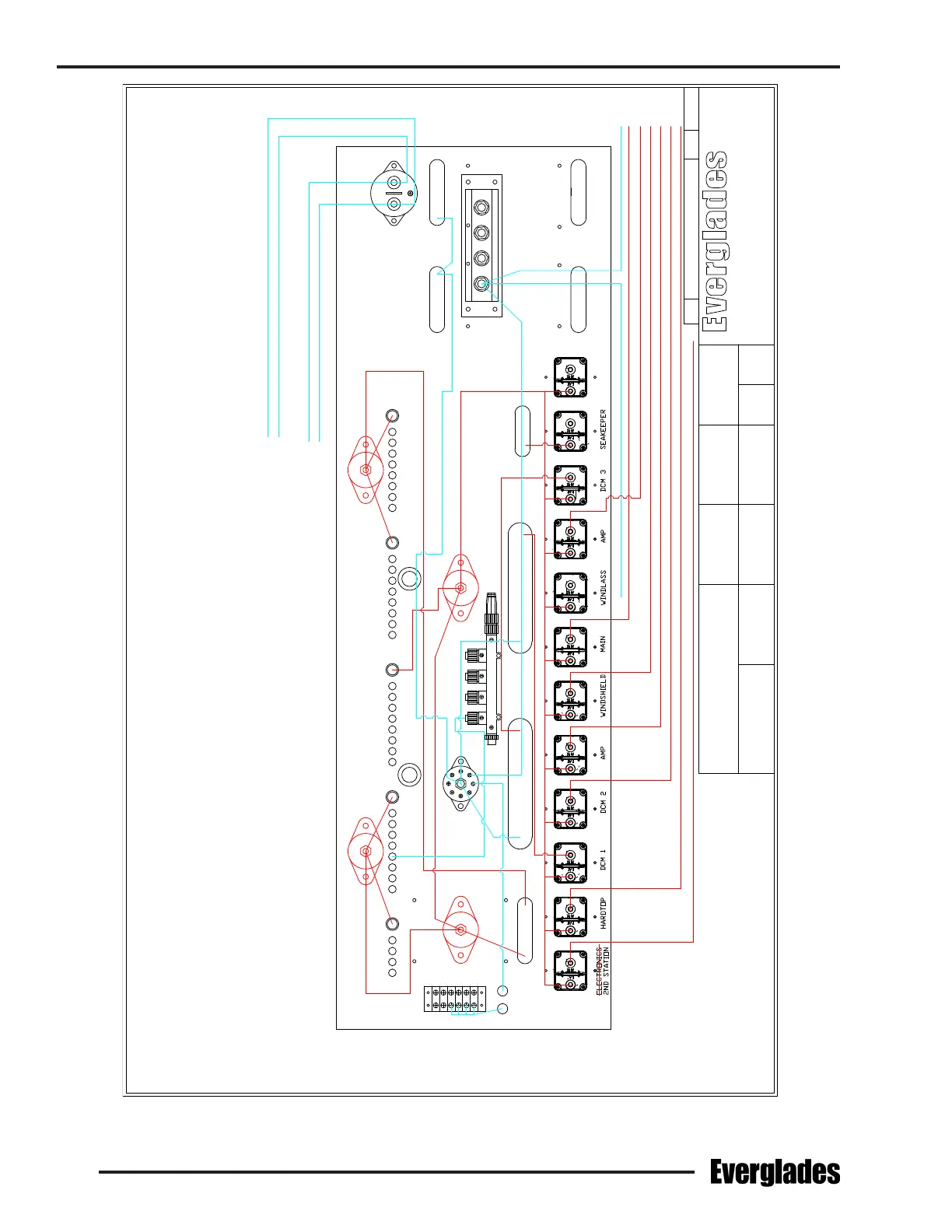

Board DCM Fwd Console Yamaha Seakeeper MY24 335CC Sht 2
APPR BY
DESCRIPTION
DATE
Scale:
Drawn by:
Appr by: Chkd by:
Sheet:
Dwg No:
Date:
Title:
Model: Part No.
X
PP
X
REV
RJ Dougherty Associates
544 S Airpark rd.
Edgewater, FL 32132-3043
386-4092202
NTS
335CC
2 OF 3
ITEM DESCRIPTION
QTY
WIRE DESCRIPTION
FEET
800-10343-00 WIRE, 6AWG UL TINNED, RED
9 3
4
800-10342-00 WIRE, 6AWG UL TINNED, BLACK 800-10345-00 WIRE, 8AWG PRIMARY RED 800-10435-00 WIRE, CABLE BATTERY RED 2AWG
8
800-10506-00 LUG CLOSED END 6AWG 3/8" 800-10508-00 800-10475-00 800-10498-00 LUG CLOSED END 2AWG 3/8"
RING CLOSED END 8AWG 3/8"
LUG CLOSED END 6AWG 5/16"
24 HR (+) 12VDC
SW ITCHED (+) 12VDC
SW ITCHED (+) 12VDC
SW ITCHED (+) 12VDC
16" 6AWG RED
6AWG RED6AWG RED6AWG RED6AWG RED
FROM HOUSE BATT SWITCH A
HOUSE BATT SWITCH A
HOUSE BATT SWITCH B
8" 8AWG RED
18" 6AWG RED
16" 6AWG RED
42" 2AWG RED
6" 2AWG RED
6" 8AWG RED
6" 8AWG RED
8" 8AWG RED
8" 8AWG RED
22" 6AWG RED
24" 14AWG BLACK
14AWG BLACK
14" 6AWG BLACK
10" 6AWG BLACK
8" 6AWG BLACK
8" 14AWG BLACK
22" 6AWG RED
3/8" EYE
36" 2OT BLACK
5/16" EYE LABLE STBD START GROUND
26" 6AWG BLACK
800-10830-00 CIRCUIT BREAKER, PANEL MOUNT, 40AMP
2
3
2
800-10837-00 CIRCUIT BREAKER, PANEL MOUNT, 50AMP 800-11179-00 CIRCUIT BREAKER, PANEL MOUNT, 60AMP
4
1
5
1
800-11178-00 FUSE BLOCK,ST BLADE COMPACT, 8 CIRCUITS 800-11322-00 800-10834-00 BUSS BAR, SINGLE POST, 3/8" 800-10835-00 BUSS BAR, SINGLE POST, W/8 POSITION 5/16"
1
810-10838-00 DCM 12V, 010-02219-03
1
810-10709-00 TERMINATOR MALE N2K
1 1
810-10853-00 GARMIN T CONNECTOR MULTI 810-10896-00 TERMINATOR FEMALE N2K
710-12342-00 BOARD ONLY, DCM FORWARD CONSOLE
1 1
400-10758-00 HARNESS PICO C4 MODULE WIRING
FUSE BLOCK,ST BLADE COMPACT, 4 CIRCUITS
1
800-11108-00 BUSS BAR, 600A (4) 3/8", 16 STUDS
1
800-11487-00 CIRCUIT BREAKER, PANEL MOUNT, 70AMP
1
800-11336-00 CIRCUIT BREAKER, PANEL MOUNT, 80AMP
2
800-11180-00 CIRCUIT BREAKER, PANEL MOUNT, 100AMP
4
800-10828-00 BATTERY SWITCH MLB 7700
1
800-11068-00 SOLENOID 250VAC
1
810-10853-00 T-CONNECTOR NMEA
1
810-10660-00 NMEA N2K STARTER KIT
2
810-10855-00 DROP CABLE NMEA 2000 .5M 270300
1
800-11254-00 RELAY SPST 40A 12V
1
810-10897-00 CONNECT 50, 010-02225-10
160" 6AWG RED
LABLE CONSOLE FUSEBLOCK #10 RING
160" 6AWG BLACK LABLE CONSOLE FUSEBLOCK #10 RING
3/8" EYE STBD START BATTERY (+)
36" 2 OT RED 18" 2 OT RED
3/8" EYE PORT START BATTERY (+)
3/8" EYE PORT BATTERY SWITCH A
24" 2 OT RED
18" 2 OT RED
3/8" EYE STBD BATTERY SWITCH A
Board, DCM Fwd Console, Yamaha,
Seakeeper, MY24, 335CC
410-50071-00
42" 4AWG RED
LABLE WINDSHIELD DTHD06-1-S
120" 4AWG RED
LABLE HARDTOP AMP DTHD06-1-S
122" 4AWG RED
LABLE DCM #002 DTHD06-1-S
124" 4AWG RED
LABLE HARDTOP DTHD06-1-S
24" 4AWG RED
LABLE 800-8 AMP DTHD06-1-S
126" 4AWG RED
LABLE 2ND STATION DTHD06-1-S
