Electrical System

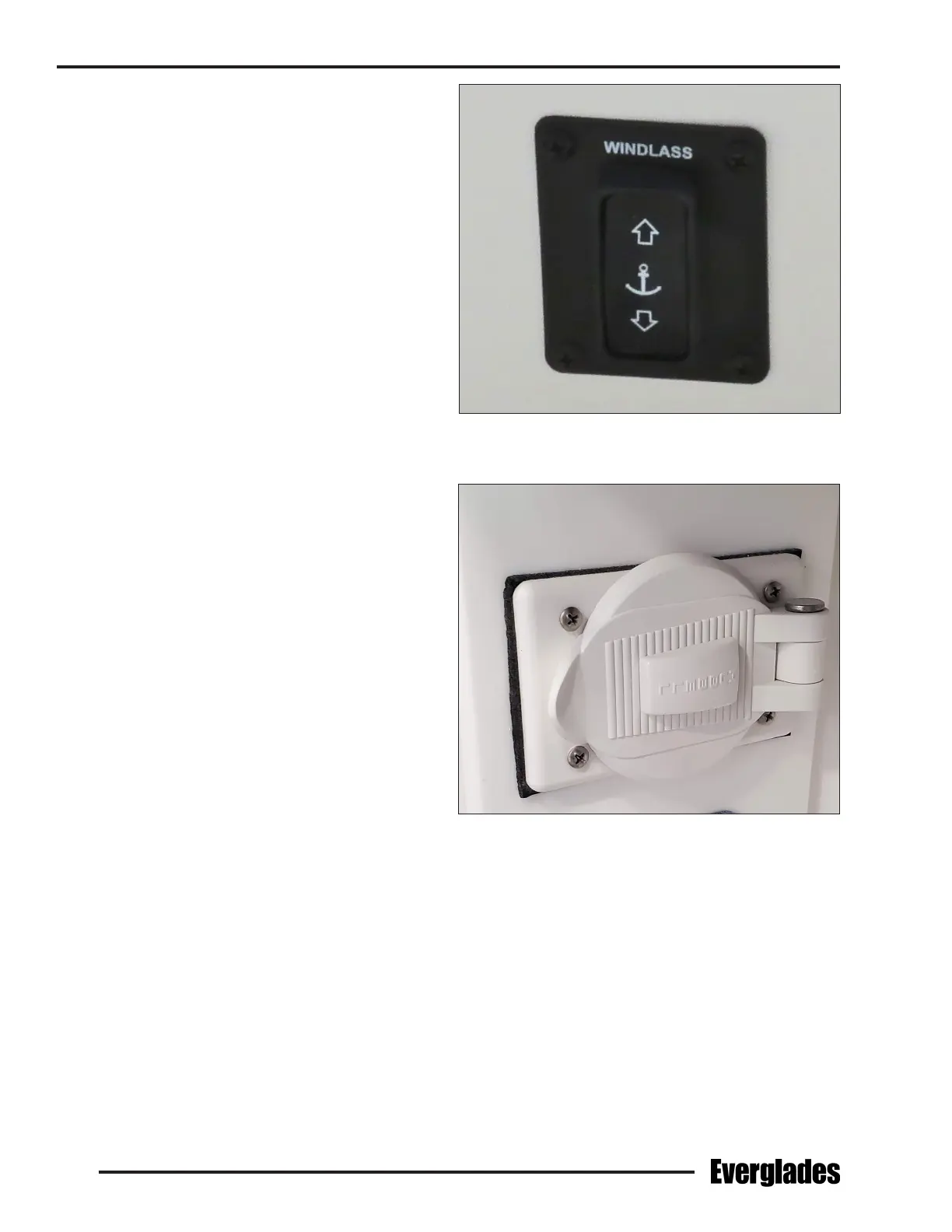

Windlass Switch
Typical Power Port
Windlass Switch
A three position momentary switch located in the
windlass compartment that controls the windlass.
The middle position is OFF. Press and hold the
switch UP to raise the anchor. Press and hold
the switch DOWN to lower the anchor. The switch
automatically returns to the middle (OFF) position
when it is released.
The primary windlass circuit is protected by a
heavy duty circuit breaker located on the fuse
and breaker panel in the battery compartment.
Another circuit breaker in the digital switching con-
trol module protects the windlass switch circuits.
Power Ports (Optional)
A 12 volt power port is located below the aft gun-
nel on each side of the cockpit. The power ports
provide a 12 volt DC power connection for down
riggers or electric reels. Each power port requires
a special twist lock plug to be installed on the
power cord of the accessory. One plug for each
port was included with your boat. Additional plugs
can be ordered through your dealer.
The power ports are protected by fuses located in
the accessory fuse panel on the fuse and breaker
panel in the battery compartment..
