NO. DESCRIPTION QTY
20
HEX BOLT (M10 x 60mm)
1
23
FLAT WASHERS (M8)
1
25
FLATWASHERS (M10)
2
26
NYLON LOCKNUT (M8)
1
29
NYLON LOCKNUT (M10)
1
31
SPRING COLLAR
1
45
CARRIAGE BOLTS (M8 x 45mm)
1
49
Nut Cap (M10)
2

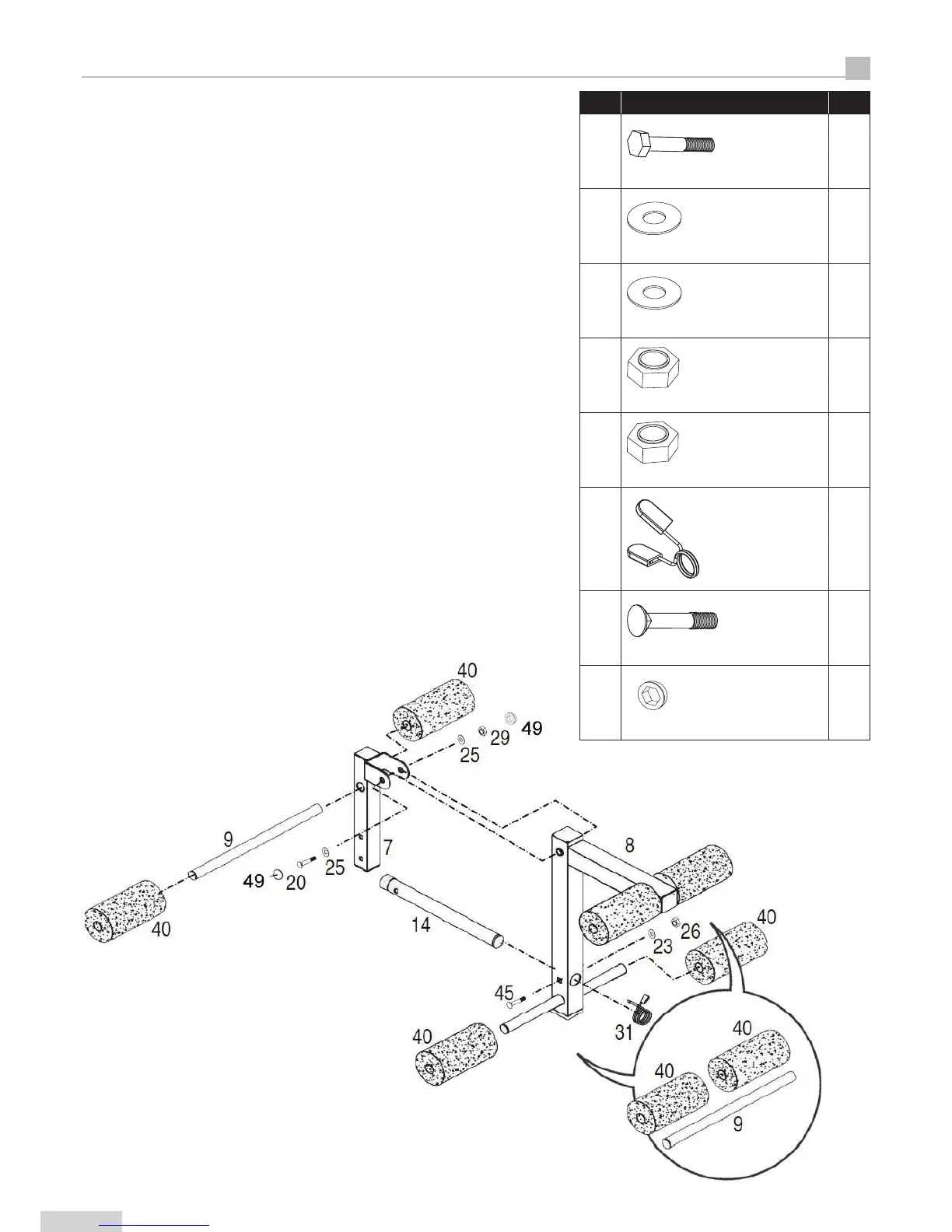

ASSEMBLY STEPS
STEP 8
• Assemble the Leg Extension (8) to the Leg Extension
Support (7) using an M10 x 60mm Hex Bolt (20), two M10
Flat Washers (25) and an M10 Nylon Locknut (29) bolted
from the side. Then Put two Nut caps (49) onto the M10 x
60mm Hex Bolt (20) and an M10 Nylon Locknut (29)
• Fit the Leg Extension Weight Disc Post (14) to the Leg
Extension (8) using an M8 x 48mm Carriage Bolt (45),
an M8 Flat Washer (23) and an M8 Nylon Locknut (26).
Tighten securely and fit Spring Collar (31) by squeezing
the 2 rubber pads together and sliding over end of Weight
Disc Post (14).
• Slide a Foam Roller (40) onto one end of a Foam Roller
Post (9) and fit into position on the Leg Extension (8) and
Leg Extension Support (7). Slide the remaining Foam
Roller (40) onto the Foam Roller Post (9).
14
