NO. DESCRIPTION QTY
17
CARRIAGE BOLT (M8 x 50mm)
4
23
FLAT WASHER (M8)
4
26
NYLON LOCKNUT (M8)
4
ASSEMBLY STEPS
Before commencing assembly, please ensure all parts are present.
If any parts are missing please contact the Help Line Number at the
bottom of the page.
STEP 1
COMPLETE EACH STAGE IN ORDER BEFORE ADVANCING ON TO THE NEXT.
ASSEMBLE WITH NUTS AND BOLTS LOOSE AT FIRST.
TIGHTEN ALL BOLTS AND NUTS AFTER COMPLETING ALL ASSEMBLY STEPS.

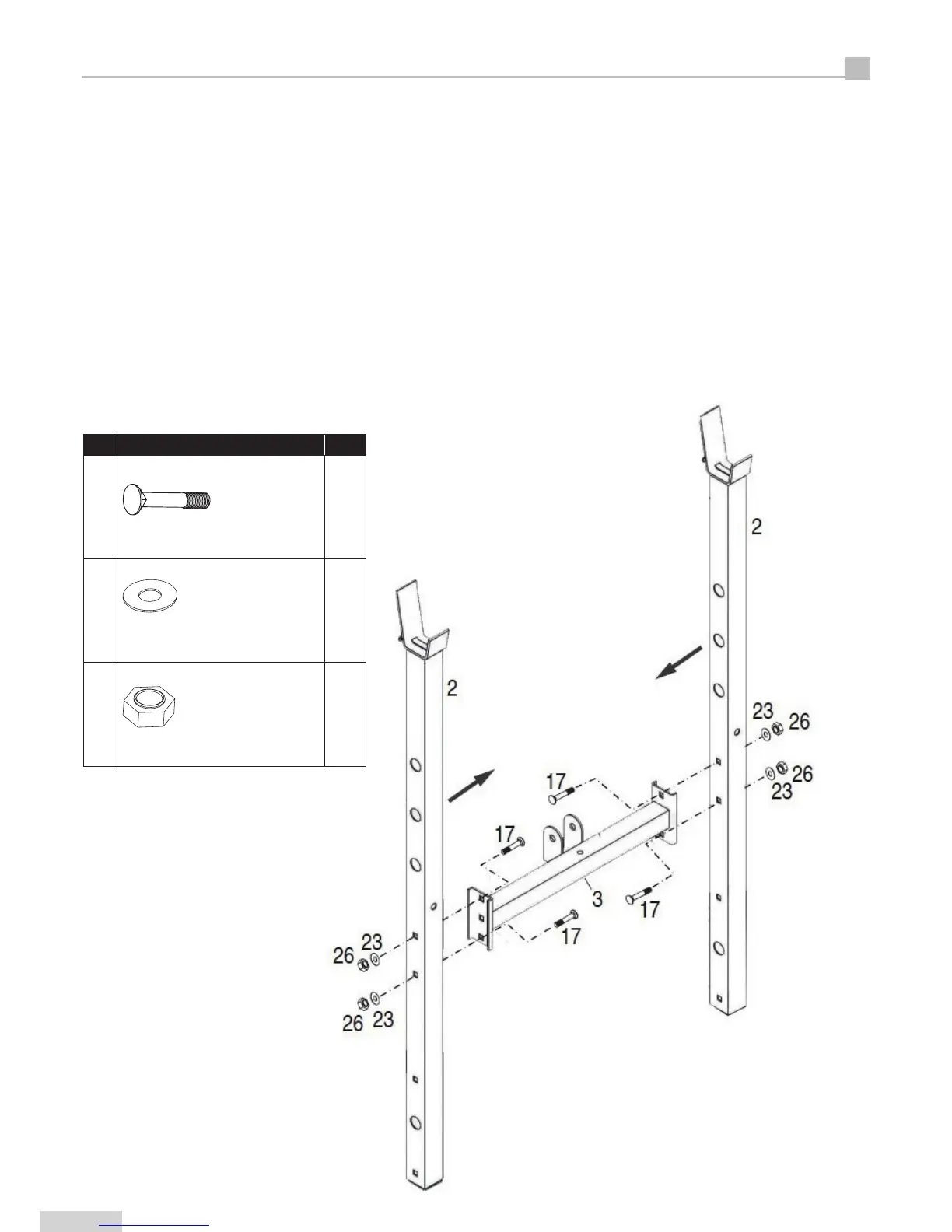

• Connect both Uprights (2) to the Cross Support (3) using four M8 x 50mm Carriage Bolts
(17), fitted from the inside as per illustration, four M8 Flat Washers (23) and four M8 Nylon
Locknuts (26).
6
