NO. DESCRIPTION QTY
17
CARRIAGE BOLT (M8 x 50mm)
2
23
FLAT WASHER (M8)
6
26
NYLON LOCKNUT (M8)
6
30R
SAFETY HOOK
1
30L
SAFETY HOOK
1
44
CARRIAGE BOLT (M8 x 85mm)
2
45
CARRIAGE BOLT (M8x45mm)
2
47
LOCKNUT
2
48
WASHER
2

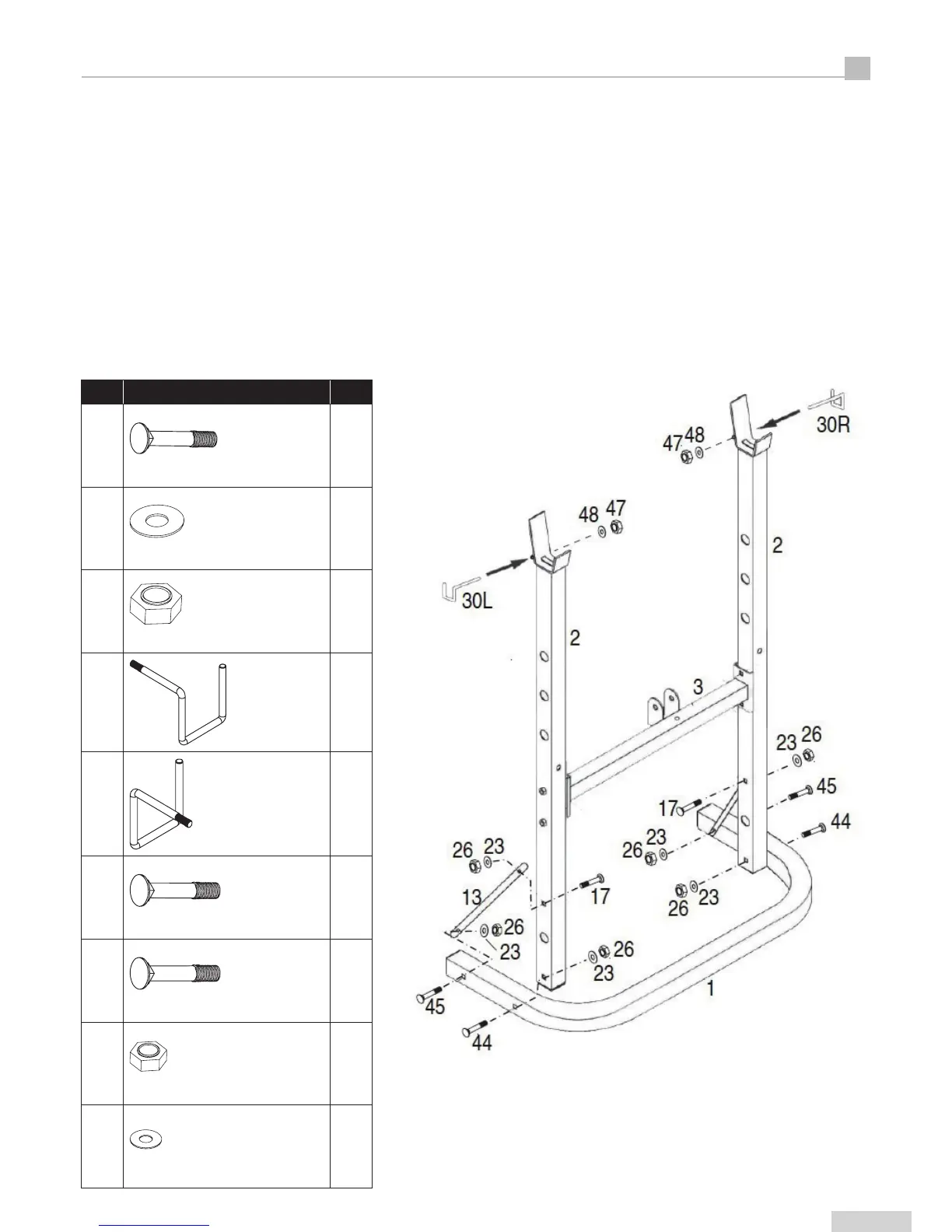

STEP 2
• Place both Uprights (2) on the inside of the Rear Stabilizer (1) and secure in place using M8
x 85mm Carriage Bolts (44) fitted from the outside, M8 Flat Washers (23) and M8 Nylon
Locknuts (26).
• Now attach both Stabilizer Brackets (13) to the inside of the Rear Stabilizer (1) and to the
outside of both Uprights (2) using M8 x 50mm Carriage Bolts (17), and M8 x 45mm Carriage
Bolts (45), four M8 Flat Washers (23) and four M8 Nylon Locknuts (26).
• Attach the Safety Hook (30L & 30R) to the both Uprights (2). Using two Washers (48) and two
Locknuts (47). As shown.
ASSEMBLY STEPS
7
