ASSEMBLY STEPS
STEP 10
• Slide a Butterfly Arm foam Roller Poster (50) into each
Butterfly Arm (51) and fix into place using two M8 x
45mm Carriage Bolt (45), two M8 Flat Washer (23) and
two M8 Nylon Locknut (26), now slide Foam Roller (40)
onto each Butterfly Arm Foam Roller Post (50).
• Fit a Butterfly Arm Weight Support (14) to each side
of Butterfly Arm (51), using two M8 x 45mm Carriage
Bolt (45), two M8 Flat Washer (23) and two M8 Nylon
Locknut (26) and slide on the Spring Collar (31).
• Pass an M10 x 125mm Hex Bolt (54) through an M10
Flat Washer (25) and then through the front face of an
assembled Butterfly Arm (51). Slide on a Plastic Spacer
(57) , a Bolt Bushing (55) then through the Upright (2),
a Bolt Bushing (55), M10 Flat Washer (25) and M10
Locking Knob (Female) (56).
• Put each M10 Nut Cap (49) onto M10 Hex Bolts (54).

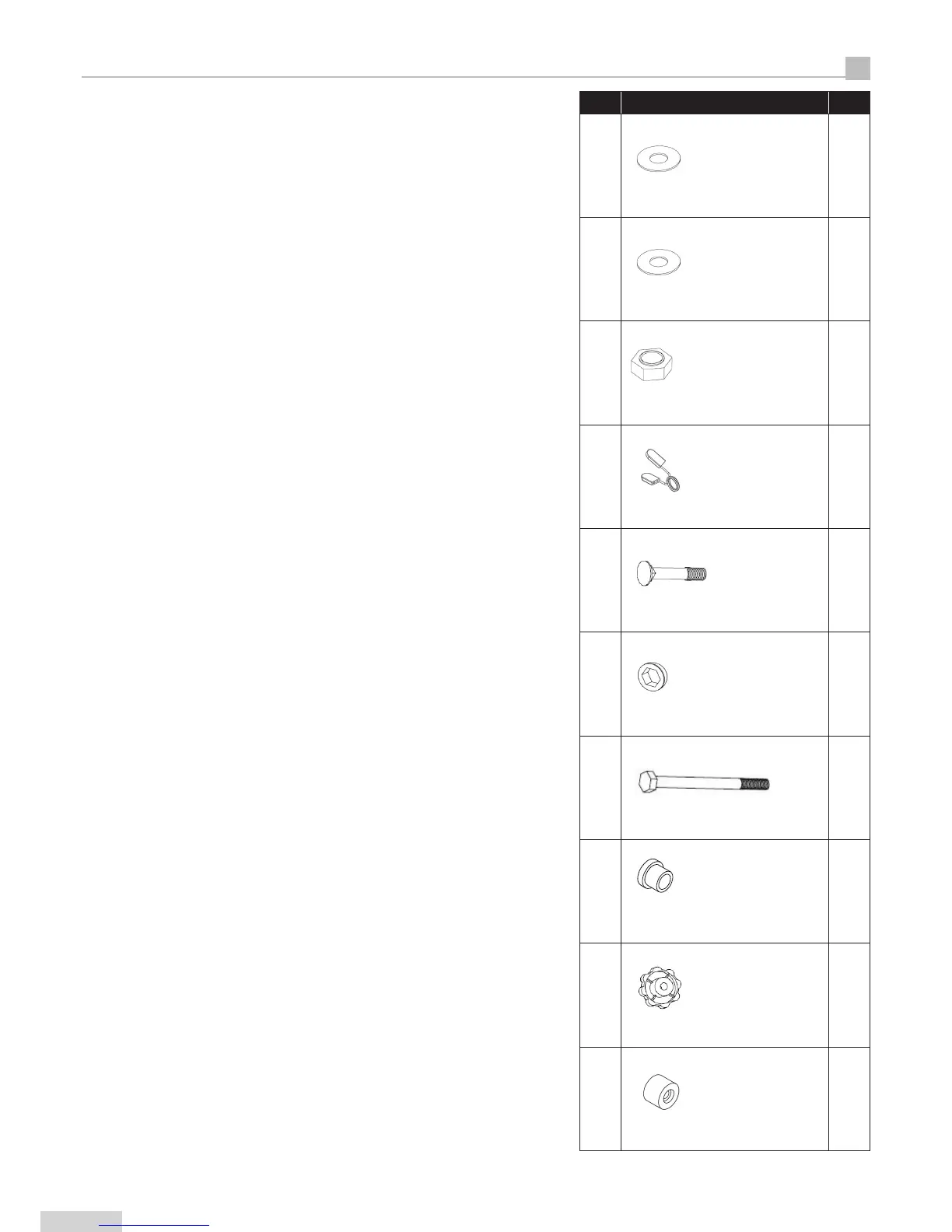

NO. DESCRIPTION QTY
23
FLAT WASHER (M8)
4
25
FLAT WASHER (M10)
4
26
NYLON LOCKNUT (M8)
4
31
SPRING COLLAR
2
45
CARRIAGE BOLT (M8 X 45MM)
4
49
Nut Cap (M10)
2
54
HEX BOLT (M10 x 125mm)
2
55
BUTTERFLY ARM SUPPORT
BUSHINGS
4
56
LOCKING KNOB (MALE M10)
2
57
PLASTIC SPACER
2
16
