Everlast EV1000 - Page 12

61
16
76
83
78
5
61
78
32
4
33
7
72
78
61
54
76
83
78
61
12

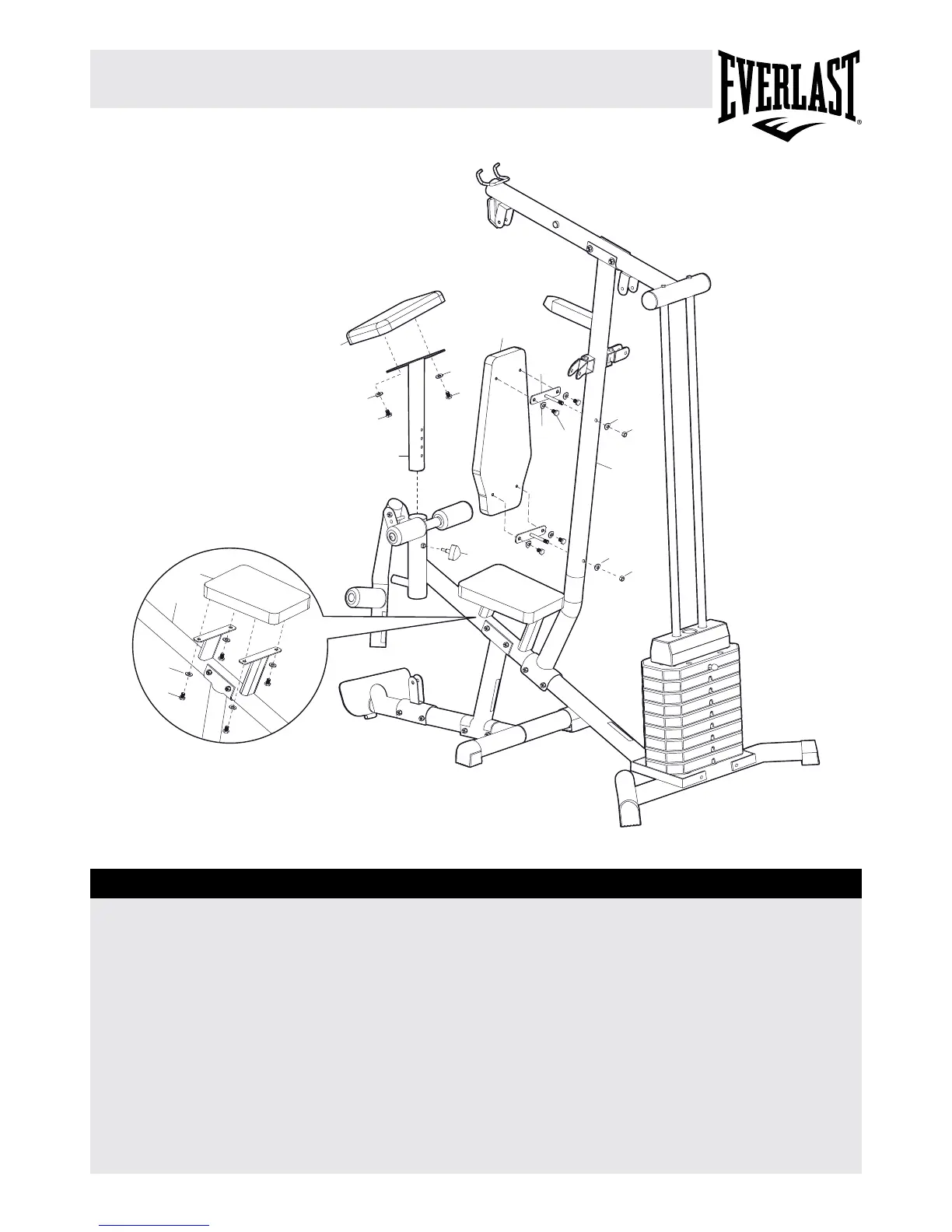

Step 7
a: Attach the Seat Cushion (32) to
the Set Support Tube (4) using 2
sets x Hex Bolt (61) and Washer
(78).
b: Attach the Arm Curl Cushion (7)
to the Arm Curl Tube (7) using 2pcs
x Hex Bolt (61) and Washer (78).
Insert Arm Curl Tube (7) into the
Seat Support Tube (4) fix the Knob
(54).
Assembly Instructions
a:
c:
b:
c: Attach the Bracket for Backrest
(16) to the Backrest Cushion (33)
using 4 sets x Hex Bolt (61) and
Washer (78).
Attach the Bracket for Backrest (16)
to the Upright Support Tube (5)
using the 2 sets x Arc Washer (76)
and Nylon Nut (83).
